Asus ROG Strix 1200W Platinum PCIe 5.0 ATX 3.1 Gaming Power Supply
ROG STRIX 1200W Platinum
ROG Strix 1200W Platinum is a cool and quiet PSU with stable power delivery, engineered for efficiency with GaN MOSFET and intelligent stabilizer in striking style.
- GaN MOSFET delivers superior power efficiency by up to 30% and a more organized internal layout for cooler operation.
- "GPU-FIRST" voltage sensing with patented-intelligent voltage stabilizer enhances voltage delivery by up to 45% to your graphics card for smoother gameplay and unwavering performance.
- Large ROG heatsinks cover critical components, delivering lower temperatures and noise than reference designs.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- 0dB technology lets you enjoy light gaming in relative silence.
- ATX 3.1 compatible: ROG Strix Platinum is compliant with ATX 3.1 standard, ensuring enhanced voltage and current regulation.
- PCIe 5.0 Ready: ROG Strix Platinum features a native 12V-2x6 connector for next-gen graphics card power.
- 80 PLUS platinum certified: ROG Strix Platinum utilizes low-ESR capacitors and premium components for industry-leading power efficiency.
The ROG Strix Platinum PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring next-gen GaN MOSFET for superior power efficiency. The “GPU-FIRST” voltage sensing with patented-intelligent voltage stabilizer ensures a steady flow of power to the graphics card. Plus, it is ready for latest hardwares with ATX 3.1 compliance and a native 12V-2x6 connector. The ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.
Specification:
| Model | ROG STRIX 1200W Platinum |
| Intel Form Factor |
ATX12V |
| PFC Type |
Active PFC |
| ATX Standard |
ATX 3.1 |
| Dimensions | 150 x 150 x 86 mm |
| Efficiency |
80Plus Platinum |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features |
OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials |
ROHS |
| AC Input Range |
100-240Vac |
| DC Output Voltage |
+3.3V +5V +12V -12V +5Vsb |
| Maximum Load |
25A 25A 100A 0.3A 3A |
| Combined Load |
130W 130W 1200W 3.6W 15W |
| Total Output |
1200W |

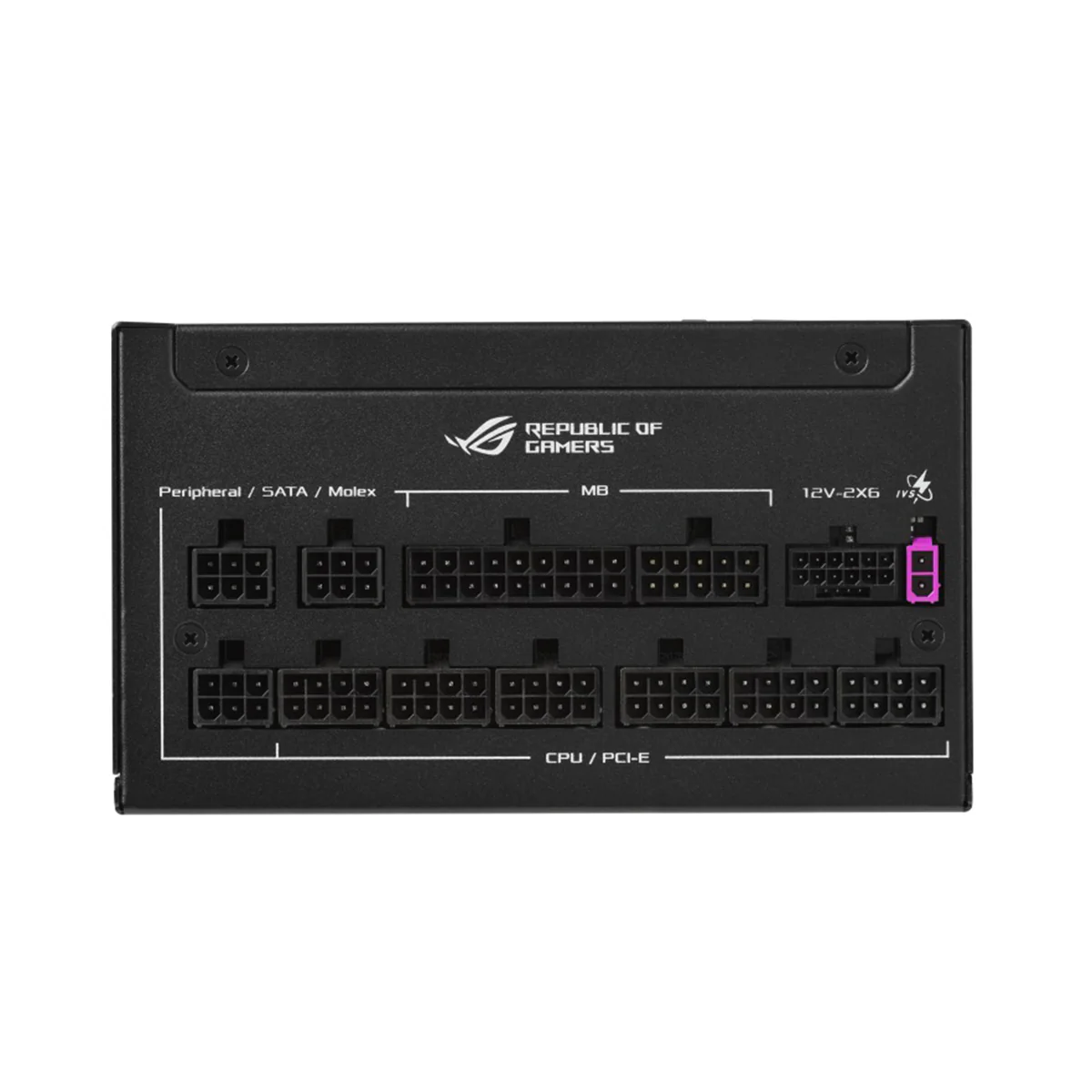

| Cable Connectors |
MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & component side) PCI-E 6+2-pin x 4 SATA x 6 PERIPHERAL x 3 |
| Package Contents |
Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) PCI-E Gen 5 (16-pin-to-16-pin) Cable x 1 (750mm) PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm) SATA 1-to-3 Cable x 2 (400+120+120mm) Peripheral 1-to-3 Cabel x 1 (400+150+150mm) ROG Strix DIY sticker x 1 User Manual x 1 |
| Weight | 2.94 kg (single PSU) |
| Cybenetics Noise Level Certification | TBD |
| 0dB Technology | Supported. The fan shuts off entirely when the PSU is under certain load |
| 0dB Fan Button | Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels. |
$77.91
Original: $259.70
-70%Asus ROG Strix 1200W Platinum PCIe 5.0 ATX 3.1 Gaming Power Supply—
$259.70
$77.91
Description
ROG STRIX 1200W Platinum
ROG Strix 1200W Platinum is a cool and quiet PSU with stable power delivery, engineered for efficiency with GaN MOSFET and intelligent stabilizer in striking style.
- GaN MOSFET delivers superior power efficiency by up to 30% and a more organized internal layout for cooler operation.
- "GPU-FIRST" voltage sensing with patented-intelligent voltage stabilizer enhances voltage delivery by up to 45% to your graphics card for smoother gameplay and unwavering performance.
- Large ROG heatsinks cover critical components, delivering lower temperatures and noise than reference designs.
- Dual ball fan bearings can last up to twice as long as sleeve bearing designs.
- 0dB technology lets you enjoy light gaming in relative silence.
- ATX 3.1 compatible: ROG Strix Platinum is compliant with ATX 3.1 standard, ensuring enhanced voltage and current regulation.
- PCIe 5.0 Ready: ROG Strix Platinum features a native 12V-2x6 connector for next-gen graphics card power.
- 80 PLUS platinum certified: ROG Strix Platinum utilizes low-ESR capacitors and premium components for industry-leading power efficiency.
The ROG Strix Platinum PSU delivers the top-tier performance and unwavering stability demanded by gamers. Featuring next-gen GaN MOSFET for superior power efficiency. The “GPU-FIRST” voltage sensing with patented-intelligent voltage stabilizer ensures a steady flow of power to the graphics card. Plus, it is ready for latest hardwares with ATX 3.1 compliance and a native 12V-2x6 connector. The ROG Strix Platinum Series ensures your high-end rig has the power to conquer any challenge.
Specification:
| Model | ROG STRIX 1200W Platinum |
| Intel Form Factor |
ATX12V |
| PFC Type |
Active PFC |
| ATX Standard |
ATX 3.1 |
| Dimensions | 150 x 150 x 86 mm |
| Efficiency |
80Plus Platinum |
| MTBF | >120,000 hrs @ 25°C |
| Protection Features |
OPP/OVP/UVP/SCP/OCP/OTP |
| Hazardous Materials |
ROHS |
| AC Input Range |
100-240Vac |
| DC Output Voltage |
+3.3V +5V +12V -12V +5Vsb |
| Maximum Load |
25A 25A 100A 0.3A 3A |
| Combined Load |
130W 130W 1200W 3.6W 15W |
| Total Output |
1200W |
| Cable Connectors |
MB 24/20-pin x 1 CPU 4+4-pin x 2 PCI-E 16-pin x 1 (both PSU & component side) PCI-E 6+2-pin x 4 SATA x 6 PERIPHERAL x 3 |
| Package Contents |
Power Cord x 1 Motherboard Power Cable x 1 (610mm) CPU Cable x 2 (1000mm) PCI-E Gen 5 (16-pin-to-16-pin) Cable x 1 (750mm) PCI-E (8-pin-to-6+2pin) Cable x 4 (750mm) SATA 1-to-3 Cable x 2 (400+120+120mm) Peripheral 1-to-3 Cabel x 1 (400+150+150mm) ROG Strix DIY sticker x 1 User Manual x 1 |
| Weight | 2.94 kg (single PSU) |
| Cybenetics Noise Level Certification | TBD |
| 0dB Technology | Supported. The fan shuts off entirely when the PSU is under certain load |
| 0dB Fan Button | Yes. When the Button is ON, the fan will only spin up when the system reaches a certain load. When the Button is OFF, the fan will continuously spin at all load levels. |
