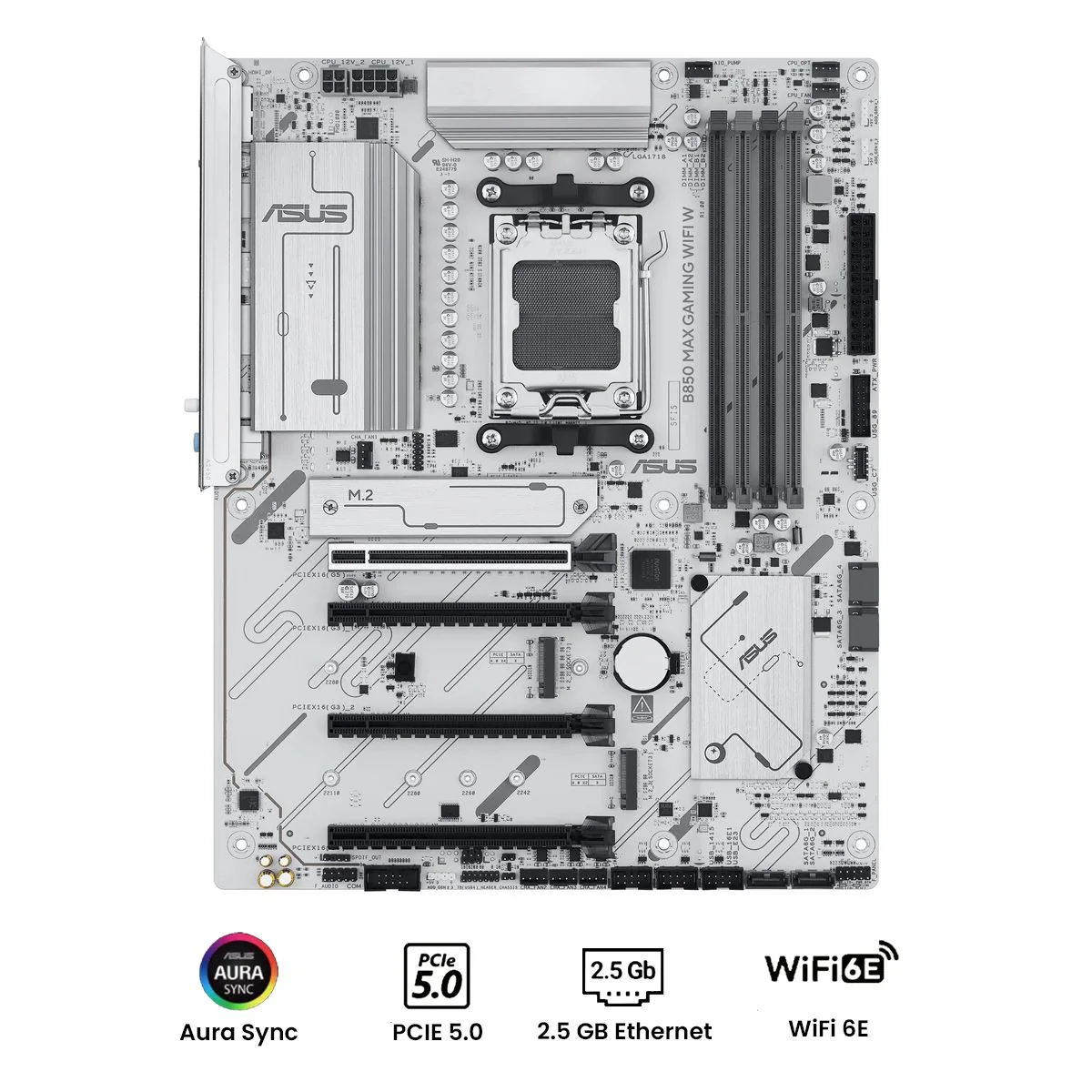

ASUS B850 Max Gaming Wifi W DDR5 Motherboard

ASUS B850 Max Gaming Wifi W DDR5 Motherboard

ASUS B850 Max Gaming Wifi W DDR5 Motherboard

B850 MAX GAMING WIFI W motherboards are expertly engineered to unleash the full potential of AMD Ryzen™ 9000 series processors. The B850 MAX GAMING WIFI W motherboard provides users and PC DIY builders with a range of performance optimizations via intuitive software and firmware features. It’s designed to be Advanced AI PC-ready, offering the power and connectivity needed for demanding AI applications.

Specification

Model B850 MAX GAMING WIFI W
CPU & CHIPSET
Socket AMD AM5 (Ryzen™ 9000, 8000, 7000 Series)
Chipset AMD B850
MEMORY
Slots 4 x DIMM, Dual Channel Max Capacity 256GB DDR5
OC Support Up to 8000+ MT/s (EXPO™, AEMP)
ECC Support Yes (Non-ECC unbuffered with On-Die ECC)
GRAPHICS
Display Outputs 1 x HDMI 2.1 (4K@60Hz), 1 x DisplayPort 1.4 (8K@30Hz)
EXPANSION
Slots
  • 1 x PCIe 5.0 x16 (Ryzen 9000/7000)
  • 1 x PCIe 4.0 x16 (Ryzen 8000, x8/x4 mode)
  • 1 x PCIe 4.0 x16 (x4 from chipset)
  • 2 x PCIe 3.0 x16 (x1 mode, shares bandwidth with SATA6G_1/2)
STORAGE
M.2 Slots
  • M.2_1: PCIe 5.0 x4 (2280)
  • M.2_2: PCIe 4.0 x4 (2280)
  • M.2_3: PCIe 4.0 x2 (2242–22110)
SATA Ports 4 x SATA 6Gb/s
RAID Support RAID 0/1/5/10 (Ryzen 9000), RAID 0/1 (Ryzen 8000), RAID 0/1/10 (Ryzen 7000)
NETWORKING
Ethernet Realtek 2.5Gb LAN with ASUS LANGuard
Wireless Wi-Fi 6E (2x2, 2.4/5/6GHz) + Bluetooth 5.3
USB PORTS
Rear
  • 1 x USB 10Gbps Type-C
  • 3 x USB 10Gbps Type-A
  • 2 x USB 5Gbps Type-A
  • 2 x USB 2.0 Type-A
Front
  • 1 x USB 5Gbps Type-C
  • 1 x USB 5Gbps header (2 ports)
  • 3 x USB 2.0 headers (6 ports)
AUDIO
Codec Realtek 7.1 Surround, up to 24-bit/192kHz
Features
  • Jack detection, Multi-streaming, Audio shielding
  • Premium audio capacitors, Separate PCB layers
BACK PANEL I/O
  • 1 x USB 10Gbps Type-C
  • 3 x USB 10Gbps Type-A
  • 2 x USB 5Gbps Type-A
  • 2 x USB 2.0 Type-A
  • 1 x HDMI, 1 x DisplayPort
  • 1 x Realtek 2.5Gb LAN
  • 3 x Audio jacks
  • 1 x BIOS FlashBack™ button
INTERNAL I/O
  • 1 x CPU Fan, 1 x CPU OPT, 1 x AIO Pump, 4 x Chassis Fan
  • 1 x 24-pin Power, 1 x 8-pin +12V CPU, 1 x 4-pin +12V CPU
  • 3 x M.2, 4 x SATA
  • 1 x USB 5Gbps Type-C, 1 x USB 5Gbps (2 ports), 3 x USB 2.0 (6 ports)
  • 3 x ARGB Gen2 headers, Clear CMOS, COM port, S/PDIF, SPI TPM, Thunderbolt header
SPECIAL FEATURES
Protection ASUS 5X PROTECTION III (DIGI+ VRM, LANGuard, Overvoltage, SafeSlot, Stainless-steel I/O)
Q-Design Q-Antenna, Q-DIMM, Q-LED Core, Q-Slot, Q-Dashboard
Cooling Flexible M.2 heatsinks, VRM heatsink
DIY Features Pre-mounted I/O, BIOS FlashBack™ button/LED, SafeSlot
RGB Aura Sync, ARGB Gen2 Headers
SOFTWARE
ASUS Apps Armoury Crate, Aura Creator, Fan Xpert 2+, GlideX, AI Advisor, Driver Hub, TurboV Core, ASUS CPU-Z
3rd Party Norton 360 (60 days), WinRAR (40 days)
BIOS
Type 256Mb Flash ROM, UEFI AMI BIOS
EZ DIY CrashFree BIOS 3, EZ Flash 3, UEFI EZ Mode, MyHotkey
FORM FACTOR
Type ATX Size 30.5 x 24.4 cm (12 x 9.6 in)
ACCESSORIES
  • 2 x SATA cables
  • ASUS WiFi Q-Antenna
  • M.2 rubber & 3 x screw packages
  • Quick start guide
$223.48
