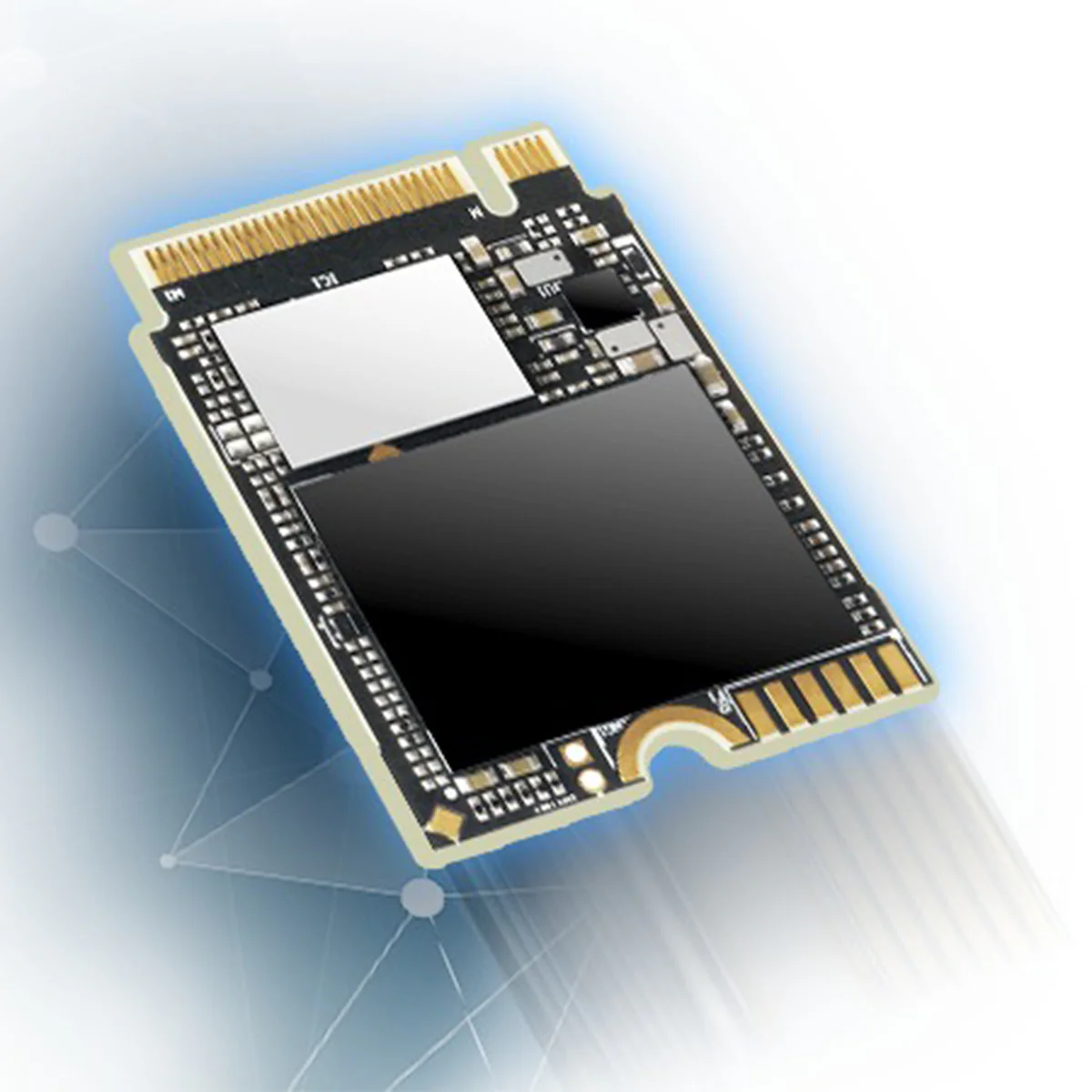

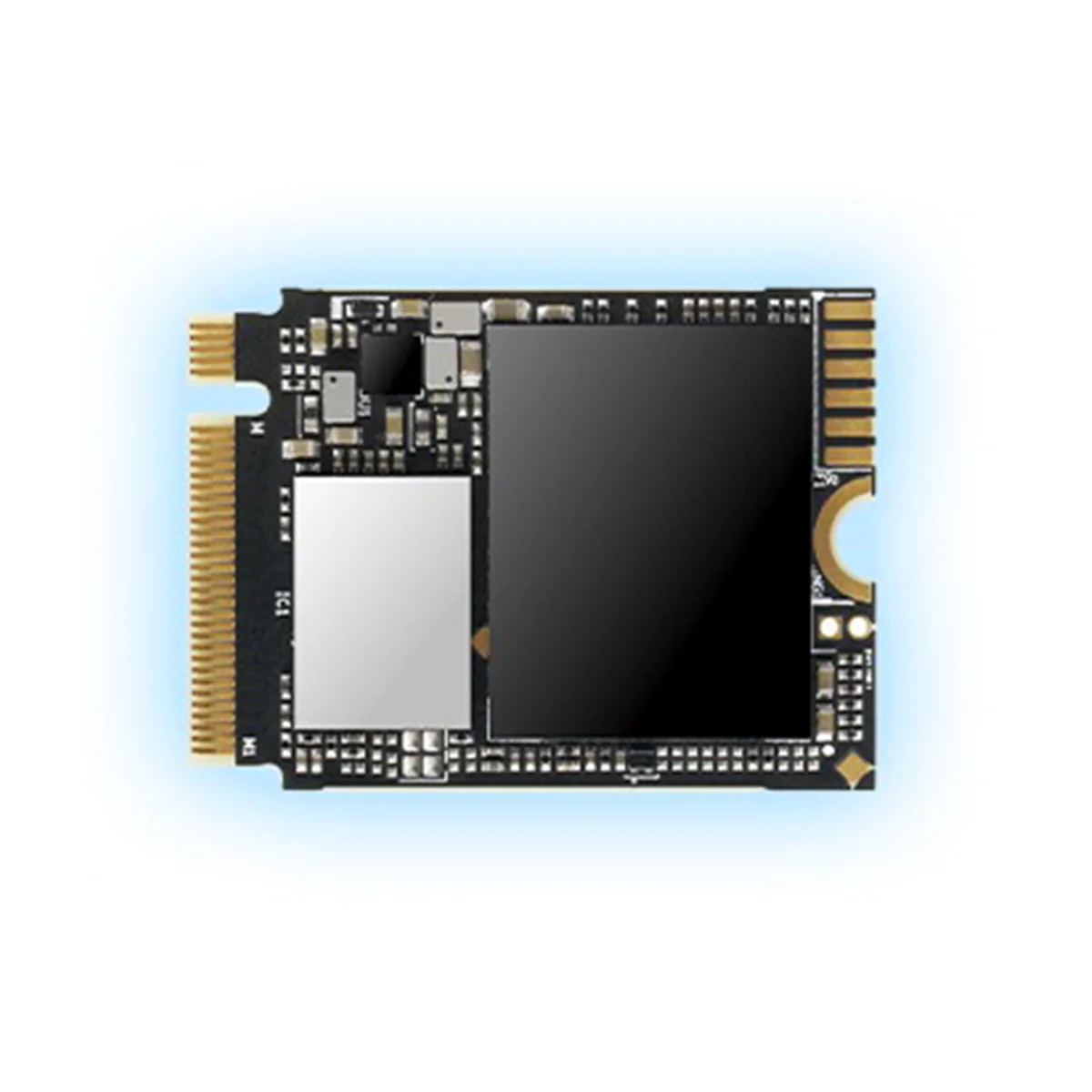

Transcend 310S M.2 2230 PCIe Gen4 x4 Internal SSD (512GB, 1TB, 2TB), (TS512GMTE310S, TS1TMTE310S, TS2TMTE310S)
Transcend 310S M.2 2230 PCIe Gen4 x4 Internal SSD (512GB, 1TB, 2TB), (TS512GMTE310S, TS1TMTE310S, TS2TMTE310S)
SPECIFICATION
| Appearance | |
| Type | M.2 2230 |
| Dimensions | 30.0 mm x 22.0 mm x 2.38 mm (1.18" x 0.87" x 0.09") |
| Weight | 4 g (0.14 oz) |
| Interface | |
| Bus Interface | NVMe PCIe Gen4 x4 |
| Storage | |
| Flash Type | 3D NAND flash |
| Capacity | 512 GB/ |
| Operating Environment | |
| Operating Temperature | 0°C (32°F) ~ 70°C (158°F) |
| Operating Voltage | 3.3V±5% |
| Performance | |
| Sequential Read/Write (CrystalDiskMark) | Up to 3,300/1,700 MB/s |
| 4K Random Read/Write (IOmeter) | Up to 119,000/395,000 IOPS |
| Terabytes Written (TBW) | 300 TBW |
| Mean Time Between Failures (MTBF) | 2,000,000 hour(s) |
| Note | Speed may vary due to host hardware, software, usage, and storage capacity. |
| The workload used to rate DWPD may be different from your actual workload, which may vary due to host hardware, software, usage, and storage capacity. | |
| Terabytes Written (TBW) expresses the endurance under the highest capacity. | |
| Some motherboards only provide PCIe x2 connections for the M.2 slot, creating a bottleneck on even the fastest drives. | |
| System Requirement | |
| Operating System | Microsoft Windows 7 or later |
| Linux Kernel 2.6.31 or later | |
| Technology | |
| S.M.A.R.T. | Check |
| Advanced Garbage Collection | Check |
| RAID Engine | - |
| LDPC Coding | Check |
| DRAM Cache | - |
