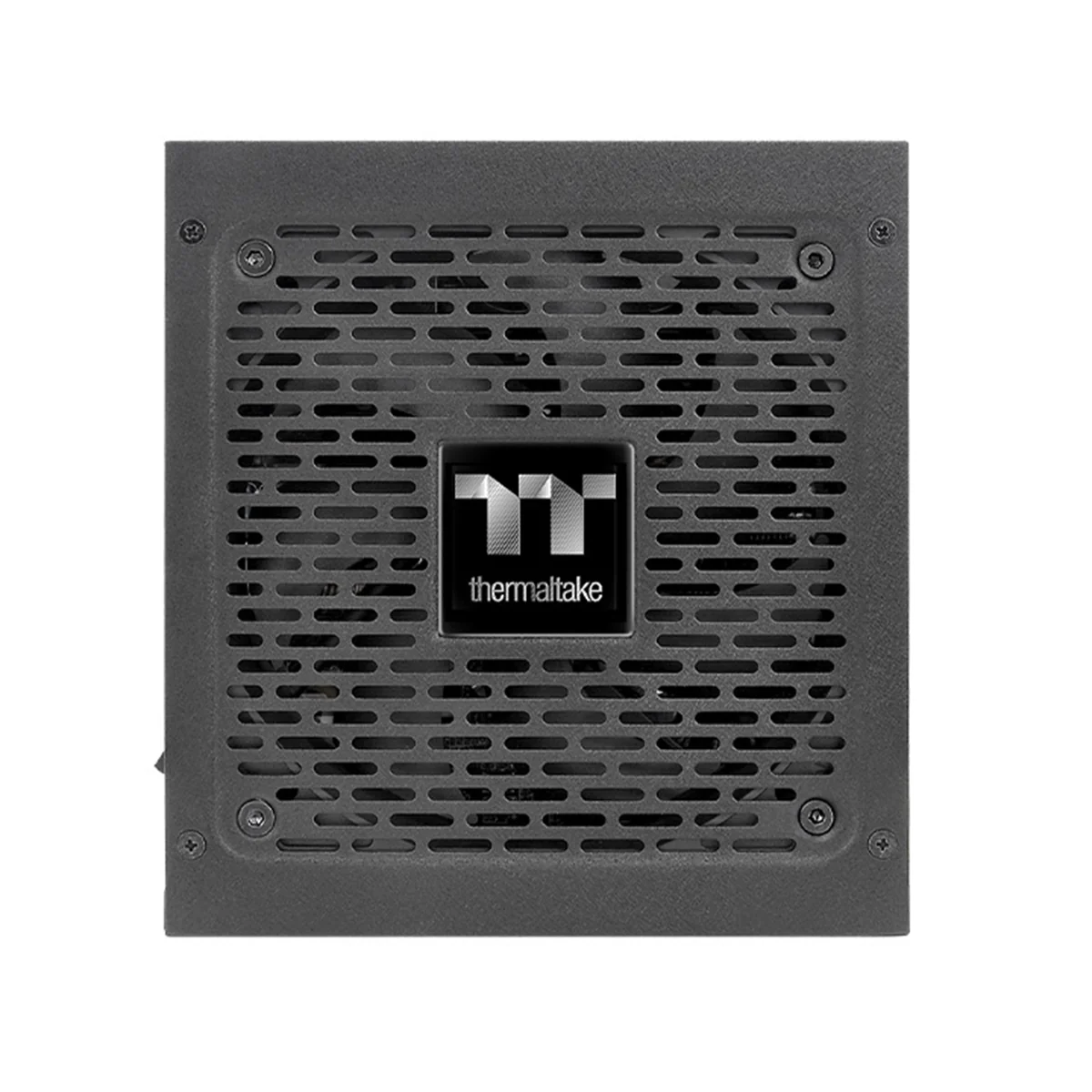

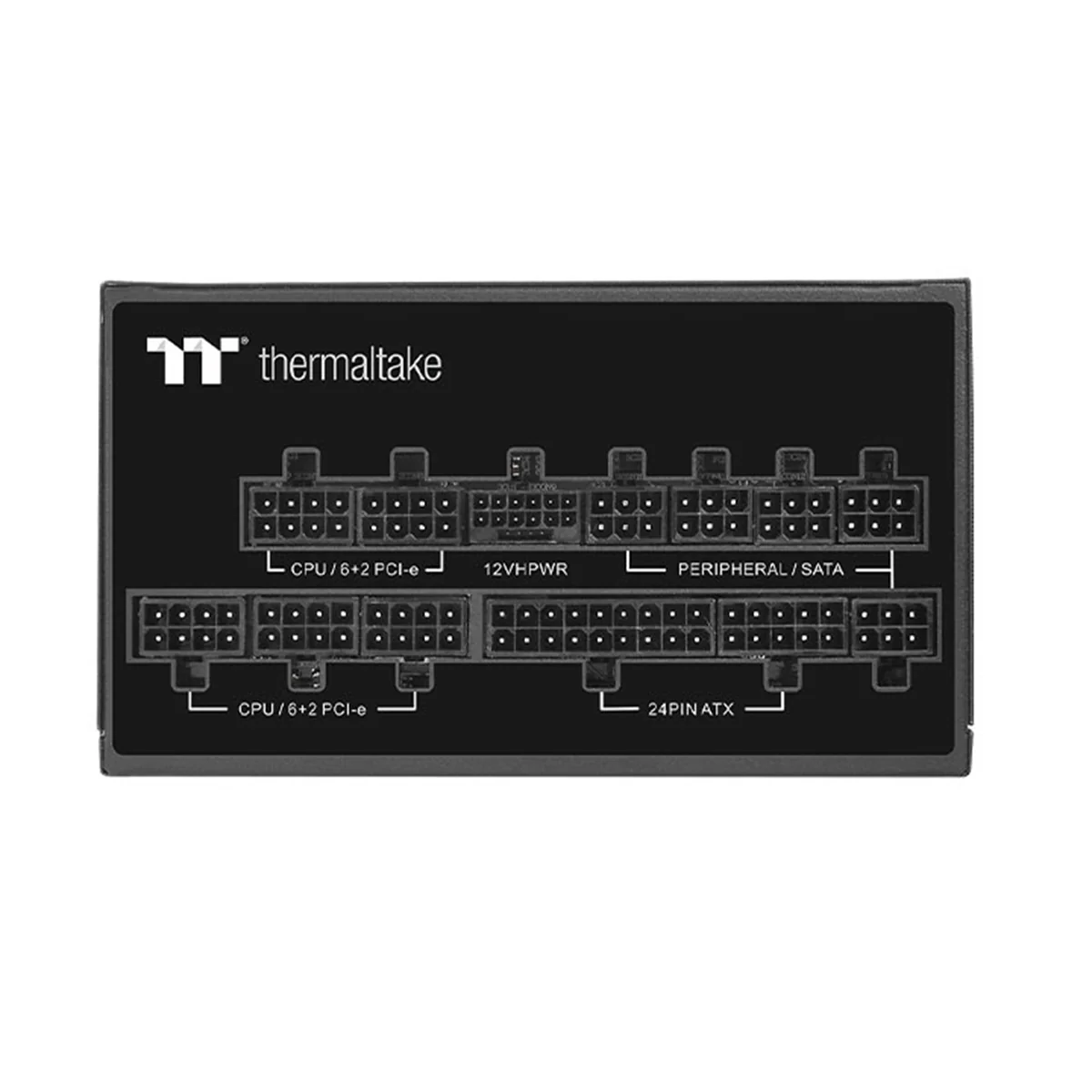

Thermaltake Toughpower PF3 PCIe Gen 5 80+ Platinum Full-Modular Tt Premium Ed. Power Supply (1200W, 1050W)
Thermaltake Toughpower PF3 PCIe Gen 5 80+ Platinum Full-Modular Tt Premium Ed. Power Supply (1200W, 1050W)
Toughpower PF3 series is 80 PLUS Platinum certified and fully compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5 connector, it can power up next-gen technology with one new 12VHPWR cable.
SPECIFICATION
| WATTS | 1050W/1200W |
|---|---|
| MODEL | TPD-1050AH2FKP/TPD-1200AH2FKP |
| MAX. OUTPUT CAPACITY | 1050W/1200W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 140mm(D)x86mm(H)x150mm(W) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-250 msec |
| HOLD UP TIME | > 17msec |
| INPUT CURRENT | 15A |
| INPUT FREQUENCY RANGE | 50 - 60Hz |
| INPUT VOLTAGE | 100 - 240Vac |
| OPERATING TEMPERATURE | 0°C to + 40°C |
| OPERATING HUMIDITY | 5% to 85%,non-condensing |
| STORAGE TEMPERATURE | -40°C to + 70°C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| COOLING SYSTEM | 12cm FDB Fan |
| EFFICIENCY | Meet 80 PLUS® Platinum at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI |
| PCI-E 6+2PIN | 5 |
| PCIE 12+4PIN | 1 |
Select Variant
From $50.17
Original: $167.25
-70%Thermaltake Toughpower PF3 PCIe Gen 5 80+ Platinum Full-Modular Tt Premium Ed. Power Supply (1200W, 1050W)—
$167.25
$50.17
Description
Toughpower PF3 series is 80 PLUS Platinum certified and fully compatible with Intel’s ATX 3.0 specifications. Designed with a native PCIe Gen 5 connector, it can power up next-gen technology with one new 12VHPWR cable.
SPECIFICATION
| WATTS | 1050W/1200W |
|---|---|
| MODEL | TPD-1050AH2FKP/TPD-1200AH2FKP |
| MAX. OUTPUT CAPACITY | 1050W/1200W |
| COLOR | Black |
| DIMENSION ( W / H / D ) | 140mm(D)x86mm(H)x150mm(W) |
| PFC (POWER FACTOR CORRECTION) | Active PFC |
| POWER GOOD SIGNAL | 100-250 msec |
| HOLD UP TIME | > 17msec |
| INPUT CURRENT | 15A |
| INPUT FREQUENCY RANGE | 50 - 60Hz |
| INPUT VOLTAGE | 100 - 240Vac |
| OPERATING TEMPERATURE | 0°C to + 40°C |
| OPERATING HUMIDITY | 5% to 85%,non-condensing |
| STORAGE TEMPERATURE | -40°C to + 70°C |
| STORAGE HUMIDITY | 5% to 95%, non-condensing |
| COOLING SYSTEM | 12cm FDB Fan |
| EFFICIENCY | Meet 80 PLUS® Platinum at 115Vac input. |
| MTBF | 100,000 hrs minimum |
| SAFETY APPROVAL | CE/FCC/UKCA/ICES/LVD/TUV/cTUVus/CB/CCC/BSMI |
| PCI-E 6+2PIN | 5 |
| PCIE 12+4PIN | 1 |
