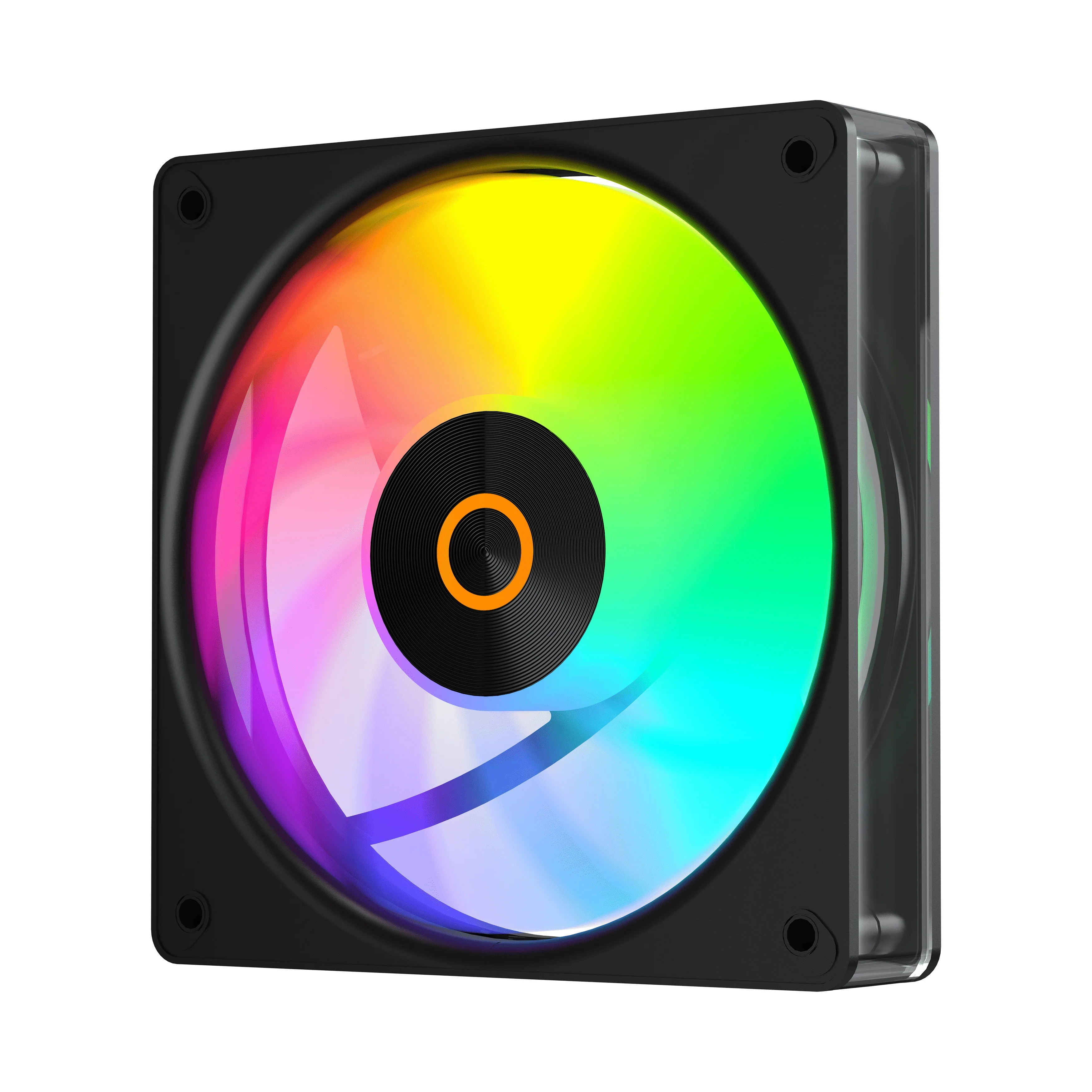

Ocypus Gamma F12 Elite ARGB 120mm PWM Fan with Transparent Frame (Black, White)

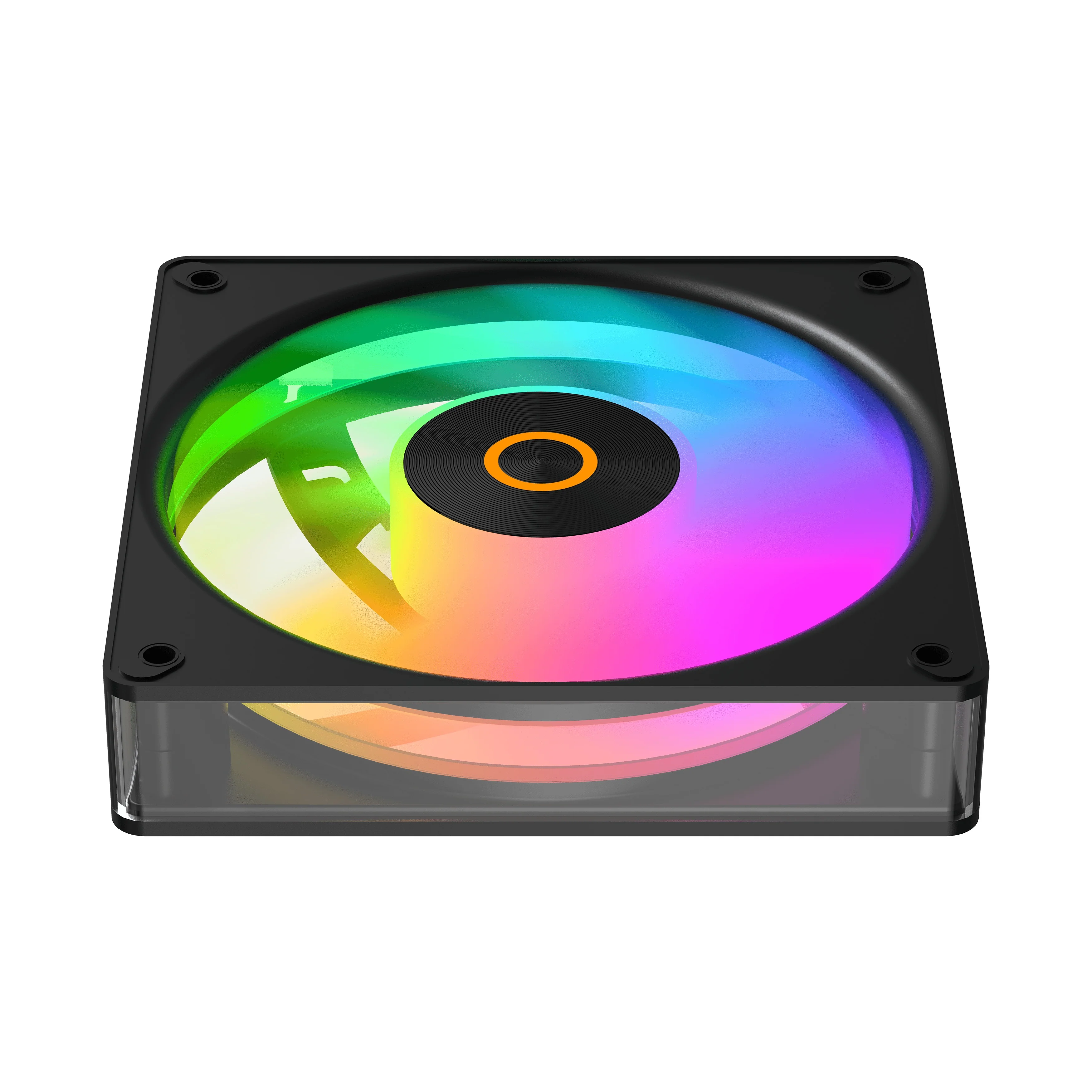

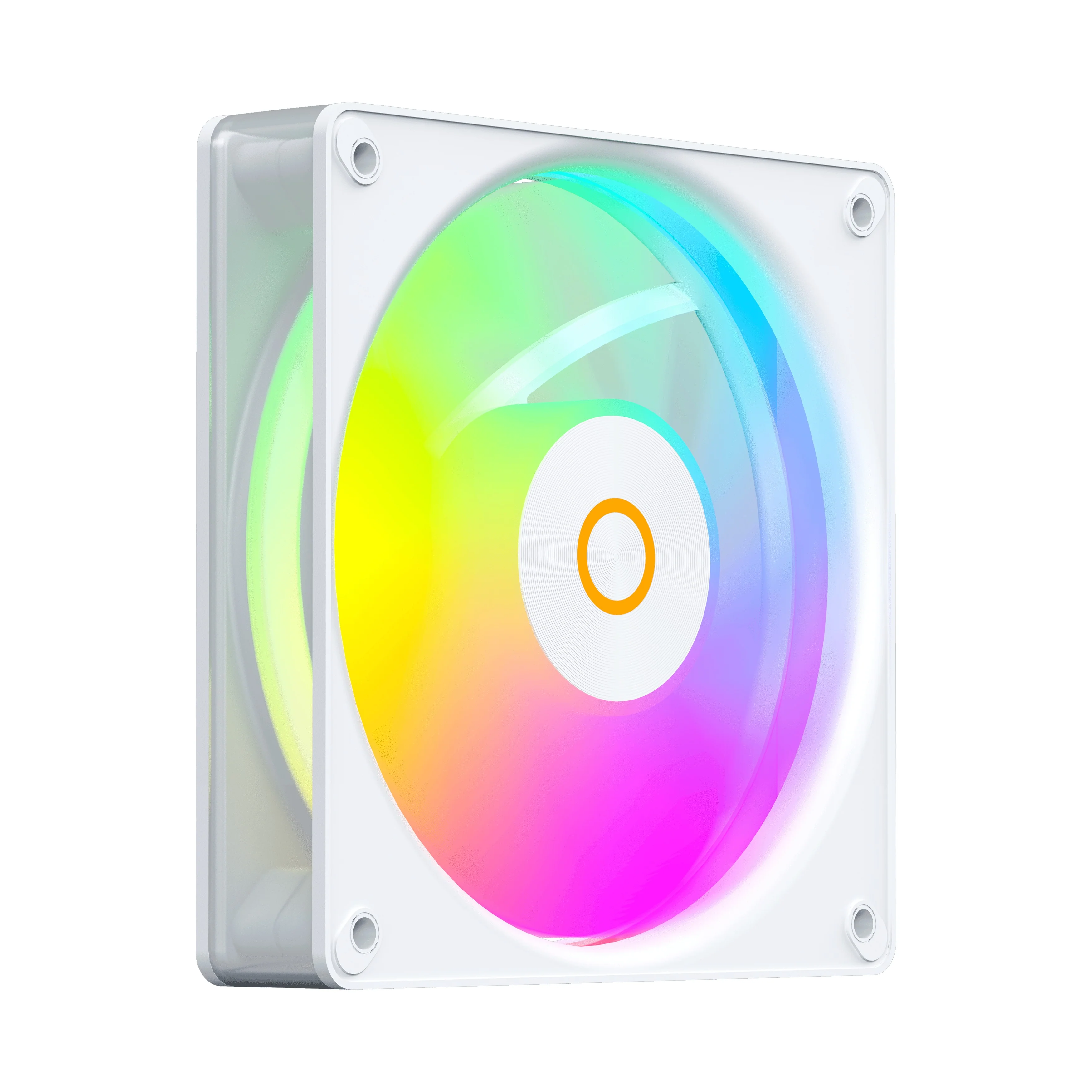

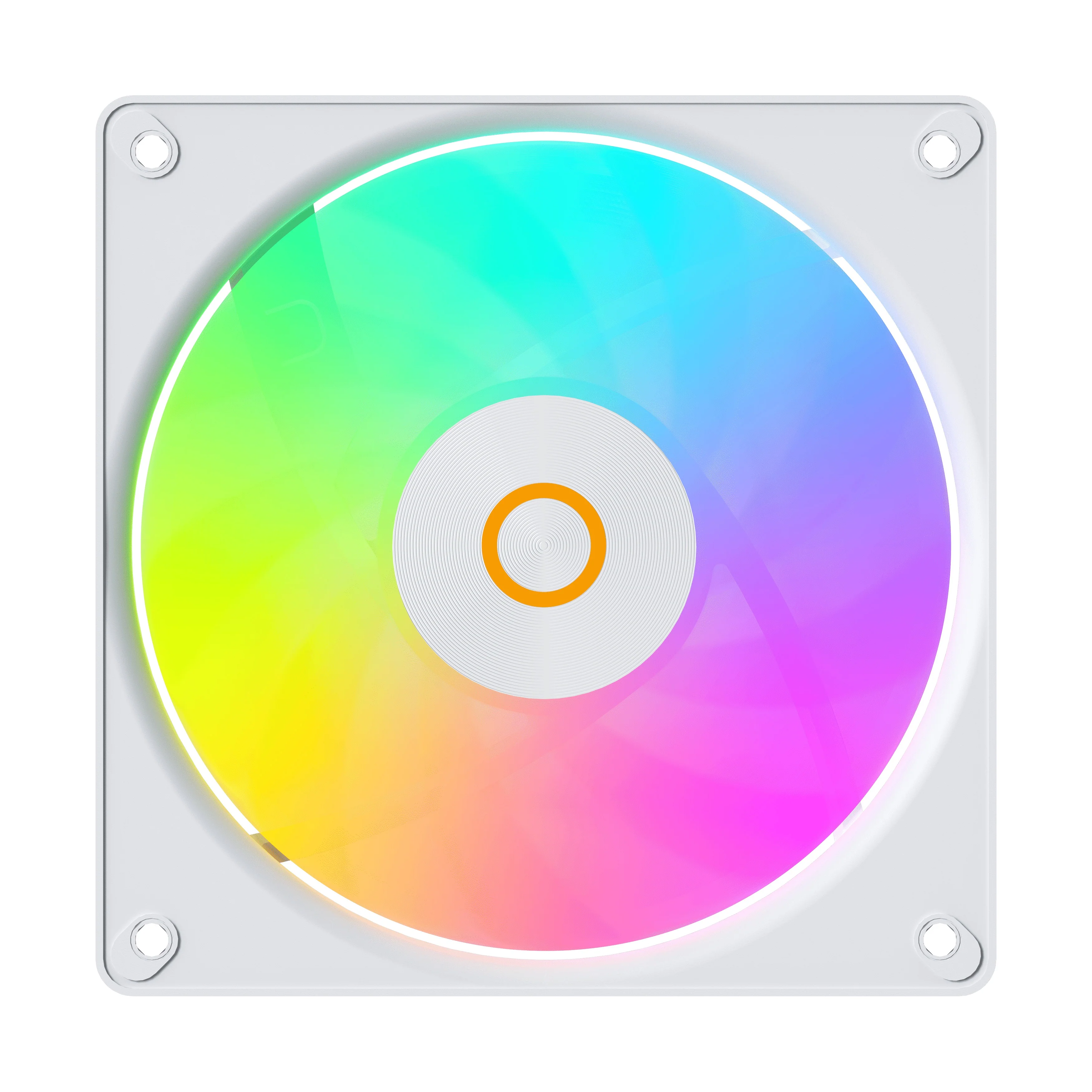

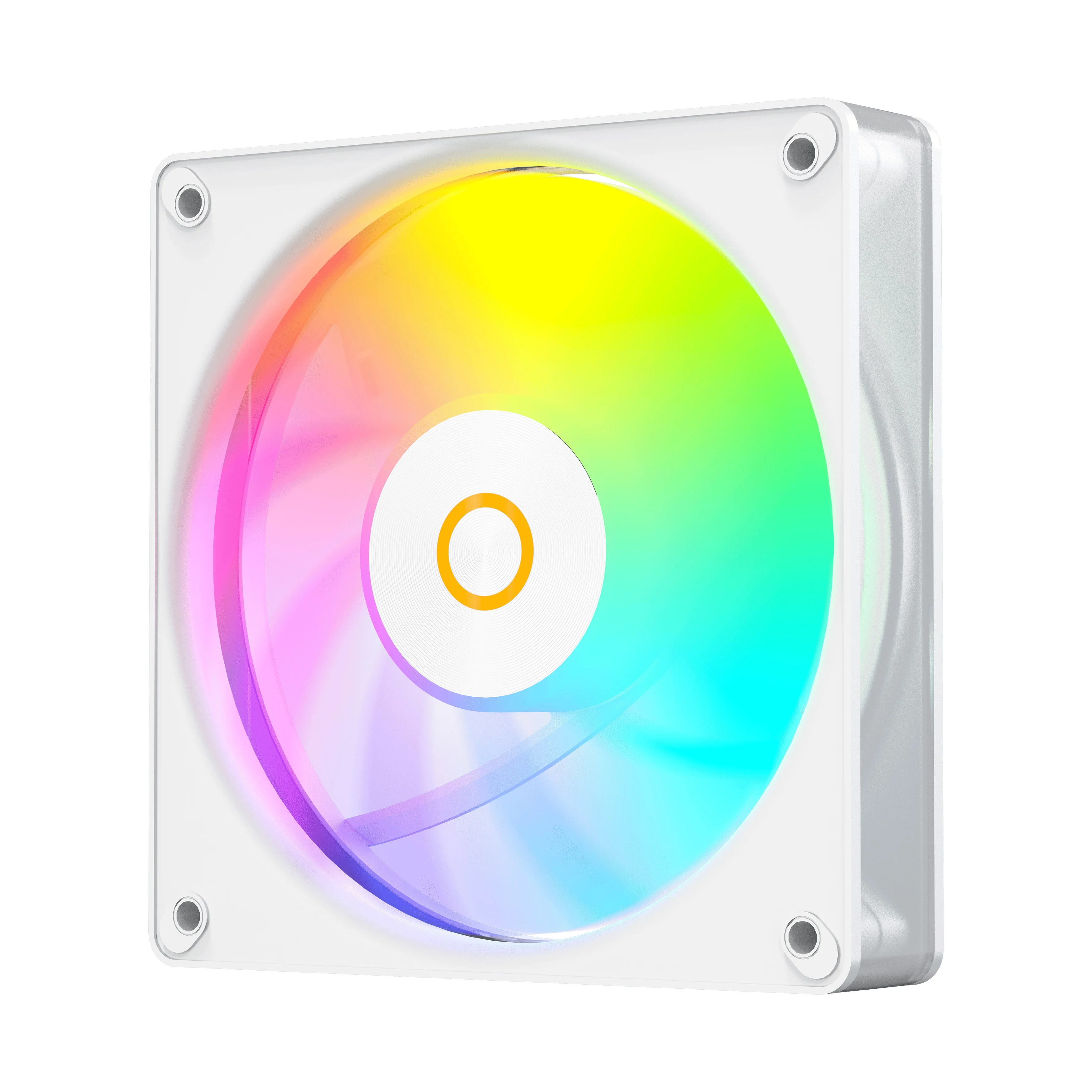

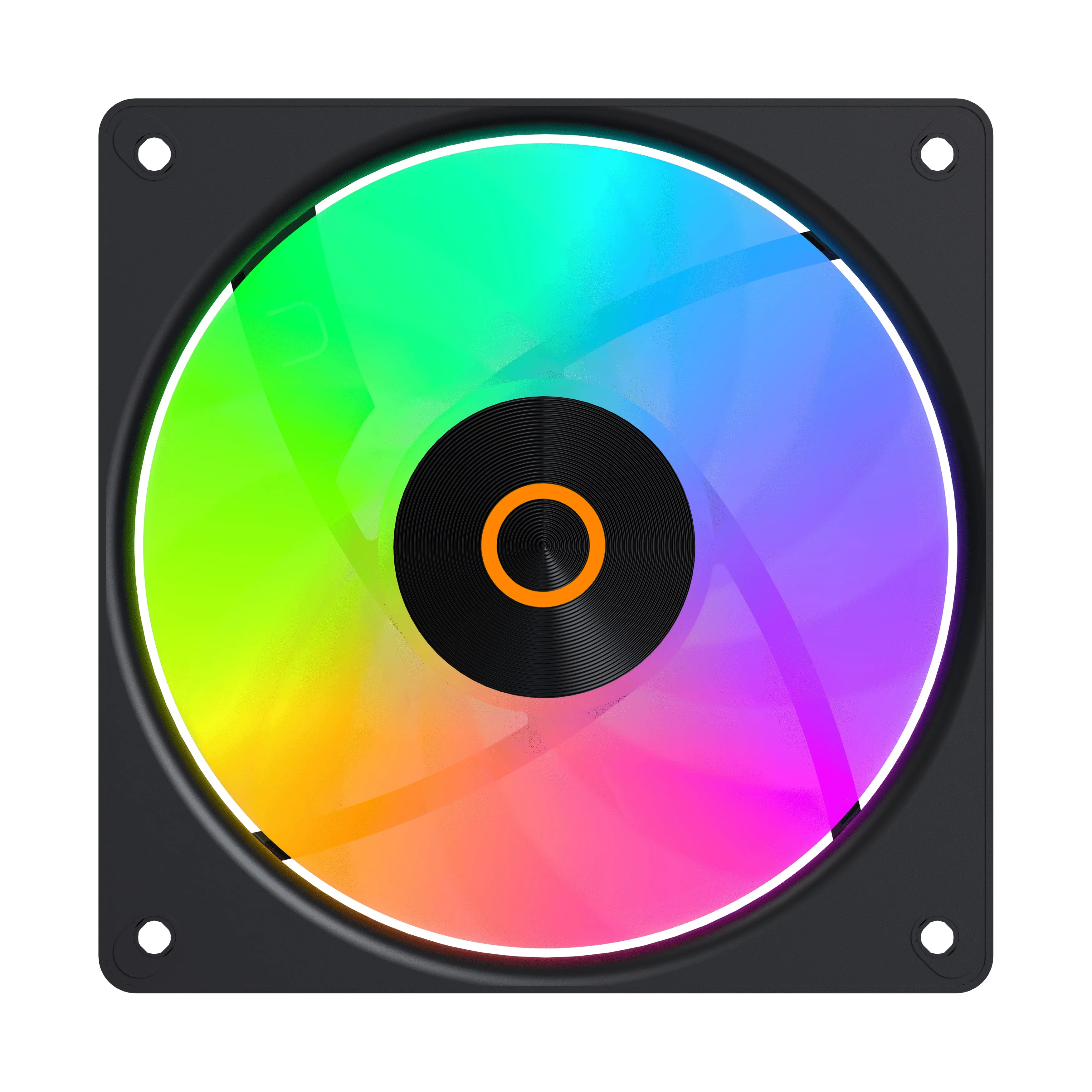

The transparent frame blends with the internal luminous halo to create a unique ambient lighting.
Customize RGB with color selection and dynamic effects. or synchronize with other ARGB devices.

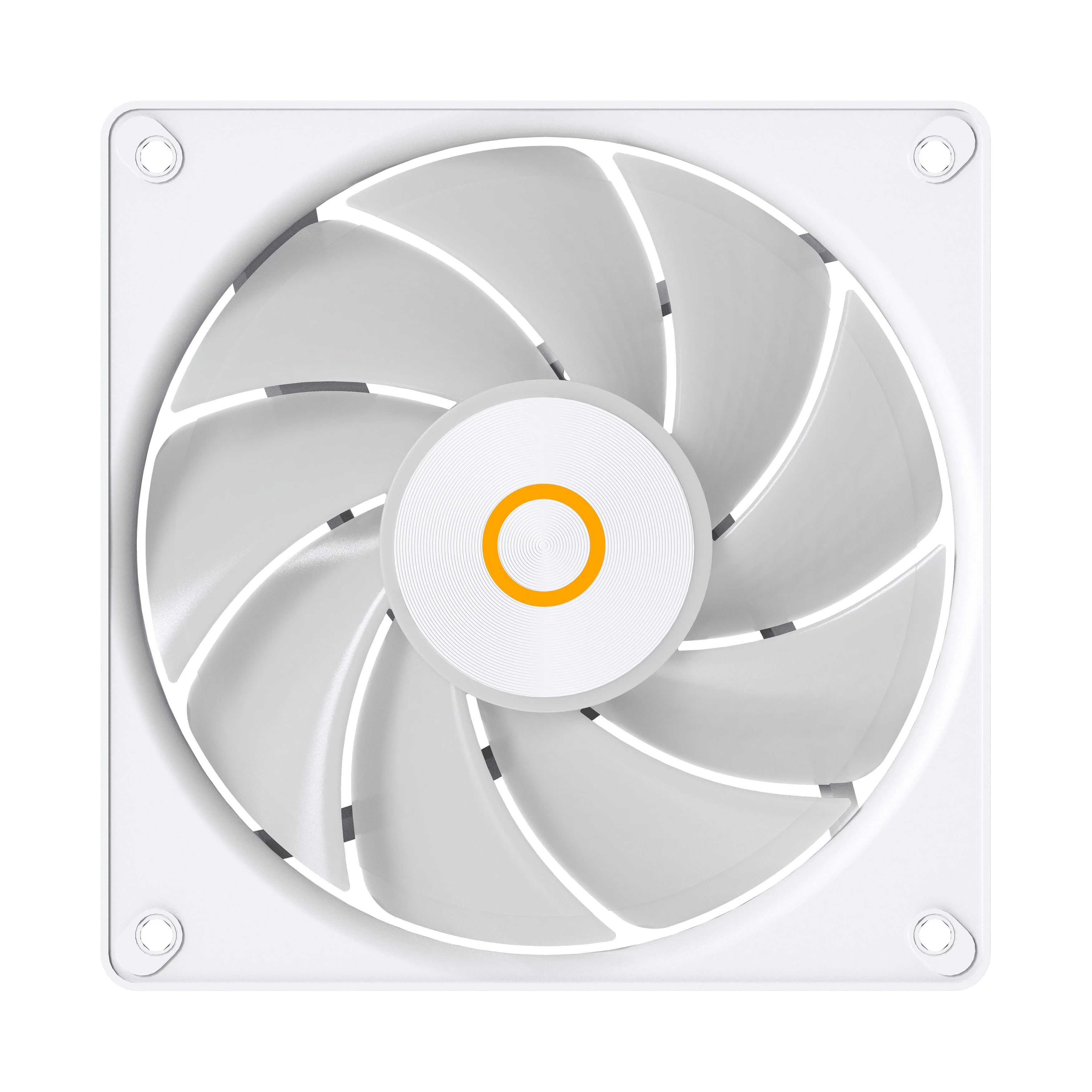

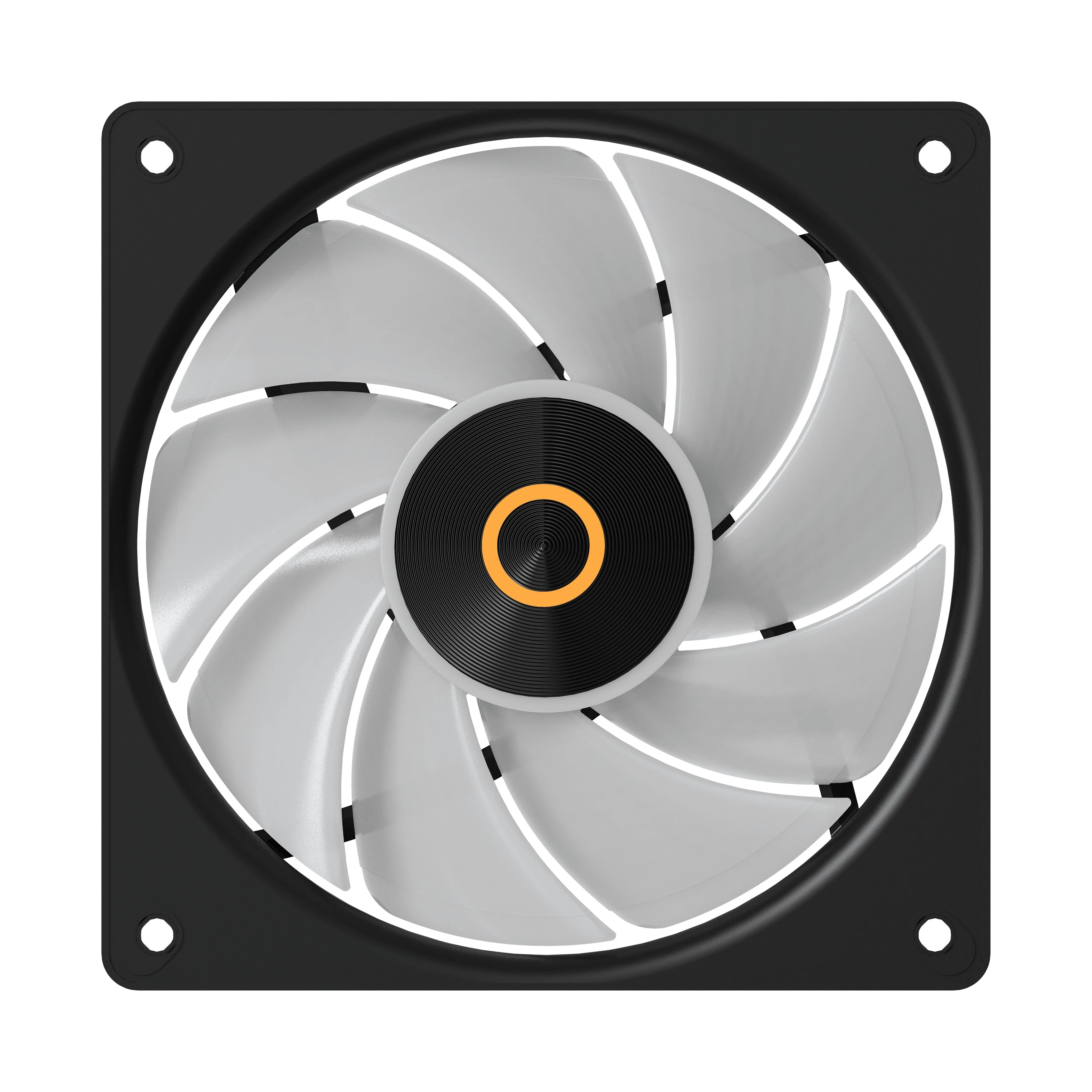

Equipped with nine fan blades to bring high airflow and low operation noise.
PWM function ensures fan speed adjustment according to different usage scenarios.

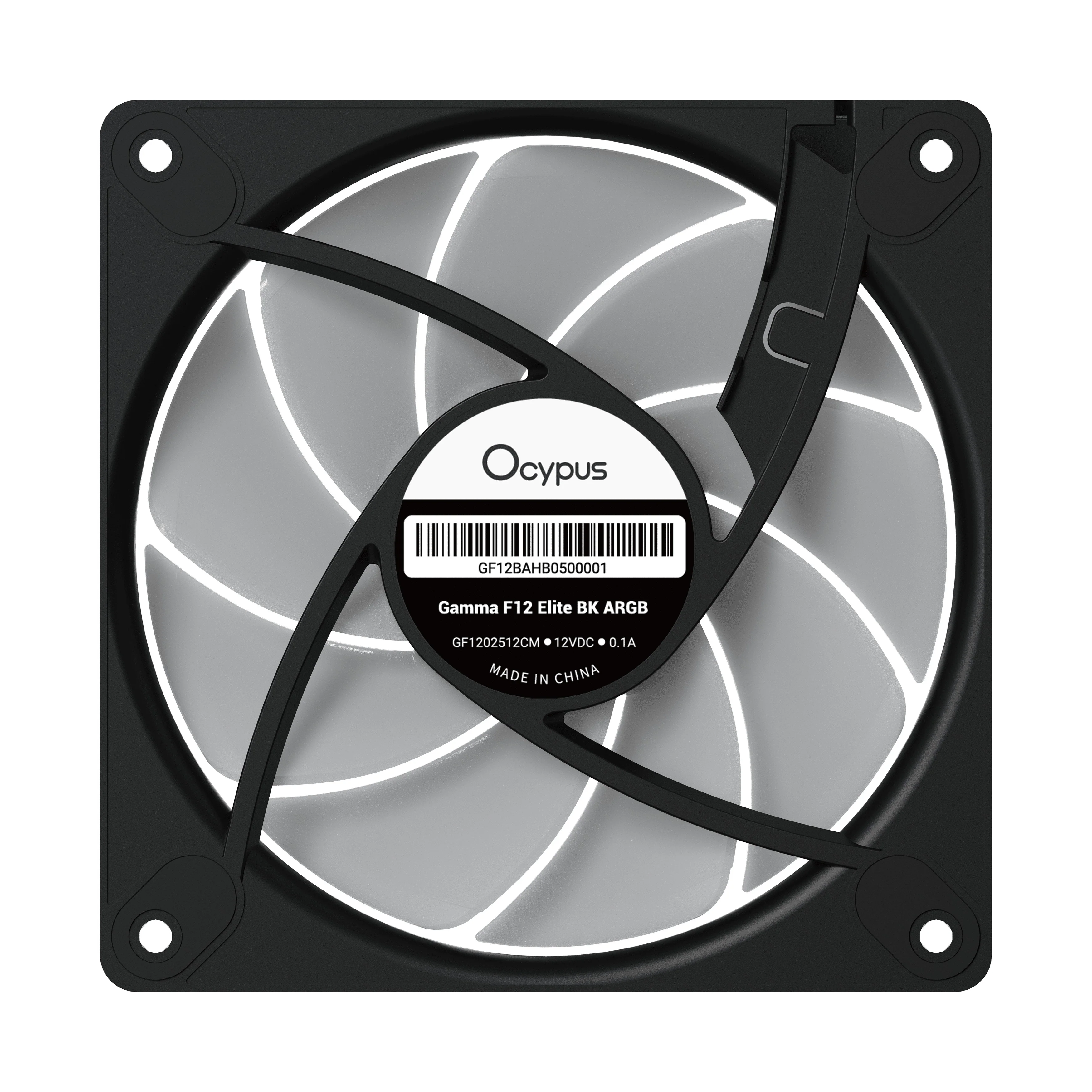

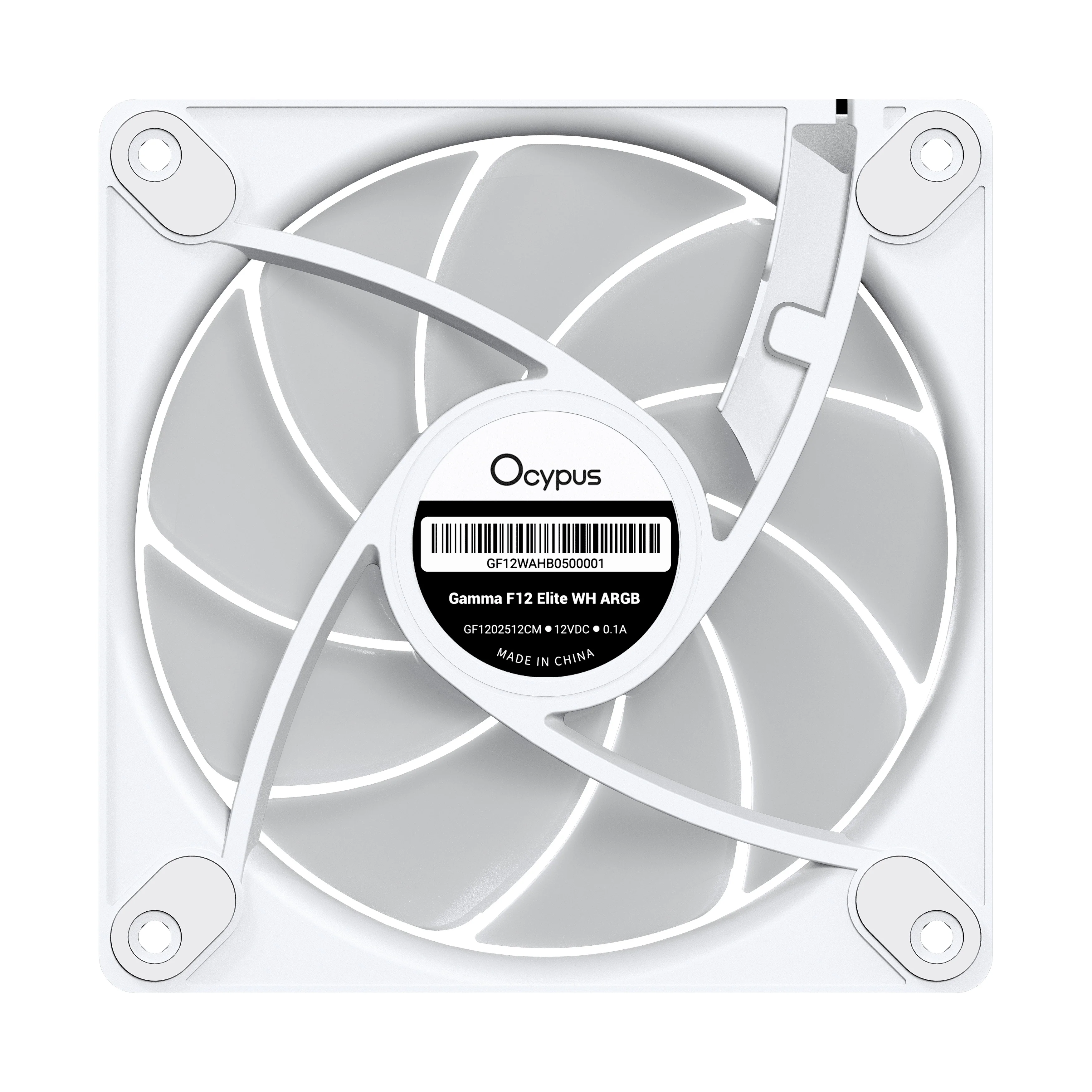

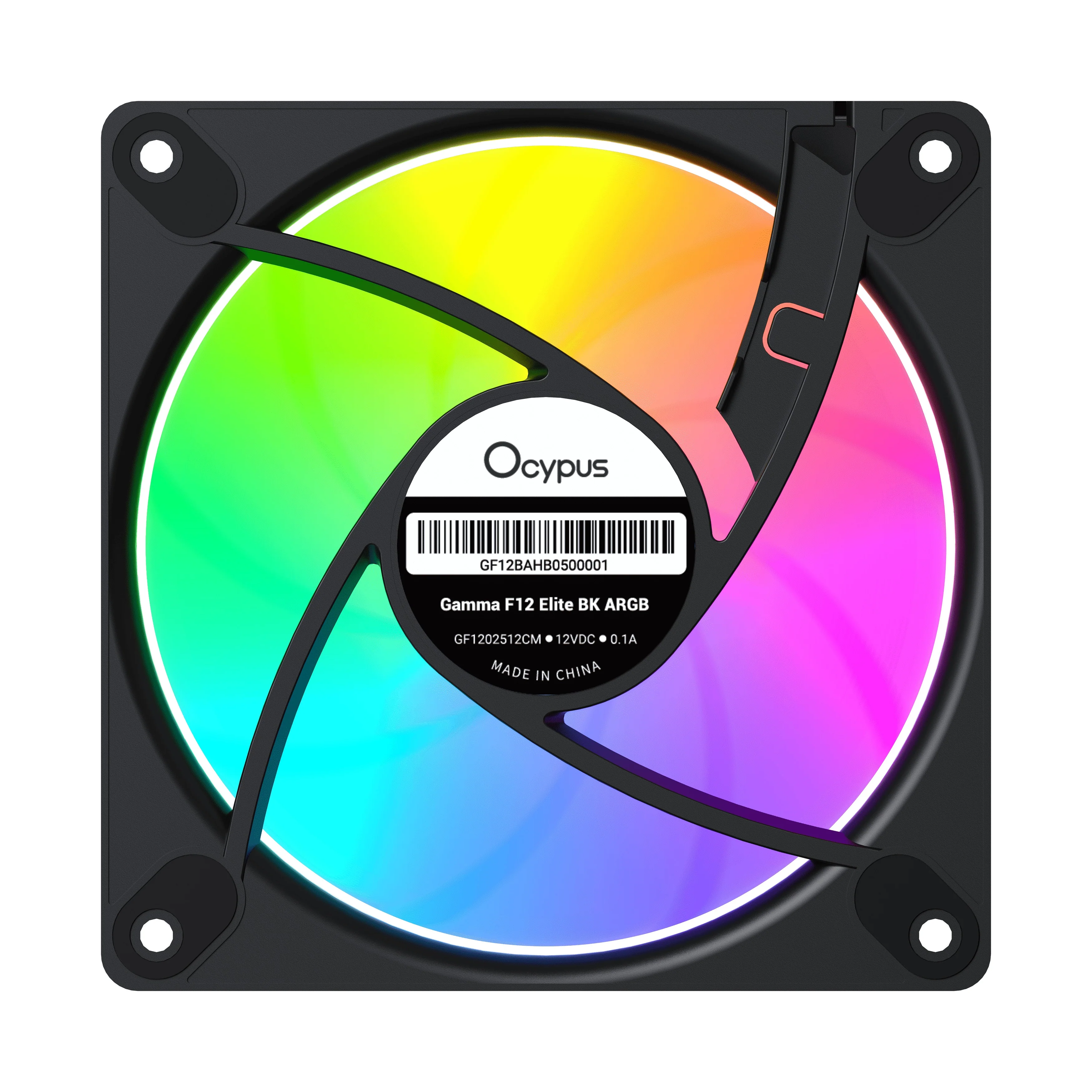

Feature four anti-vibration pads at the back to effectively reduce resonance between fan and case.
Specification:
| Basic | |
|---|---|
| Dimension | 120*120*25mm (L×W×H) |
| Color | Black, White |
| Net Weight | 169g |
| Bearing Type | Hydraulic Bearing |
| Speed | 600~1800±10%RPM |
| Air Flow(MAX) | 56CFM |
| Air Pressure(MAX) | 1.8mmH2O |
| Noise | 26dB(A) |
| Rated Voltage | 12VDC |
| Rated Current | 0.1A |
| Power Consumption | 1.2W |

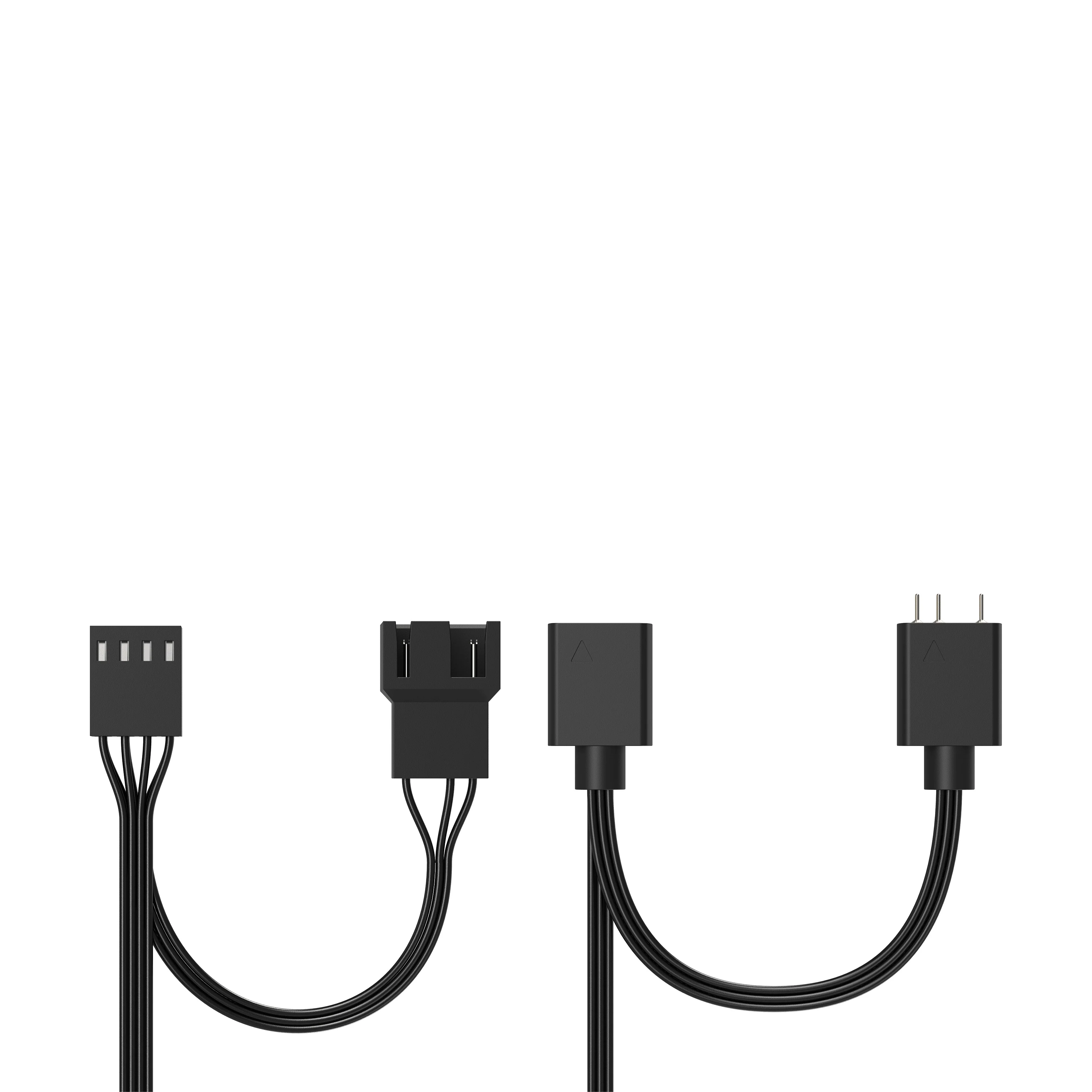

| Connector | 4-pin PWM |
| LED Type | ARGB |
| LED Connector | 3-Pin |
| LED Rated Voltage | 5VDC |
| LED Rated Current | 0.28A |
| LED Power Consumption | 1.4W |
