• 12 N·m of Torque from a Direct Drive Servo Motor
• Lightweight Design
• New Generation FFB Filtering Algorithm
• Aviation-grade Aluminum
• Industrial Conductive Slip Ring
• Ultra-low FFB Latency & Steering Response
• Intelligent Temperature Control System
• Hand-off Protection
• MOZA Pit House Control Software
• Cloud-based Mobile App Control

SPECIFICATIONS:

Platform	PC
FFB Drive System	Direct Drive
Max Wheel Rotation	Limitless
Housing Material	Aviation Grade Aluminum Alloy
Housing Color	Black
Peak Torque	12 N·m
Peak Power	216W
Input voltage	110V~220V AC —>36V DC
USB Refresh Rate	1000Hz
App Functions	Supported
Quick Release	Supported

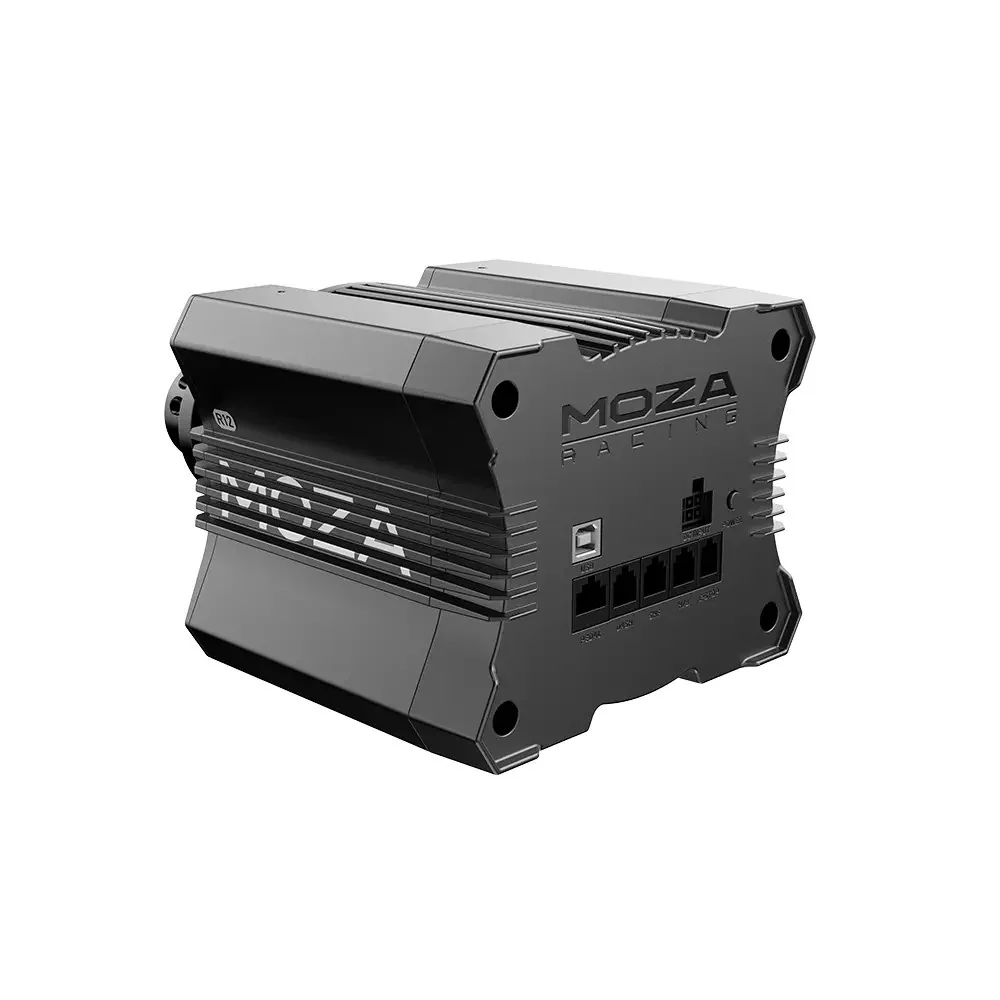

Connection Ports	Power, USB, Pedal, Dash, Shifter, Handbrake, E-stop
Accessories	User manual, power adapter, cable, tool kit
Fixing Method	4-hole bottom mount
Desk Clamp	Optional
E-stop	Optional
Online Firmware Update	Supported
Weight	7.5 kg
Dimensions (mm)	225.87 x 156.68 x 123.99
