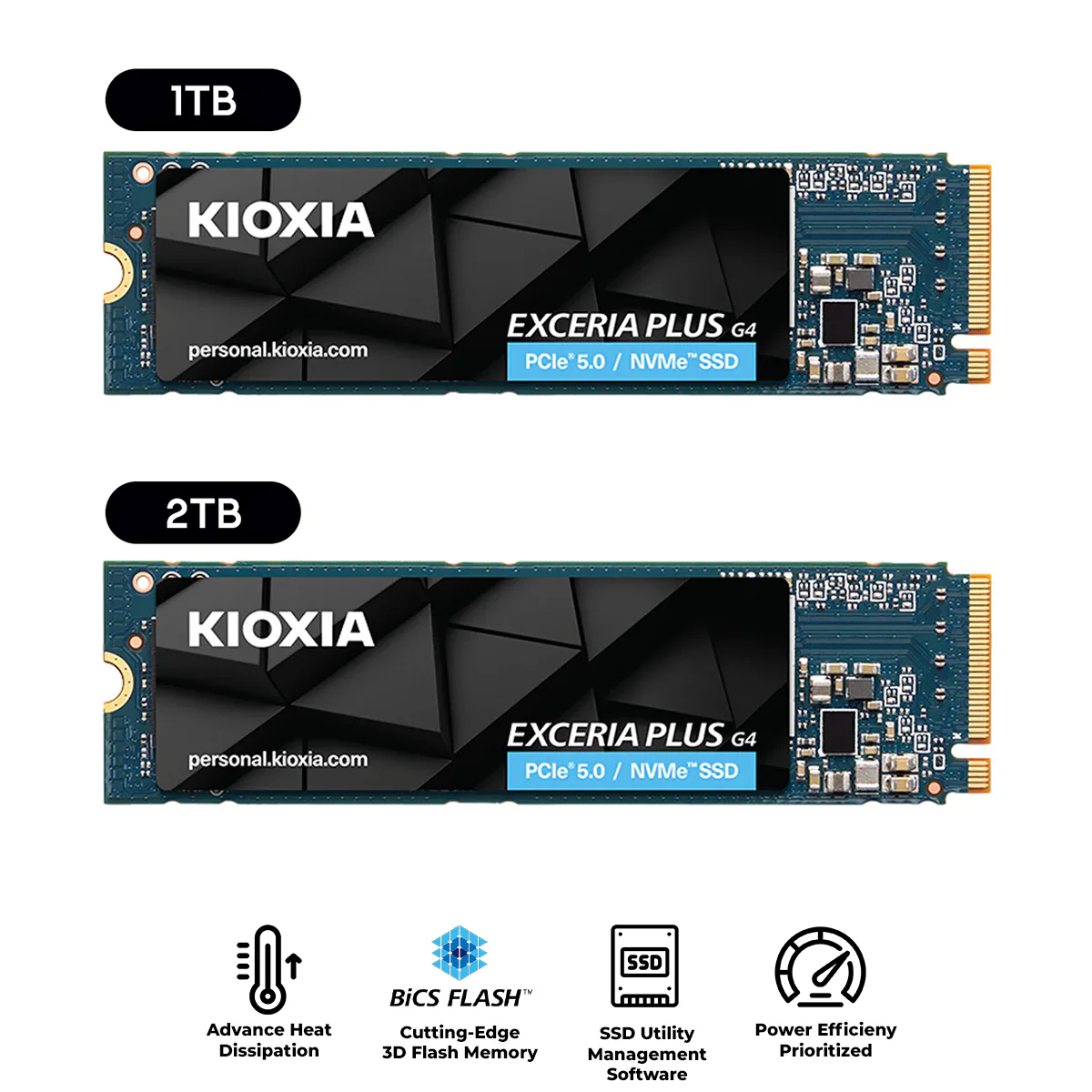

Kioxia Exceria Plus G4 PCIe Gen5 x4 M.2 2280 NVME SSD (1TB, 2TB) (LVD10Z001TG8, LVD10Z002TG8)
Kioxia Exceria Plus G4 PCIe Gen5 x4 M.2 2280 NVME SSD (1TB, 2TB) (LVD10Z001TG8, LVD10Z002TG8)
Get an enhanced PC experience with the all-new KIOXIA EXCERIA PLUS G4 SSD series featuring a state-of-the-art PCIe® 5.0 interface. Offering improved performance and up to 2TB of capacity for gamers and video editors, the EXCERIA PLUS G4 series delivers low power consumption and reduced heat generation.
| Capacity / dimensions | |
|---|---|
| Capacity | 1TB, 2TB |
| Form Factor | M.2 Type 2280-S3-M |
| Interface | PCI Express® Base Specification Revision 5.0 (PCIe®) |
| Flash Memory type | BiCS FLASH™ TLC |
| Interface Maximum Speed | 128 GT/s (PCIe® Gen5x4) |
| Dimension (Max: LxWxH) | 80.15 x 22.15 x 2.38 mm |
| Interface Protocol | NVM Express™ Base Specification 2.0c |
| Weight | 1TB: 5.6 g (typ.), 2TB: 5.7 g (typ.) |
| Performance | |
| Max Sequential Read Speed*1 | 10,000 MB/s |
| Max Sequential Write Speed*1 | 1TB: 7,900 MB/s, 2TB: 8,200 MB/s |
| Max Random Read Speed*2 | 1,300,000 IOPS |
| Max Random Write Speed*2 | 1,400,000 IOPS |
| Endurance: TBW*3 | 1TB: 600 TB, 2TB: 1,200 TB |
| MTTF | 1.5 million hours |
| Operating environment / protection performance | |
| Operating Temperature | 0 ℃ (Ta) to 85 ℃ (Tc) |
| Storage Temperature | -40 ℃ to 85 ℃ |
| Certification | RoHS compliant*5 |
| Shock Resistance | 9.806 km/s2 {1,000 G} 0.5 ms half sine wave |
| Vibration | 25.4mm peak-to-peak (10Hz to 20Hz), 20G peak (20Hz to 2000Hz), (20min /Axis) x 3 Axis |
| Supply Voltage | 3.3 V ±5 % |
| Power Consumption | PS3: 50 mW (typ.), PS4: 5 mW (typ.) |
| Power Consumption (Active) | 5.3 W (typ.) |
| Compatibility | |
| Connector Type | M.2 M key Socket |
| Target Applications | Client desktops and laptops |
| Others | |
| Services and Support | Up to 5-year manufacturer's warranty*4 |
| Performance Optimization | TRIM, Idle Time Garbage Collection, Host Memory Buffer |
Select SSD Capacity
From $47.65
Original: $158.85
-70%Kioxia Exceria Plus G4 PCIe Gen5 x4 M.2 2280 NVME SSD (1TB, 2TB) (LVD10Z001TG8, LVD10Z002TG8)—
$158.85
$47.65
Description
Get an enhanced PC experience with the all-new KIOXIA EXCERIA PLUS G4 SSD series featuring a state-of-the-art PCIe® 5.0 interface. Offering improved performance and up to 2TB of capacity for gamers and video editors, the EXCERIA PLUS G4 series delivers low power consumption and reduced heat generation.
| Capacity / dimensions | |
|---|---|
| Capacity | 1TB, 2TB |
| Form Factor | M.2 Type 2280-S3-M |
| Interface | PCI Express® Base Specification Revision 5.0 (PCIe®) |
| Flash Memory type | BiCS FLASH™ TLC |
| Interface Maximum Speed | 128 GT/s (PCIe® Gen5x4) |
| Dimension (Max: LxWxH) | 80.15 x 22.15 x 2.38 mm |
| Interface Protocol | NVM Express™ Base Specification 2.0c |
| Weight | 1TB: 5.6 g (typ.), 2TB: 5.7 g (typ.) |
| Performance | |
| Max Sequential Read Speed*1 | 10,000 MB/s |
| Max Sequential Write Speed*1 | 1TB: 7,900 MB/s, 2TB: 8,200 MB/s |
| Max Random Read Speed*2 | 1,300,000 IOPS |
| Max Random Write Speed*2 | 1,400,000 IOPS |
| Endurance: TBW*3 | 1TB: 600 TB, 2TB: 1,200 TB |
| MTTF | 1.5 million hours |
| Operating environment / protection performance | |
| Operating Temperature | 0 ℃ (Ta) to 85 ℃ (Tc) |
| Storage Temperature | -40 ℃ to 85 ℃ |
| Certification | RoHS compliant*5 |
| Shock Resistance | 9.806 km/s2 {1,000 G} 0.5 ms half sine wave |
| Vibration | 25.4mm peak-to-peak (10Hz to 20Hz), 20G peak (20Hz to 2000Hz), (20min /Axis) x 3 Axis |
| Supply Voltage | 3.3 V ±5 % |
| Power Consumption | PS3: 50 mW (typ.), PS4: 5 mW (typ.) |
| Power Consumption (Active) | 5.3 W (typ.) |
| Compatibility | |
| Connector Type | M.2 M key Socket |
| Target Applications | Client desktops and laptops |
| Others | |
| Services and Support | Up to 5-year manufacturer's warranty*4 |
| Performance Optimization | TRIM, Idle Time Garbage Collection, Host Memory Buffer |
