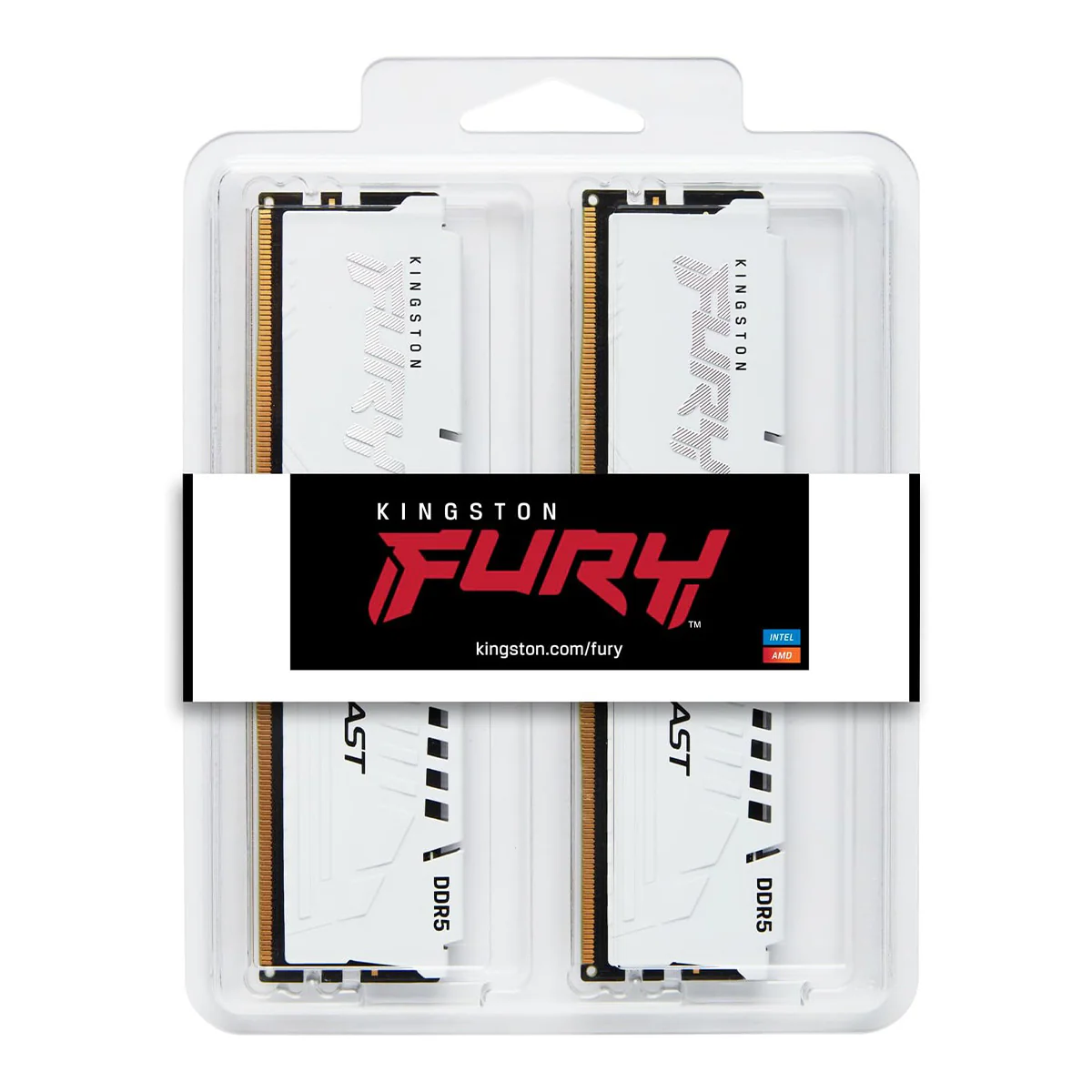

Kingston Fury Beast 64GB (2X32GB) DDR5 XMP 6000MT/S CL30 Memory (White) (KF560C30BWEK2-64)

Kingston FURY KF560C30BWEK2-64 is a kit of two 4G x 64-bit (32GB) DDR5-6000 CL30 SDRAM (Synchronous DRAM) 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components per module. Each module kit supports AMD® EXPO v1.1 and Intel® Extreme Memory Profiles (Intel® XMP) 3.0. Total kit capacity is 64GB. Each module has been tested to run at DDR5-6000 at a low latency timing of 30-36-36 at 1.4V. The SPDs are programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers.

Features:

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• Height 1.37” (34.9mm), w/heatsink



Specification:

CL(IDD)	40 cycles
Row Cycle Time (tRCmin)	48ns (min.)
Refresh to Active/Refresh Command Time (tRFCmin)	295ns (min.)
Row Active Time (tRASmin)	32ns (min.)
UL Rating	94 V - 0
Operating Temperature	0°C to +85°C
Storage Temperature	-55°C to +100°C
