Jonsbo N10 ITX Mini Computer Case (Black, Silver)

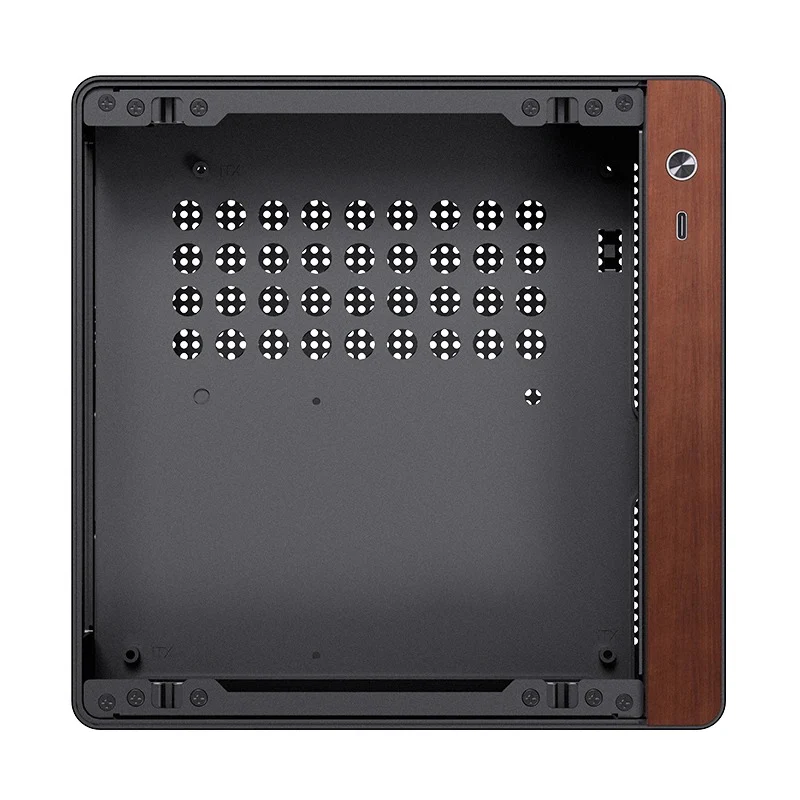

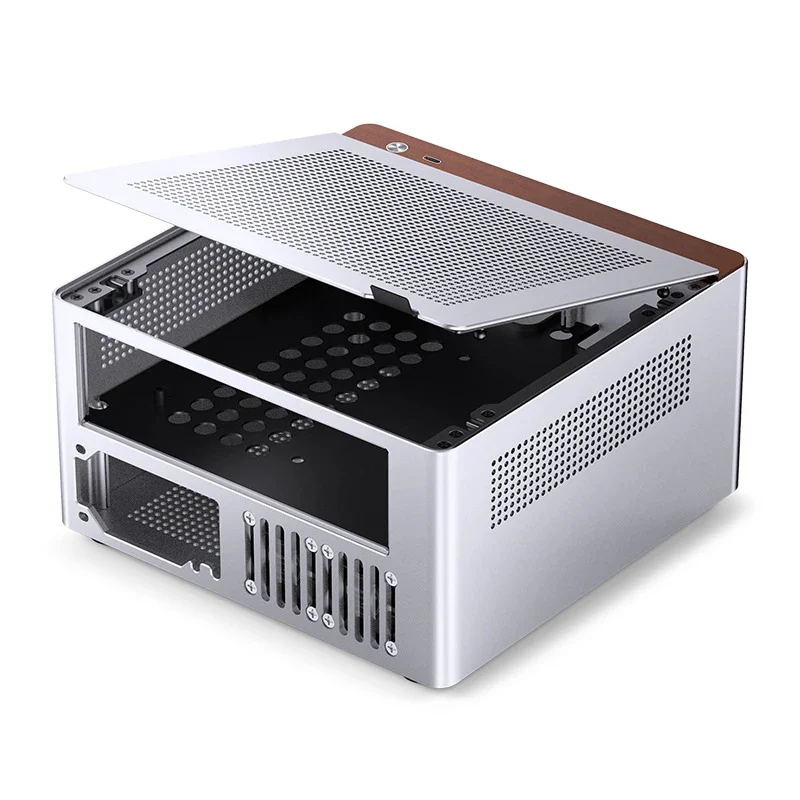

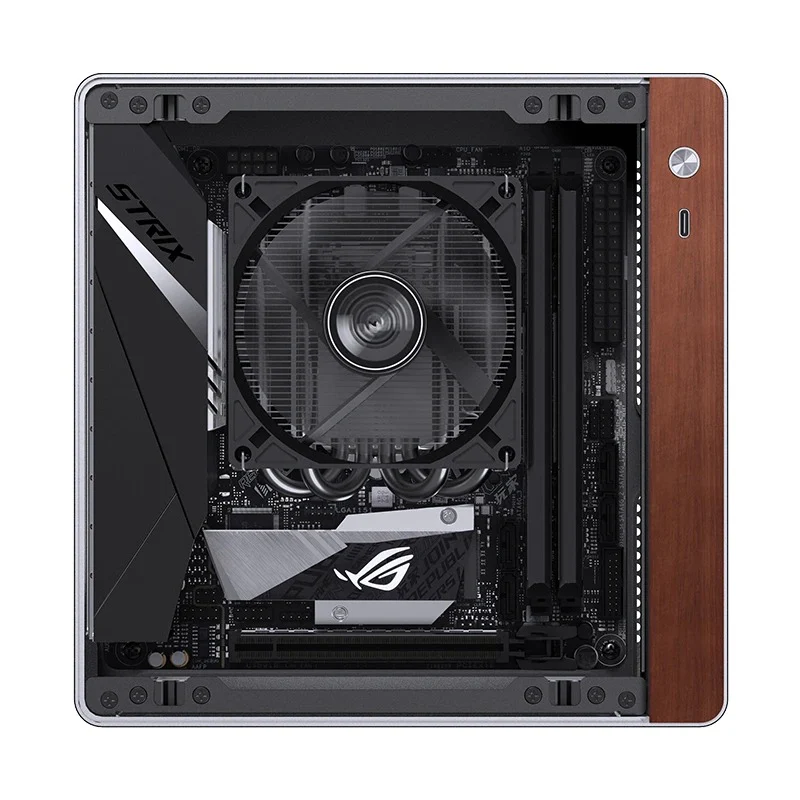

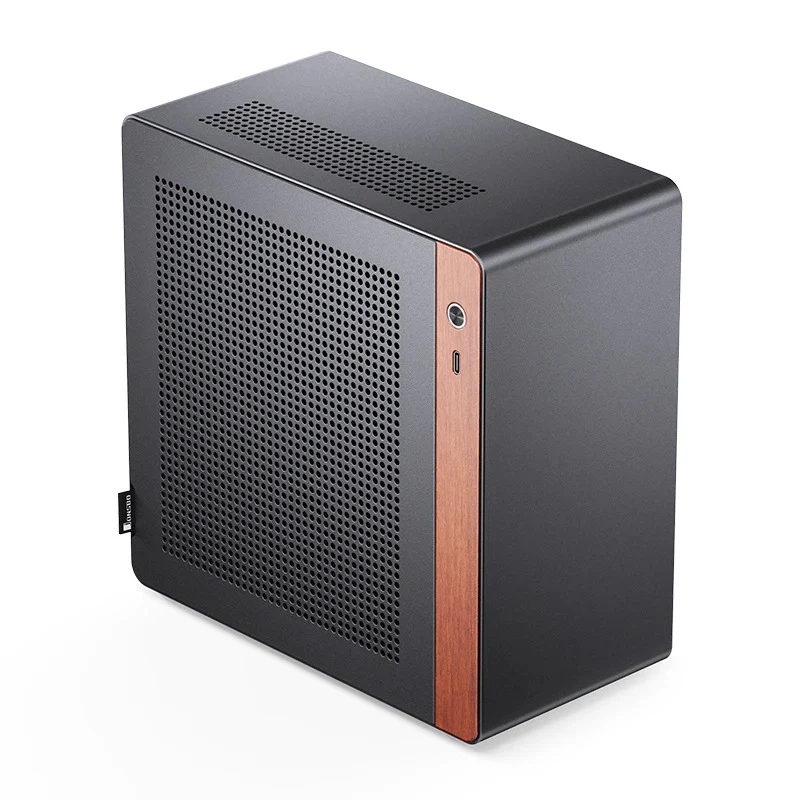

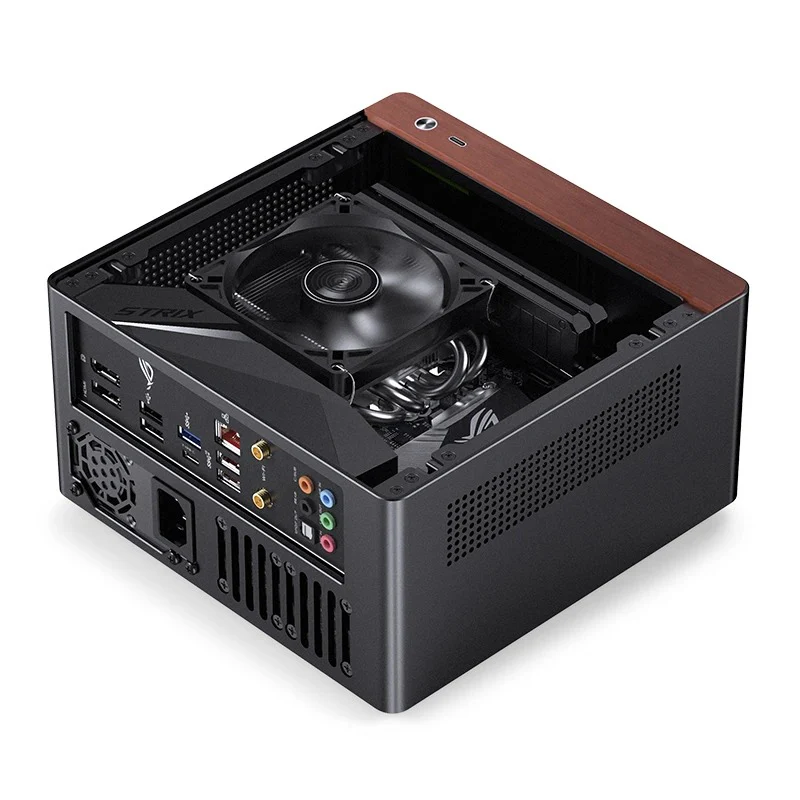

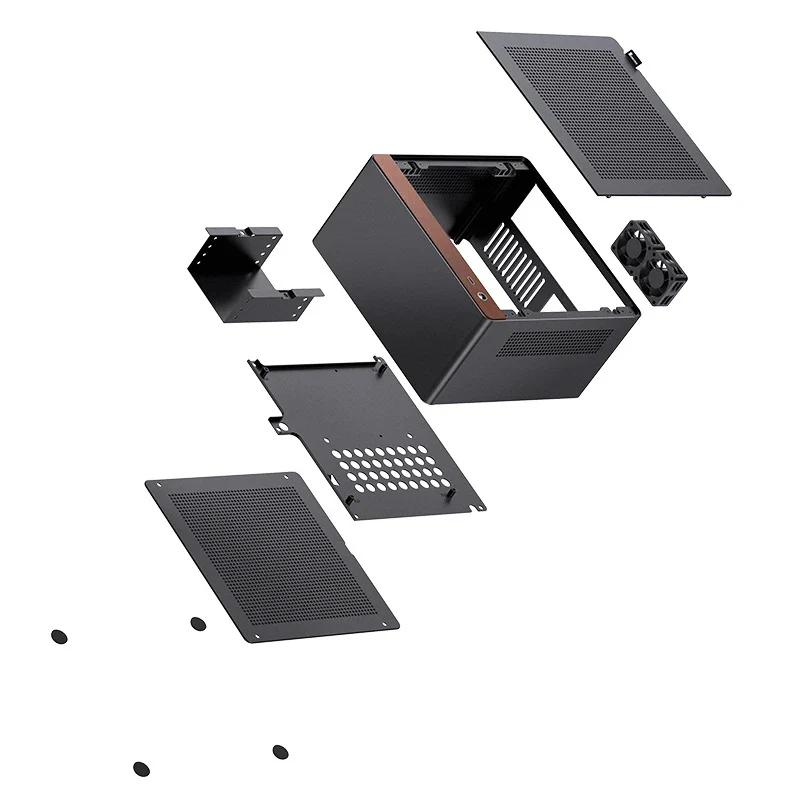

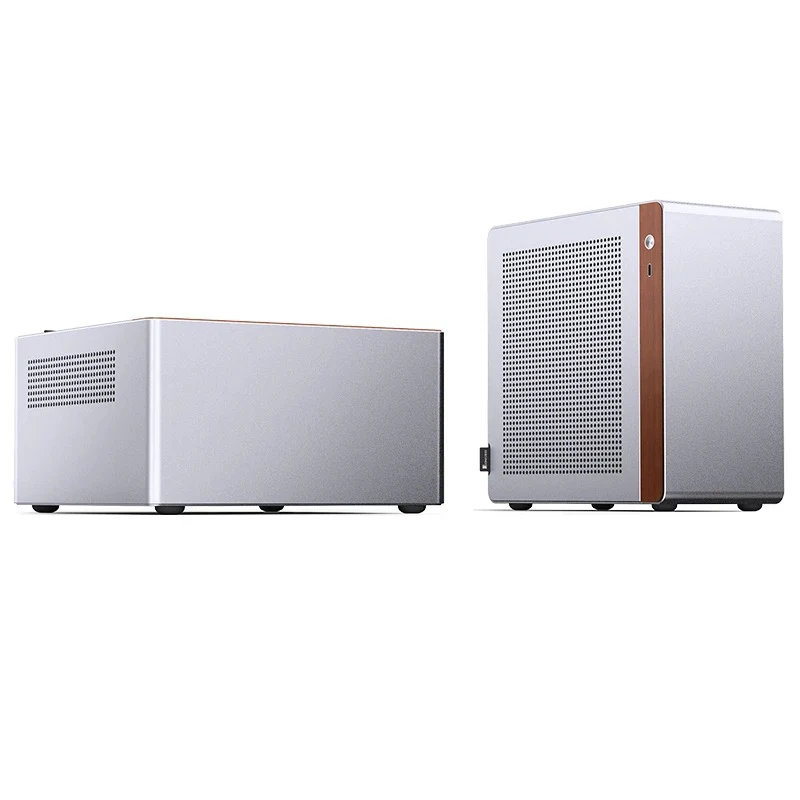

The Jonsbo N10 is an ultra-compact, purpose-built Mini-ITX computer case designed primarily for high-density storage and small-scale server/NAS applications, measuring a tiny 4.5 liters in volume. Distinguished by its premium construction featuring a 3.3mm aluminum alloy shell, 1.0mm steel plate structure, and an elegant North American walnut trim on the front I/O panel, the N10 provides a delicate, textured aesthetic. Despite its small size, it supports a Mini-ITX motherboard, a 1U FLEX power supply (up to 150mm), and prioritizes storage with dedicated space for up to four 2.5-inch SSDs/HDDs, complemented by two included 40mm high-speed fans at the rear to ensure drive cooling. With a restrictive CPU cooler clearance of 38mm, it is best suited for low-power processors but offers the flexibility to be placed vertically or horizontally on a desk.
Specifications:

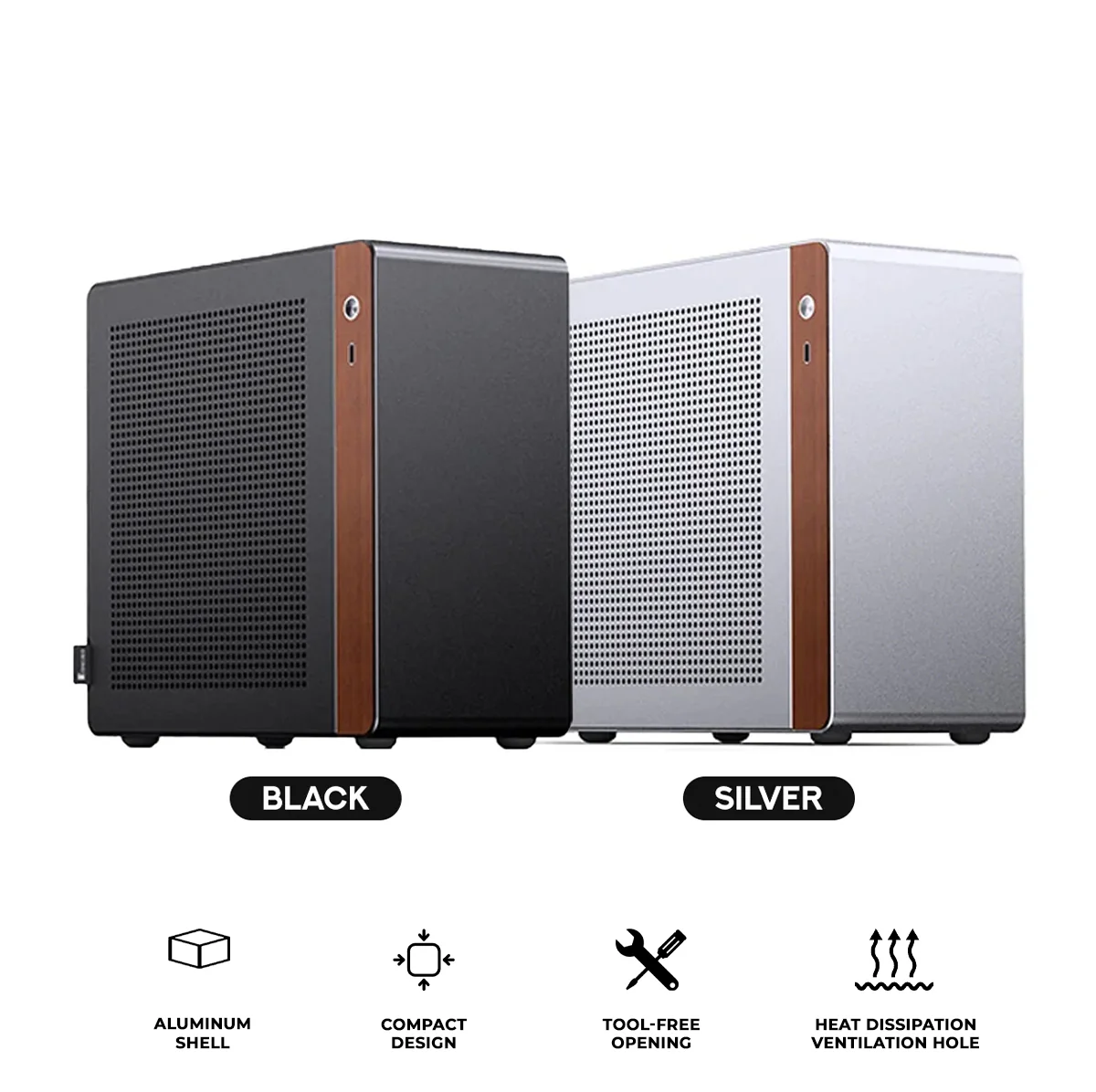

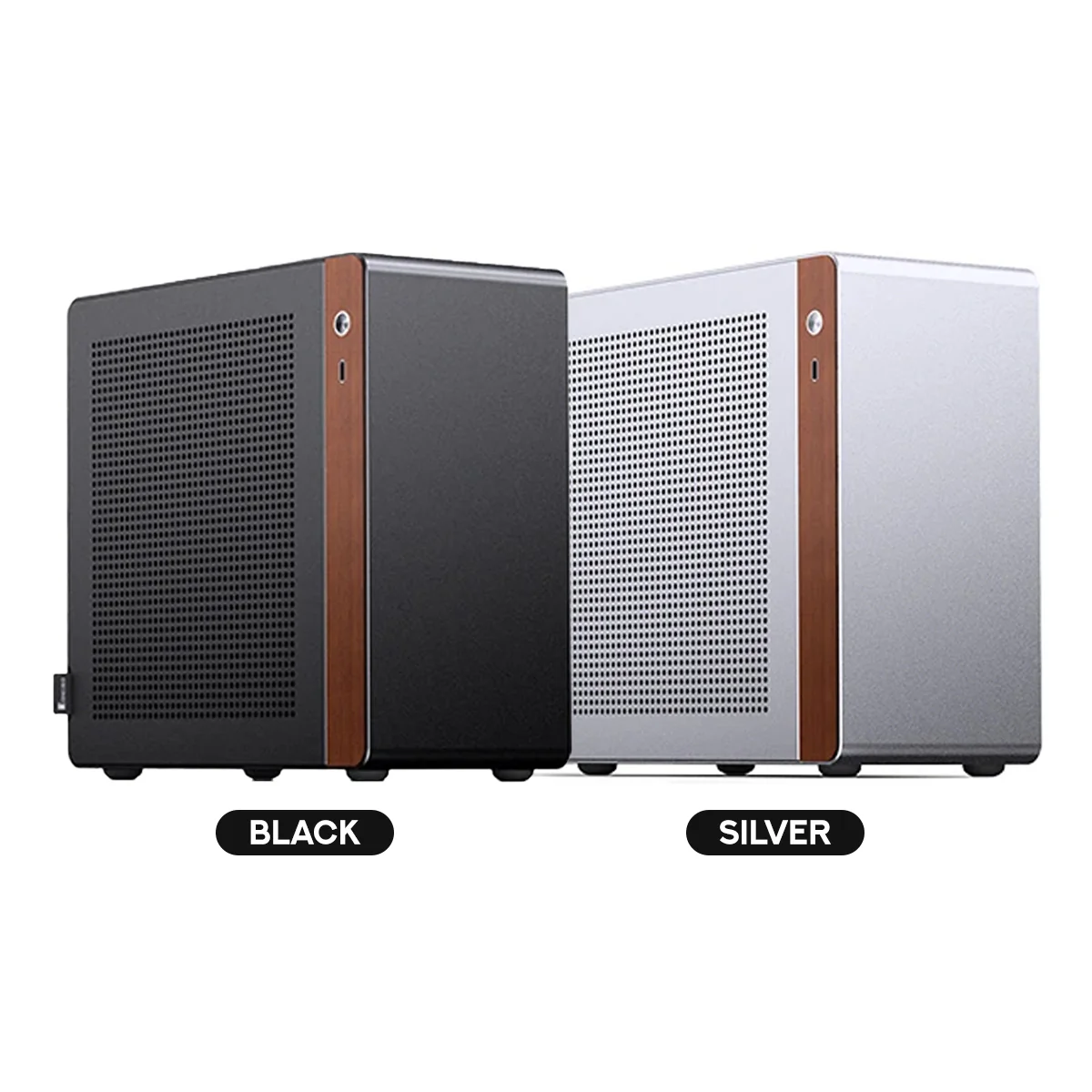

| Model | N10 Black, N10 Silver |
| Dimension | 205mm (W) × 205mm (D) × 108mm (H) |
| Material | 3.3mm Aluminum Alloy + 1.0mm Steel |
| Motherboard | ITX |
| Drive Bay | 2.5" SSD × 4 |

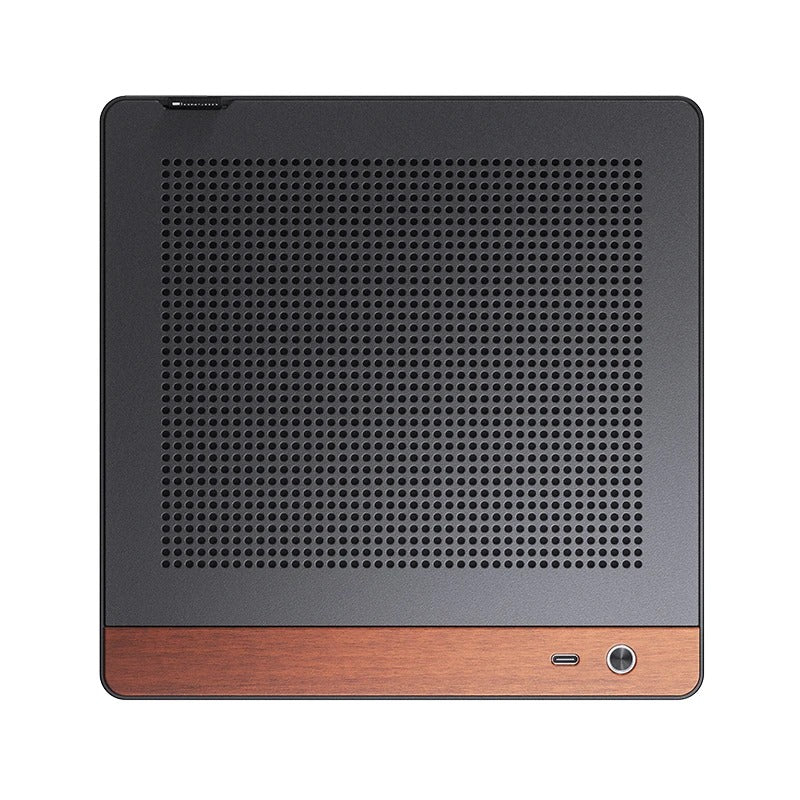

| Front I/O Port | Type-C × 1 |

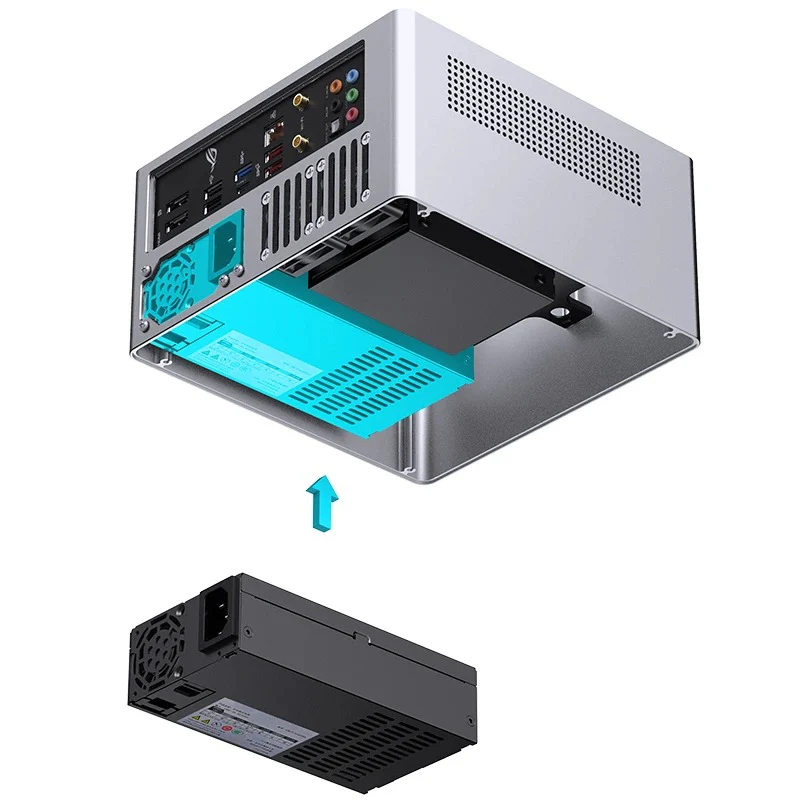

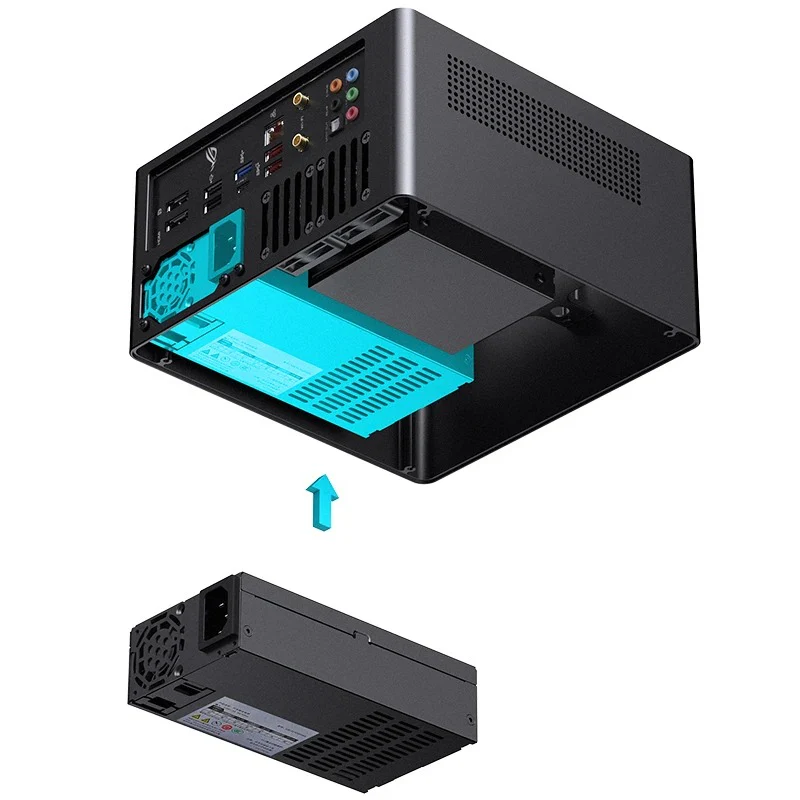

| PSU Support | 1U FLEX ≤ 150mm |

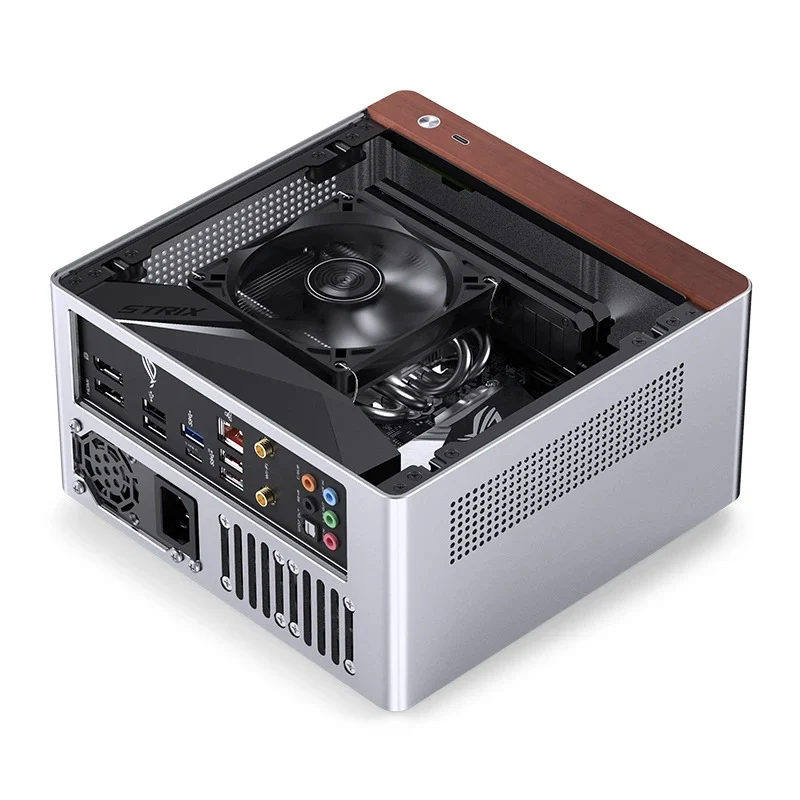

| Max. CPU Cooler Height | ≤ 38mm |

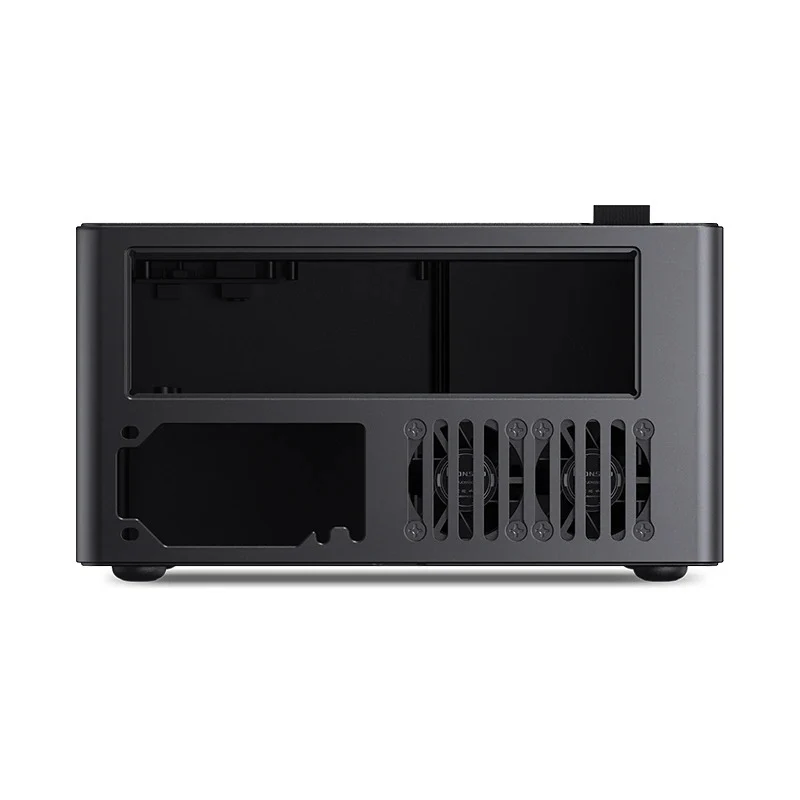

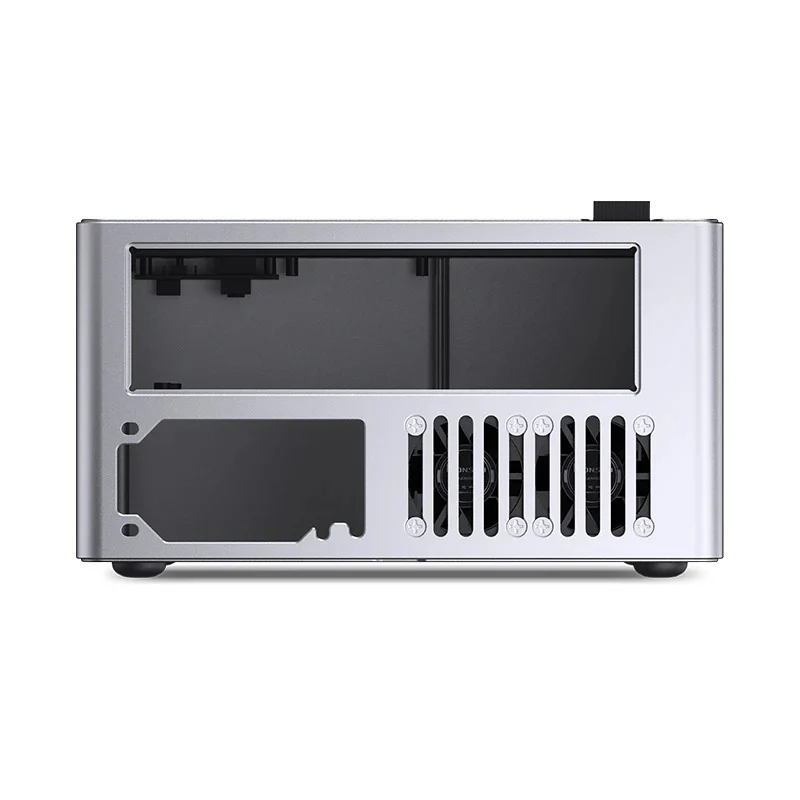

| Fan | 40mm × 20mm × 2 (5000RPM) (built-in) |
| Weight | 1.6kg |
