Jonsbo D32 Pro M-ATX Computer Case (Black, White)
- Unmatched Price per Performance - 24L Volume offer A/B mode for MB( Standard MB and BTF MB), Achieve different compatibility optimization solutions,Easier to build your PC,More convenient.
- High Compatibility- Micro ATX case upgrade to support the main popular hardware , such as BTF motherboard, Max.Length 365mm GPU，ATX/SFX-LSFX PSU （16A plug except), 240AIO,163mm Height Air Cooler etc.

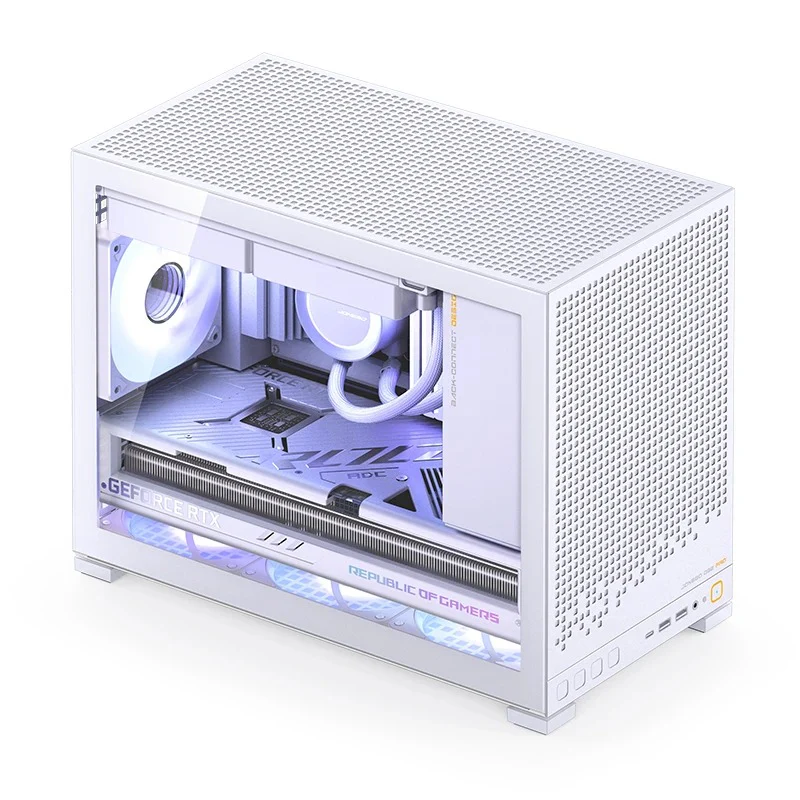

- Optimize visual design: Tempered side glass shows the Concise and neat working hardware.(Adjustable motherboard cable management cover to block visible complex wires)
- Optimized installation experience design: detachable PCI-E position unobstructed opening design, easy insertion of large graphics card
- Size：D396×W207×H314mm (Foot included)：
- MB support：MINI-ITX/MICRO-ATX standard /MICRO-ATX (Back-connect, the case needs to be switched to B mode)

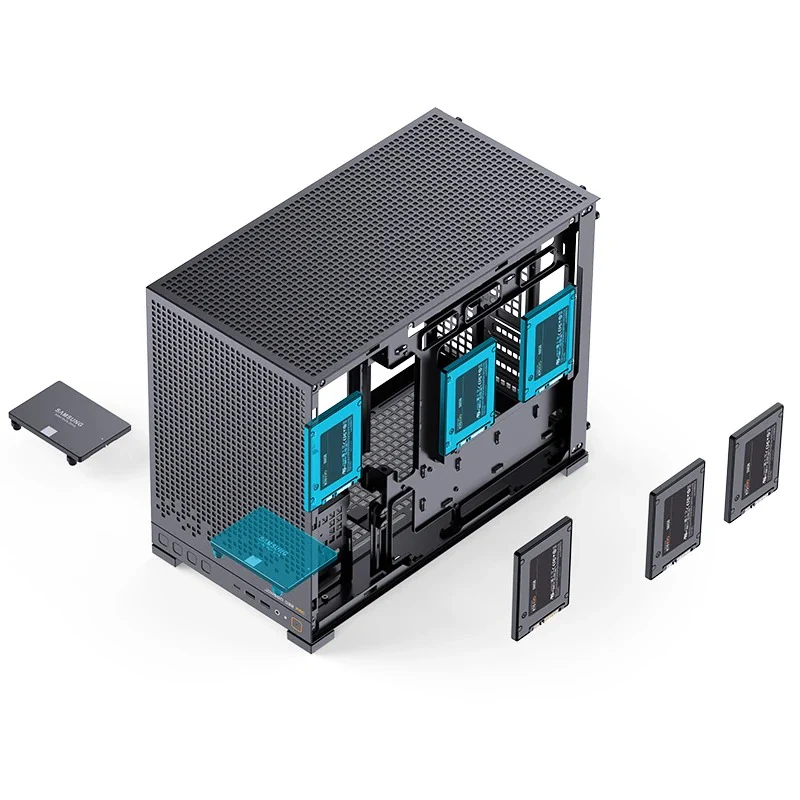

- Drive Bay： 2.5": up to 4, depends on other hardware configurations,3.5": up to 2 (shared with the 2 x 2.5" mounts), depends on other hardware configurations (depends on other hardware configurations)

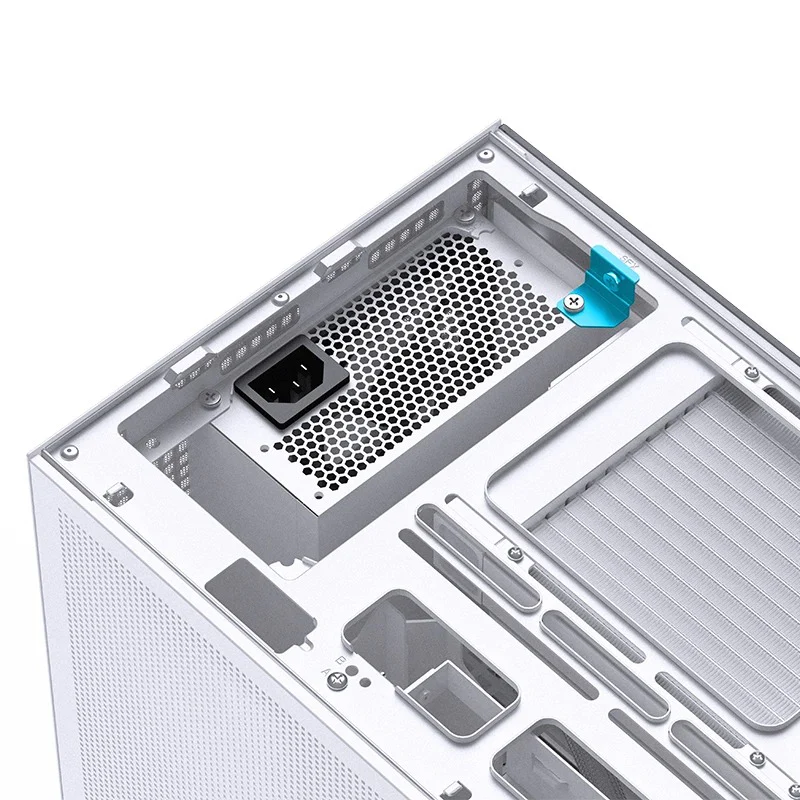

- PSU Clearance：Max.L200mm (not compatible with 16A plugs)
Specifications:
| Model | D32 PRO |
| Color | Black, White |
| Dimensions (w/o feet and other protrusions) | 384mm (D) × 207mm (W) × 302mm (H) |
| Dimensions (with feet and other protrusions) | 396mm (D) × 207mm (W) × 314mm (H) |
| Case Material | SPCC Steel (0.7mm + 0.8mm) |
| Motherboard Support | Mini-ITX / Micro-ATX (Regular) / Micro-ATX (Back-Connect, chassis must be switched to B mode) |
| Drive Bay | 2.5": Up to 4 (depends on other hardware configurations) 3.5": Up to 2 (shared with 2 × 2.5" mounts, depends on other hardware configurations) |
| Front I/O Port | USB3.2 Gen1 Type-A × 2 / USB3.2 Gen2 Type-C × 1 / AUDIO × 1 & MIC × 1 |

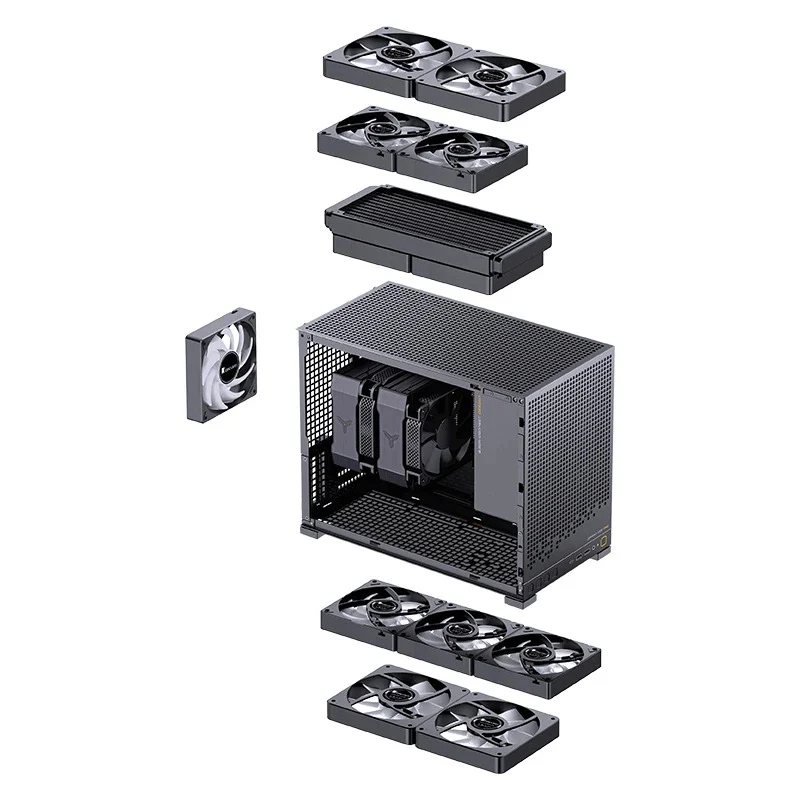

| Fan | Top: 2 × 120mm or 2 × 140mm Rear: 1 × 120mm Bottom: 3 × 120mm or 2 × 140mm (depends on other hardware configurations) |
| Radiator Support | Top, up to 240mm |
| ATX PS2 PSU Clearance | • When GPU is installed in the first PCI-E slot: max PSU length 150mm (recommended ≤140mm) • When GPU is installed in the second PCI-E slot: max PSU length 170mm (recommended ≤160mm) *This mounting position depends on the motherboard — refer to motherboard specifications. • When GPU length ≤288mm and power compartment partition is removed: PSU length limited to 200mm (not compatible with 16A plugs) |
| SFX PSU Support | SFX / SFX-L |
| CPU Air Cooler Clearance | A Mode: Up to 170mm (Intel) or 169mm (AMD) B Mode: Up to 164mm (Intel) or 163mm (AMD) |
| GPU Clearance | Up to 365mm |
| Weight | N.W. 4.6kg / G.W. 5.8kg |
Select PC Case Color
From $12.58
Original: $41.94
-70%Jonsbo D32 Pro M-ATX Computer Case (Black, White)—
$41.94
$12.58
Description
- Unmatched Price per Performance - 24L Volume offer A/B mode for MB( Standard MB and BTF MB), Achieve different compatibility optimization solutions,Easier to build your PC,More convenient.
- High Compatibility- Micro ATX case upgrade to support the main popular hardware , such as BTF motherboard, Max.Length 365mm GPU，ATX/SFX-LSFX PSU （16A plug except), 240AIO,163mm Height Air Cooler etc.
- Optimize visual design: Tempered side glass shows the Concise and neat working hardware.(Adjustable motherboard cable management cover to block visible complex wires)
- Optimized installation experience design: detachable PCI-E position unobstructed opening design, easy insertion of large graphics card
- Size：D396×W207×H314mm (Foot included)：
- MB support：MINI-ITX/MICRO-ATX standard /MICRO-ATX (Back-connect, the case needs to be switched to B mode)
- Drive Bay： 2.5": up to 4, depends on other hardware configurations,3.5": up to 2 (shared with the 2 x 2.5" mounts), depends on other hardware configurations (depends on other hardware configurations)
- PSU Clearance：Max.L200mm (not compatible with 16A plugs)
Specifications:
| Model | D32 PRO |
| Color | Black, White |
| Dimensions (w/o feet and other protrusions) | 384mm (D) × 207mm (W) × 302mm (H) |
| Dimensions (with feet and other protrusions) | 396mm (D) × 207mm (W) × 314mm (H) |
| Case Material | SPCC Steel (0.7mm + 0.8mm) |
| Motherboard Support | Mini-ITX / Micro-ATX (Regular) / Micro-ATX (Back-Connect, chassis must be switched to B mode) |
| Drive Bay | 2.5": Up to 4 (depends on other hardware configurations) 3.5": Up to 2 (shared with 2 × 2.5" mounts, depends on other hardware configurations) |
| Front I/O Port | USB3.2 Gen1 Type-A × 2 / USB3.2 Gen2 Type-C × 1 / AUDIO × 1 & MIC × 1 |
| Fan | Top: 2 × 120mm or 2 × 140mm Rear: 1 × 120mm Bottom: 3 × 120mm or 2 × 140mm (depends on other hardware configurations) |
| Radiator Support | Top, up to 240mm |
| ATX PS2 PSU Clearance | • When GPU is installed in the first PCI-E slot: max PSU length 150mm (recommended ≤140mm) • When GPU is installed in the second PCI-E slot: max PSU length 170mm (recommended ≤160mm) *This mounting position depends on the motherboard — refer to motherboard specifications. • When GPU length ≤288mm and power compartment partition is removed: PSU length limited to 200mm (not compatible with 16A plugs) |
| SFX PSU Support | SFX / SFX-L |
| CPU Air Cooler Clearance | A Mode: Up to 170mm (Intel) or 169mm (AMD) B Mode: Up to 164mm (Intel) or 163mm (AMD) |
| GPU Clearance | Up to 365mm |
| Weight | N.W. 4.6kg / G.W. 5.8kg |
