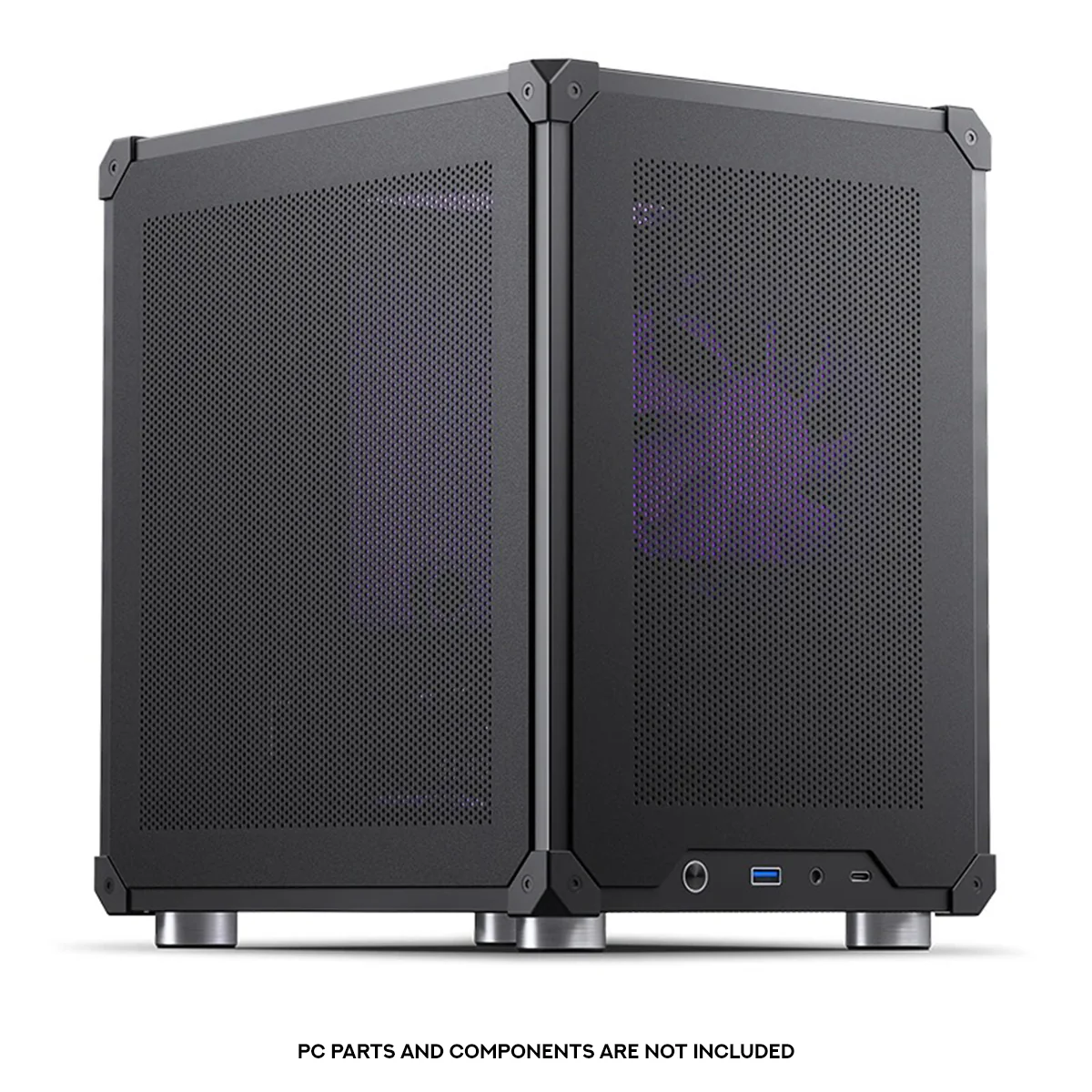

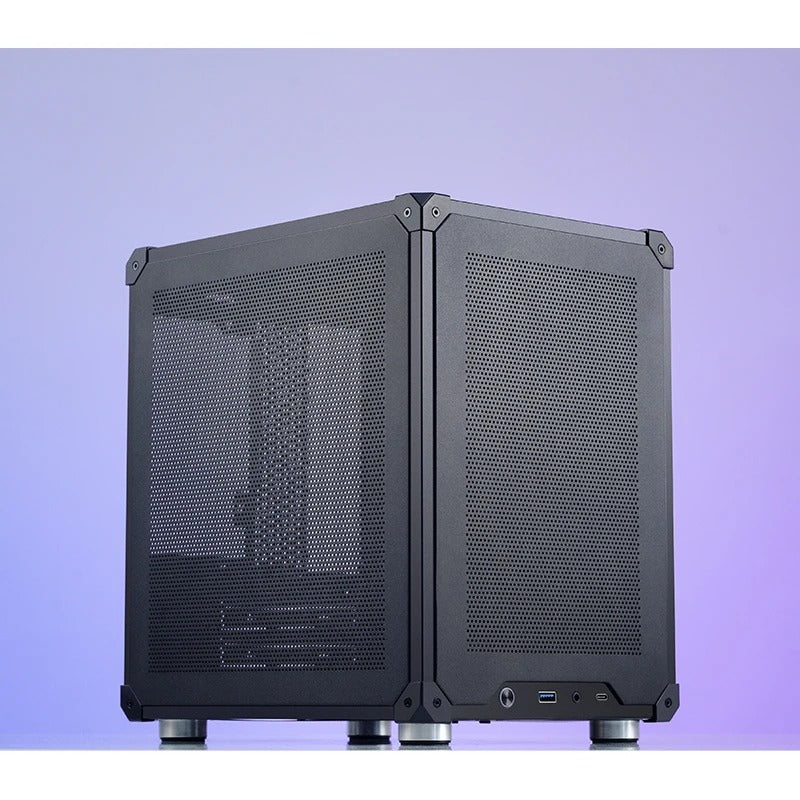

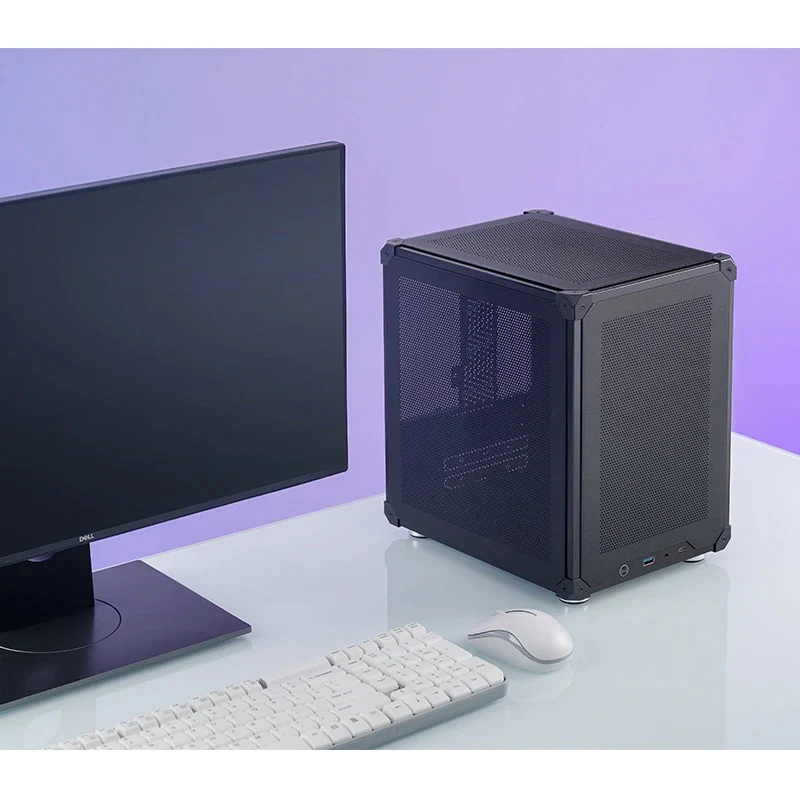

Jonsbo C6 Handle M-ATX Separated Cabinet Case (Black)

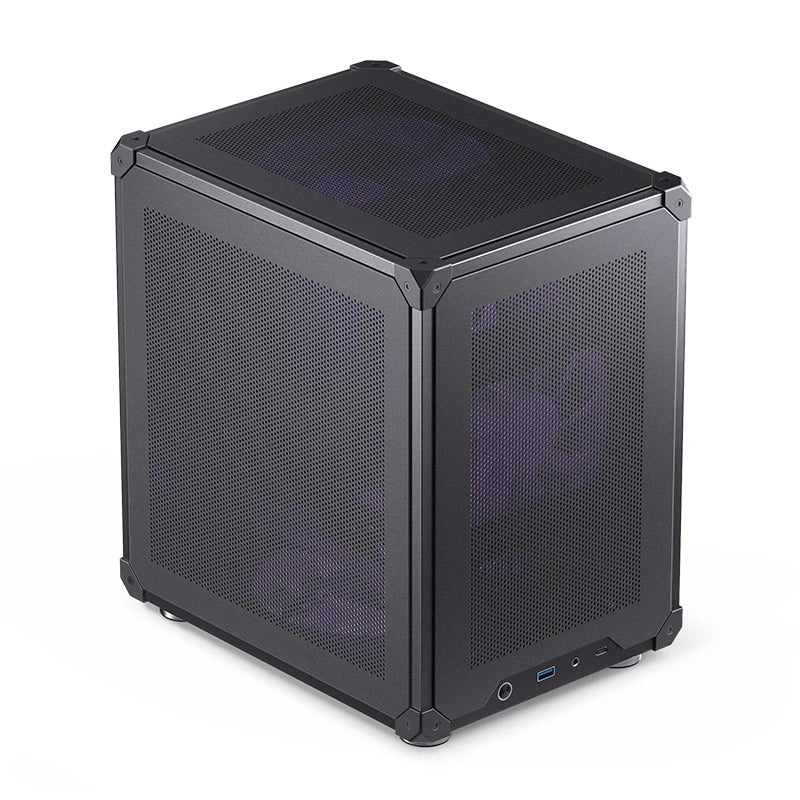

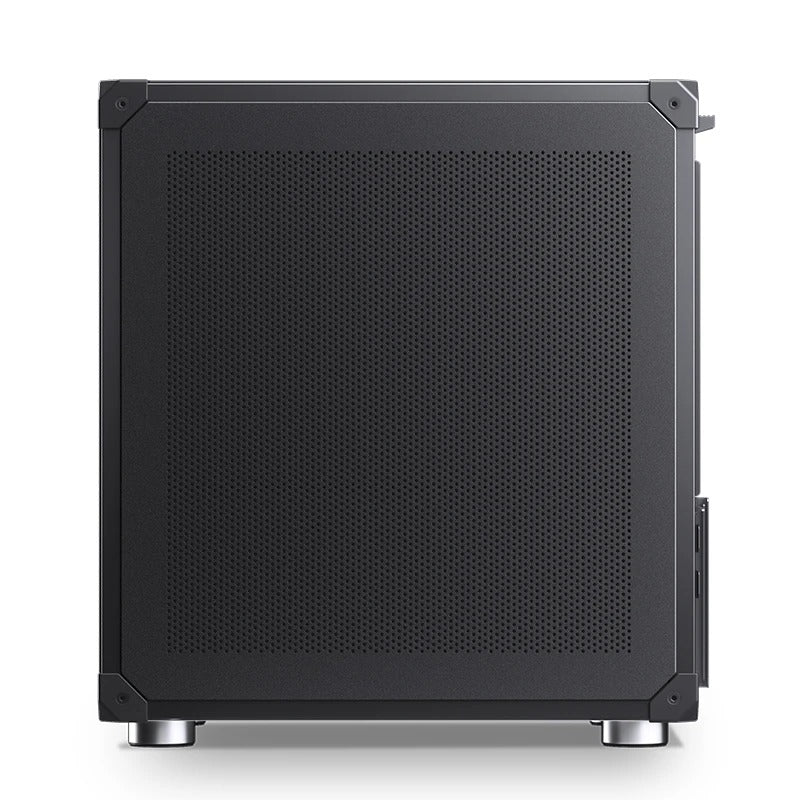

• Simple Compact Desktop Micro ATX PC case ,mesh chassis:Heat free-All sides in mesh, Front/Upper/Lower 3 fan positions

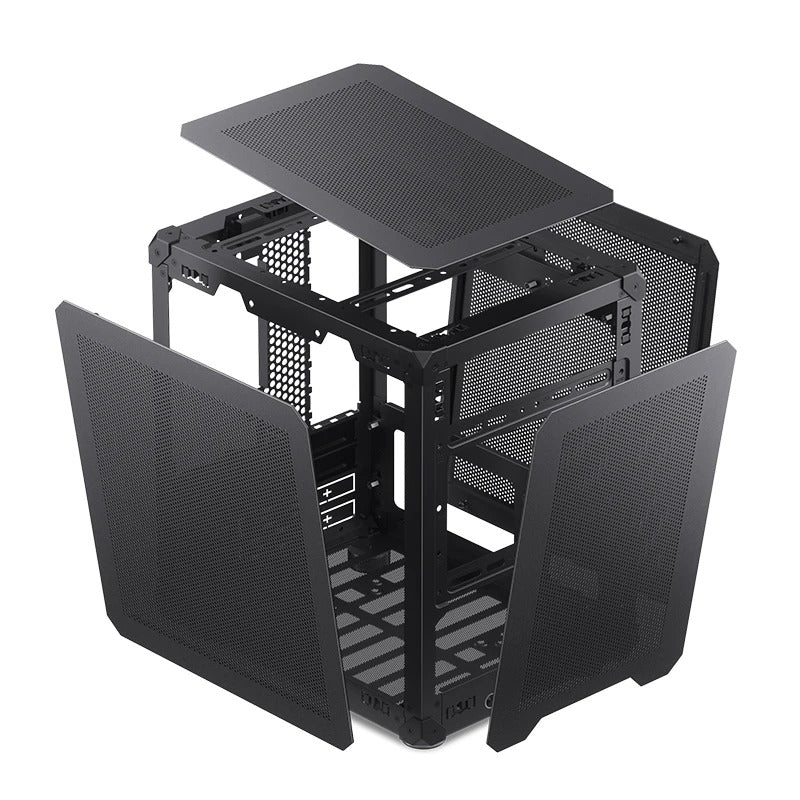

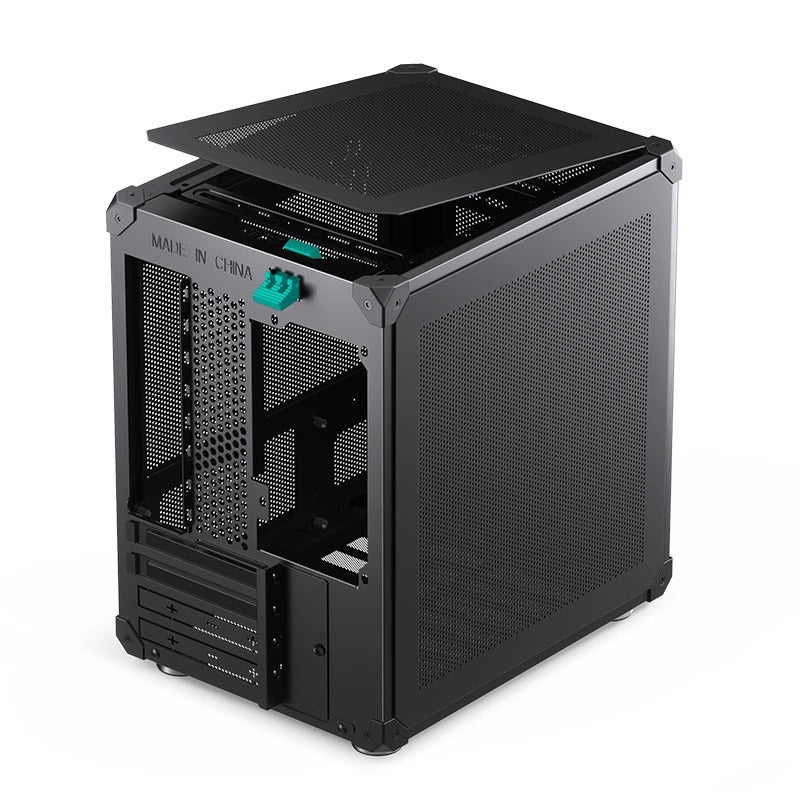

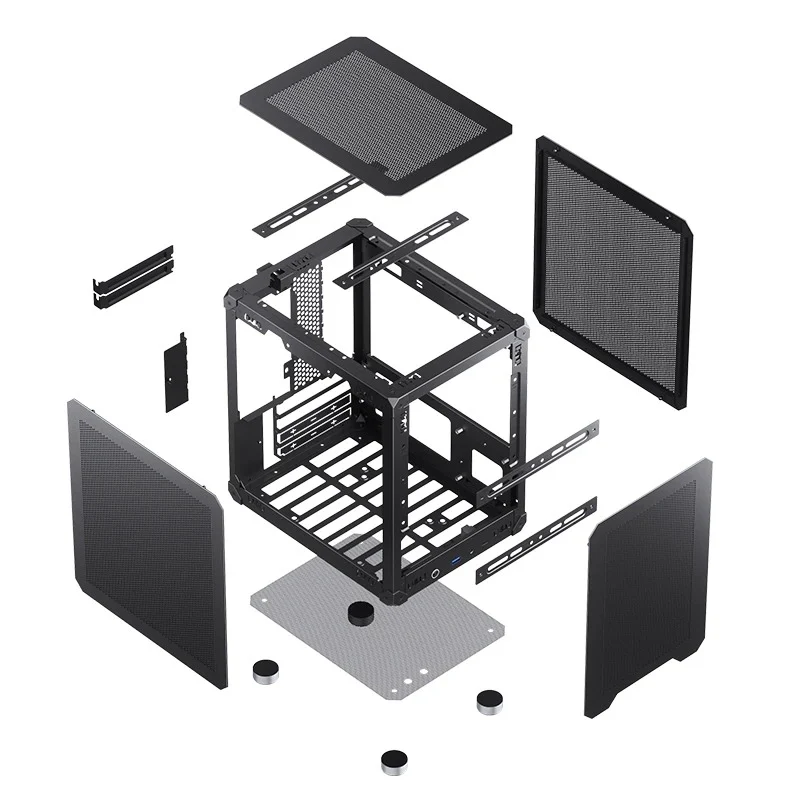

• Easy and quick disassembly design-Upper Cover/Side Panel Tool-free Open,Easier to build your PC,More convenient

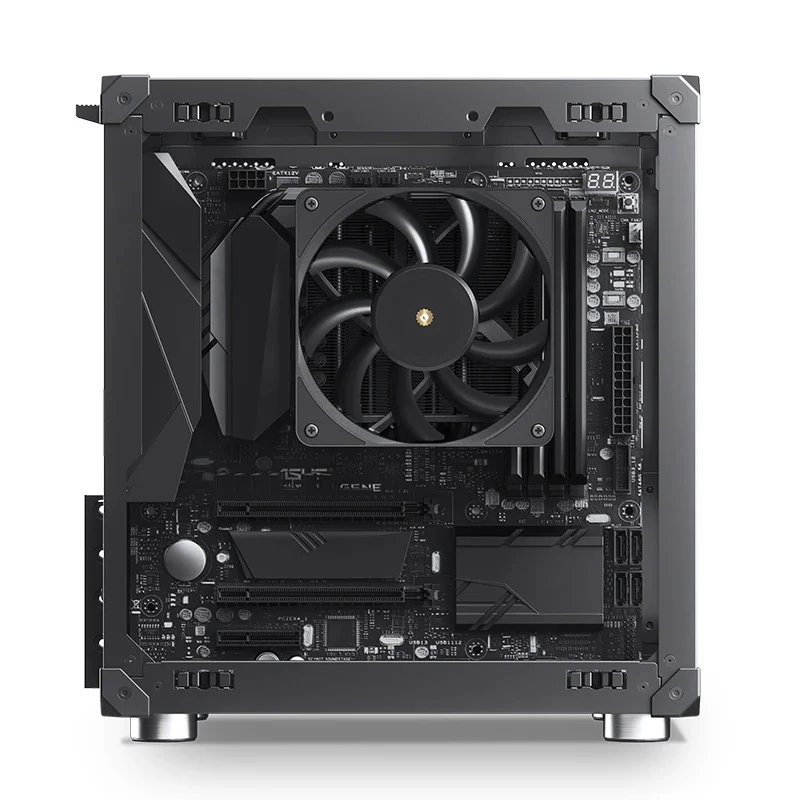

• Compatible motherboard: ITX/M-ATX ( 2 project references) Drive Bay:3.5HDD *1 or 2.5SSD*2 Front interface:Type-C(20PIN)/USB3.0*1/AUDIO*1+MIC*1 (2 IN 1)

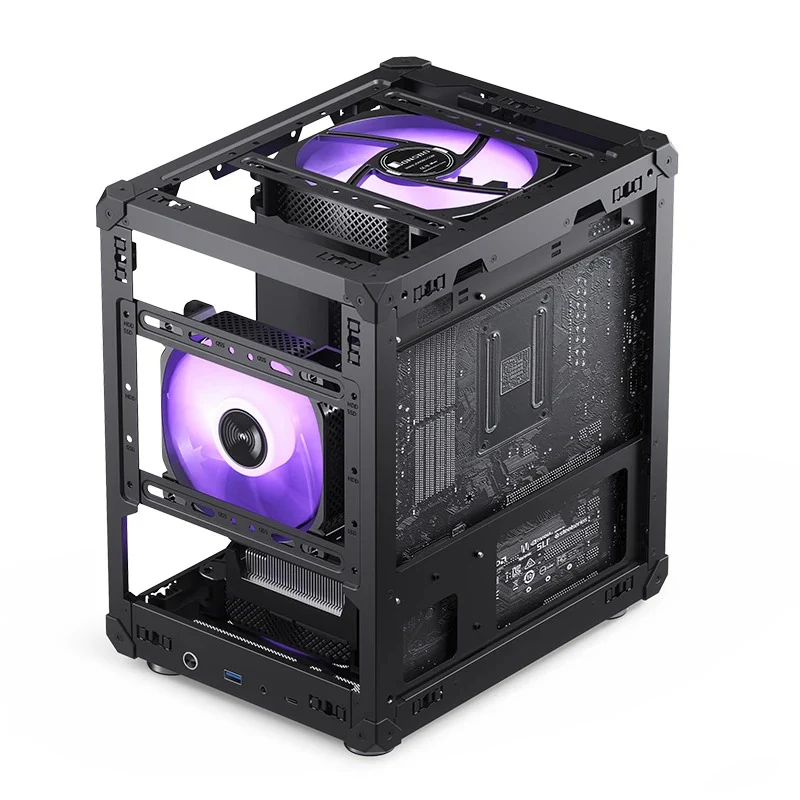

• ATX PSU :185mm,Cooler :75mm,GPU : 200-255mm Fan: Top plate 120mm*1 or 140mm*1 (Optional) ,Bottom 120mm or 140mm*1,Front 120mm*1or HDD

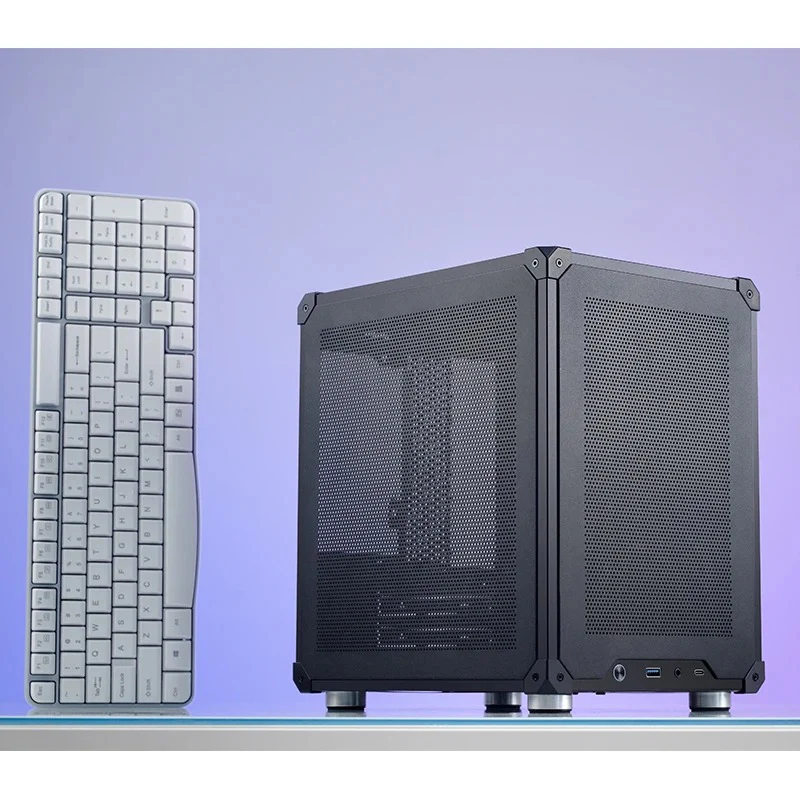

• Size :202mm(W) x266mm(D)x295.2mm(H) (Include the footpad)



Specifications:

Model	C6 Black
Dimension	202mm (W) × 266mm (D) × 295.2mm (H)
Material	0.7mm Steel

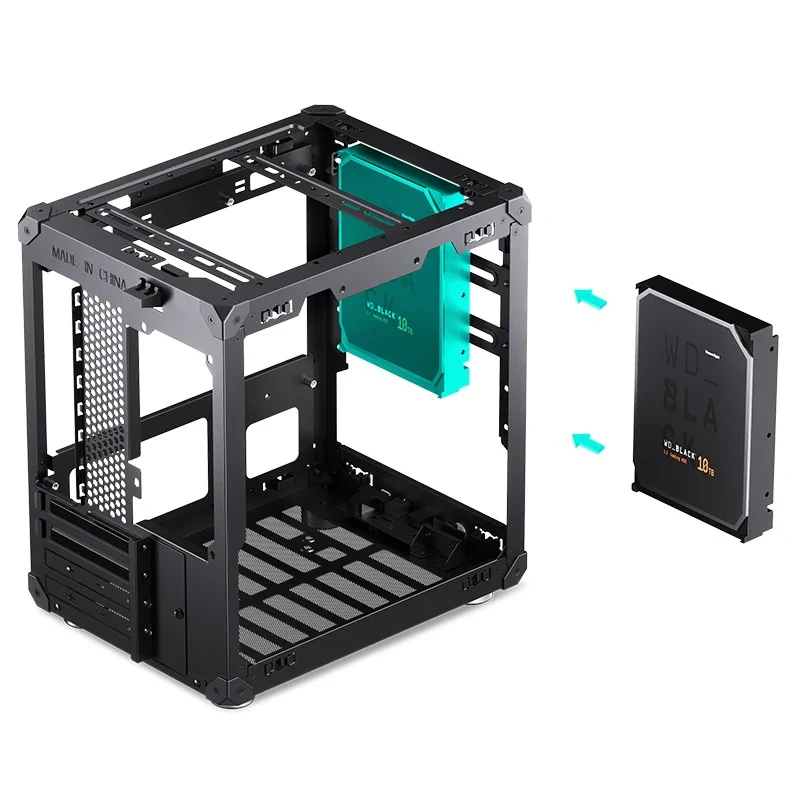

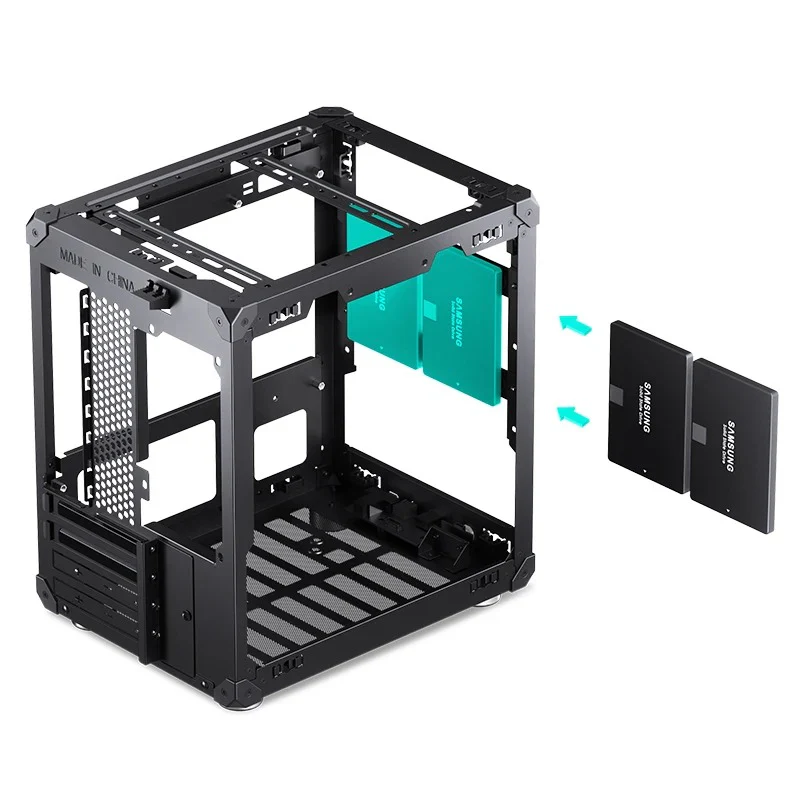

Drive Bay	2.5" SSD × 2 / 3.5" HDD × 1
Motherboard	ITX / M-ATX

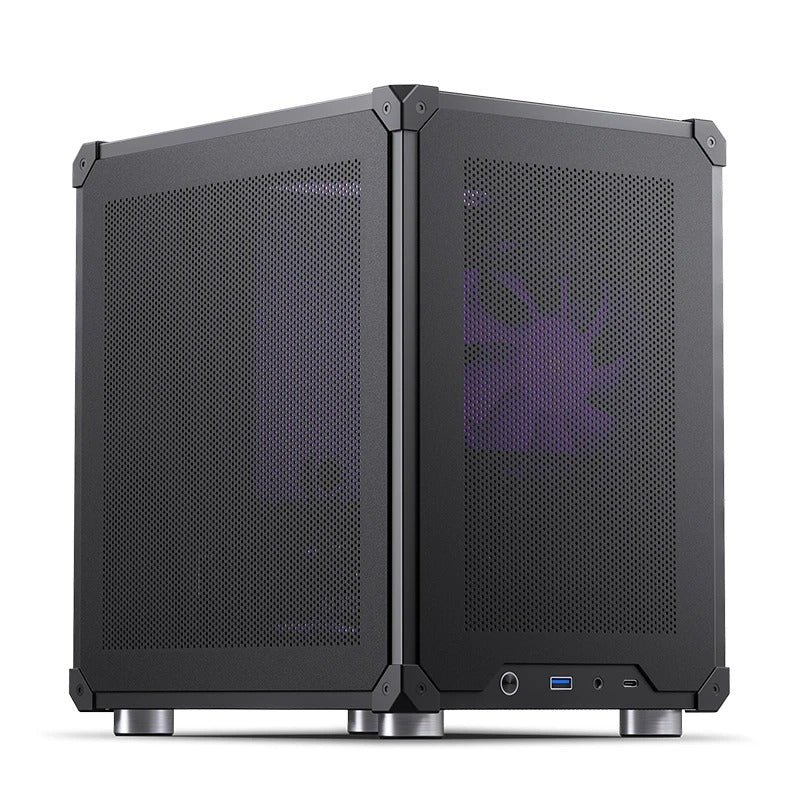

Front I/O Port	Type-C (20PIN) / USB3.0 × 1 / AUDIO × 1 + MIC × 1 (Headset + mic combined)
PSU Support	ATX ≤ 185mm
Max. CPU Cooler Height	≤ 75mm
Max. Display Card Length	≤ 200–255mm
Fan	Top: 120mm × 1 or 140mm × 1 Bottom: 120mm × 1 or 140mm × 1 Front: 120mm × 1 or HDD
Weight	Net 2.30kg
