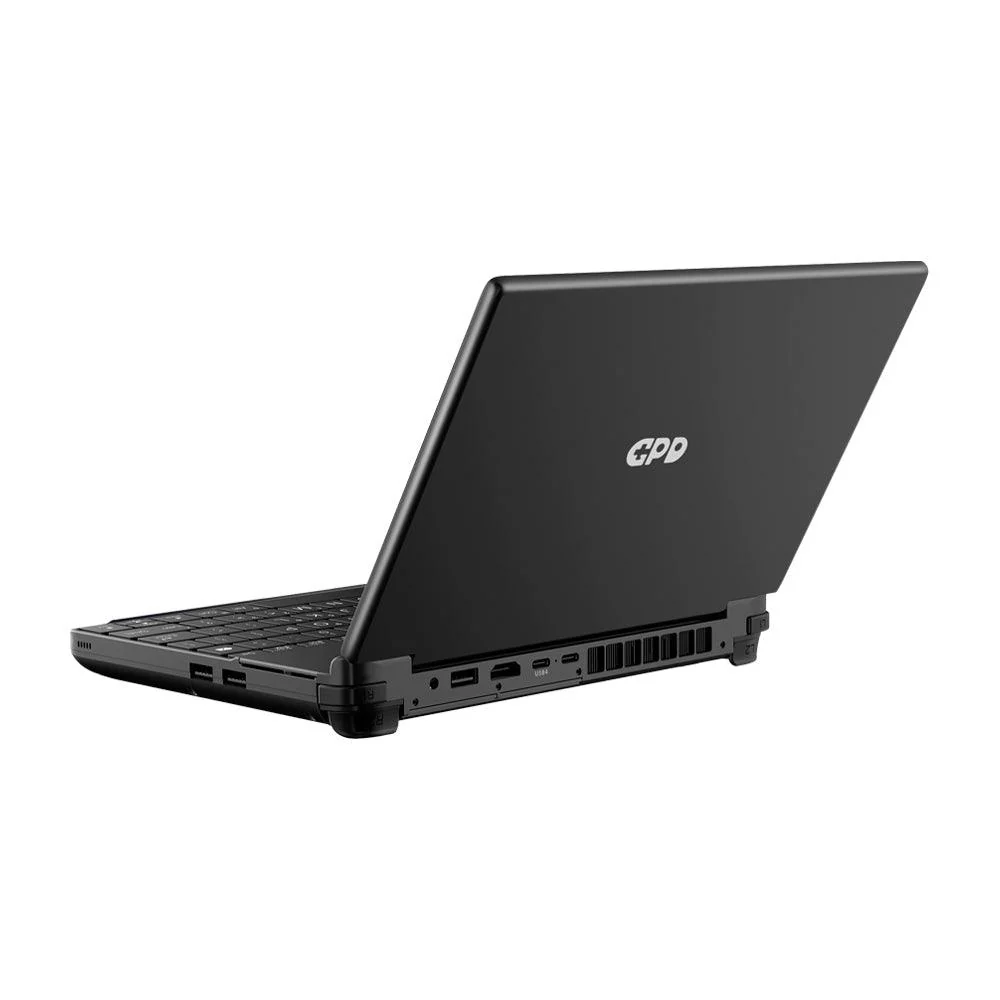

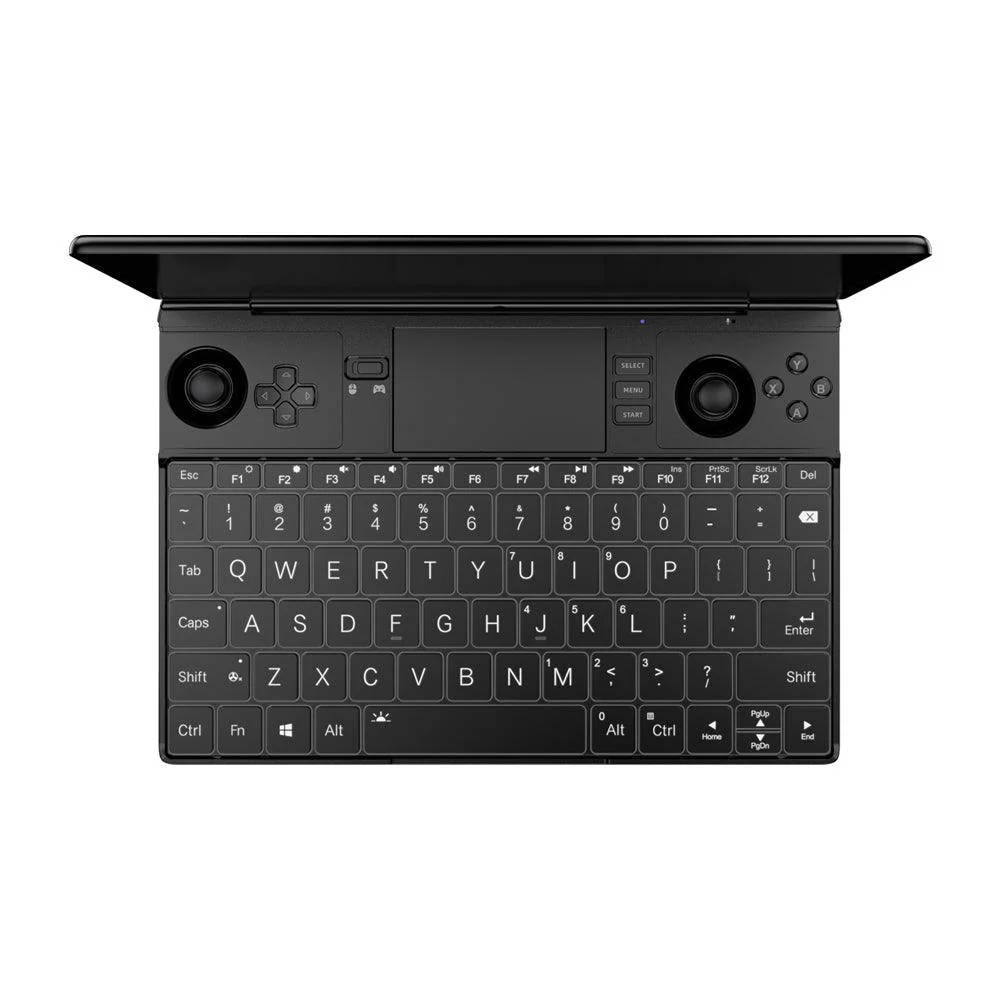

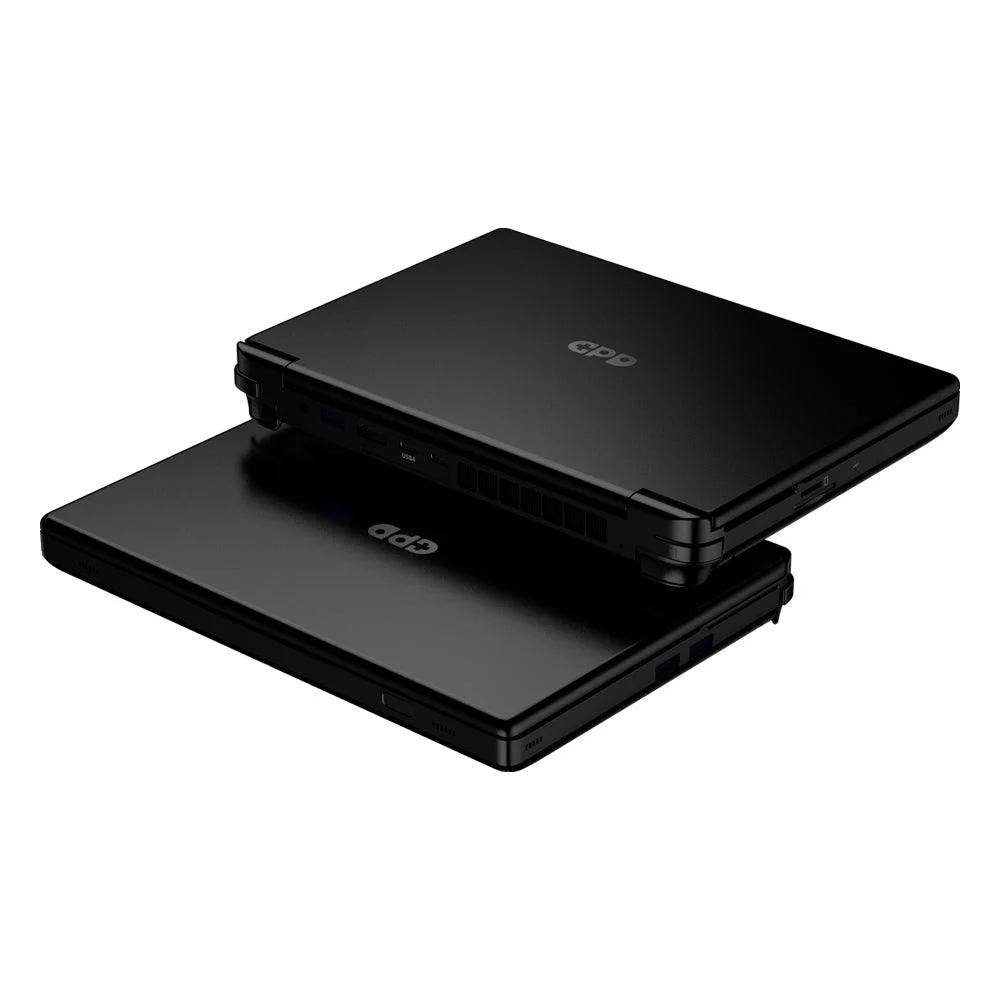

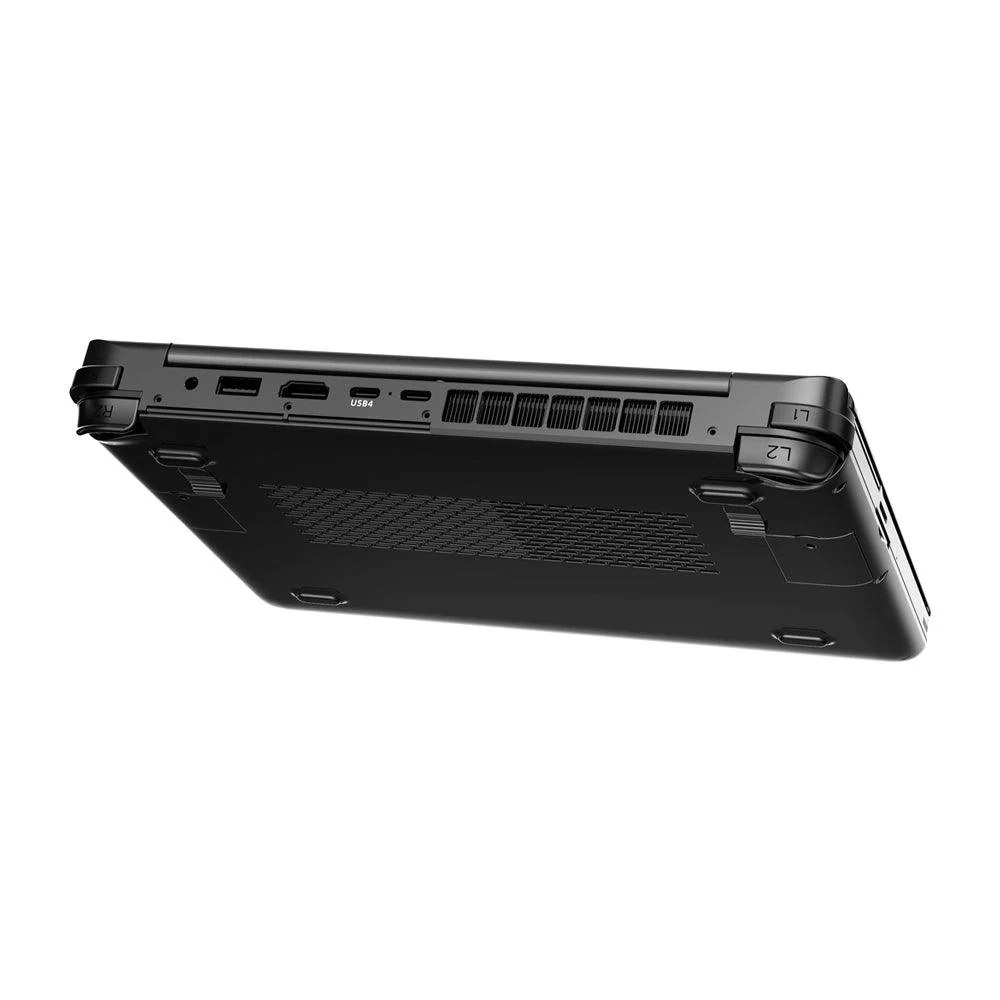

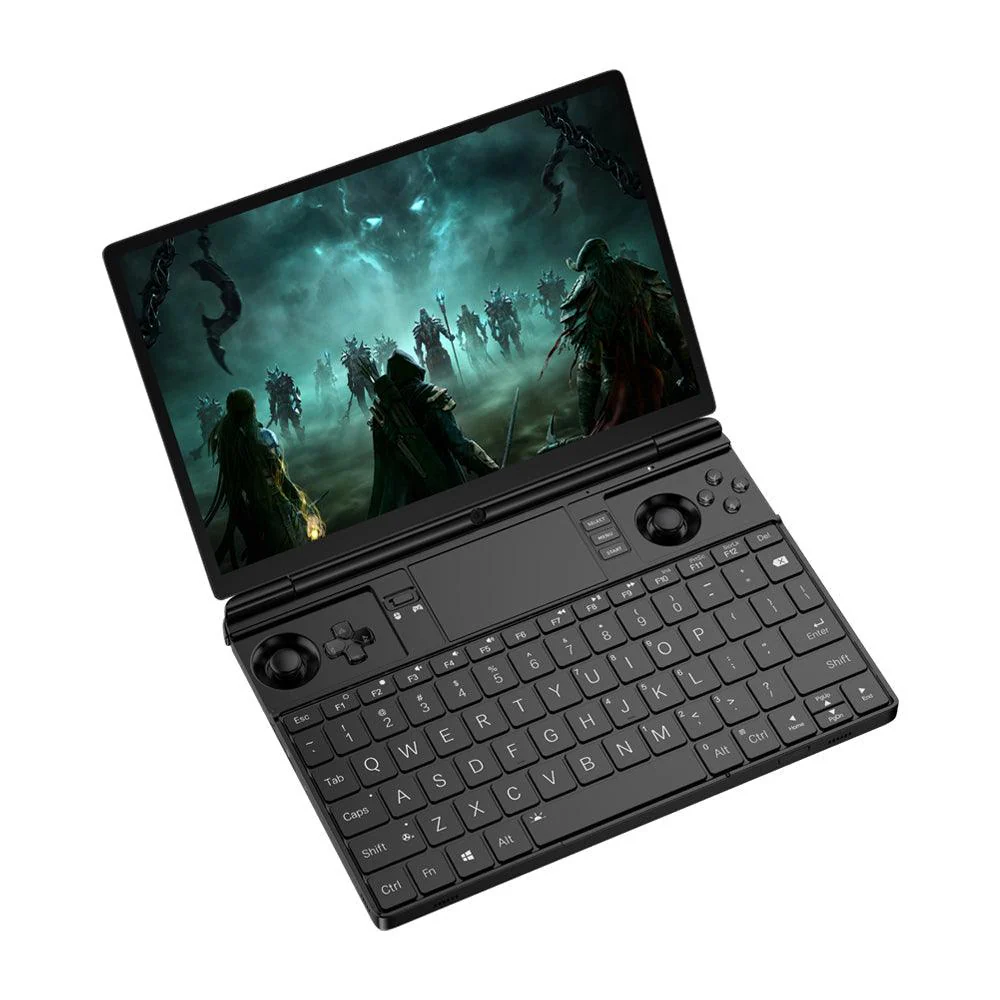

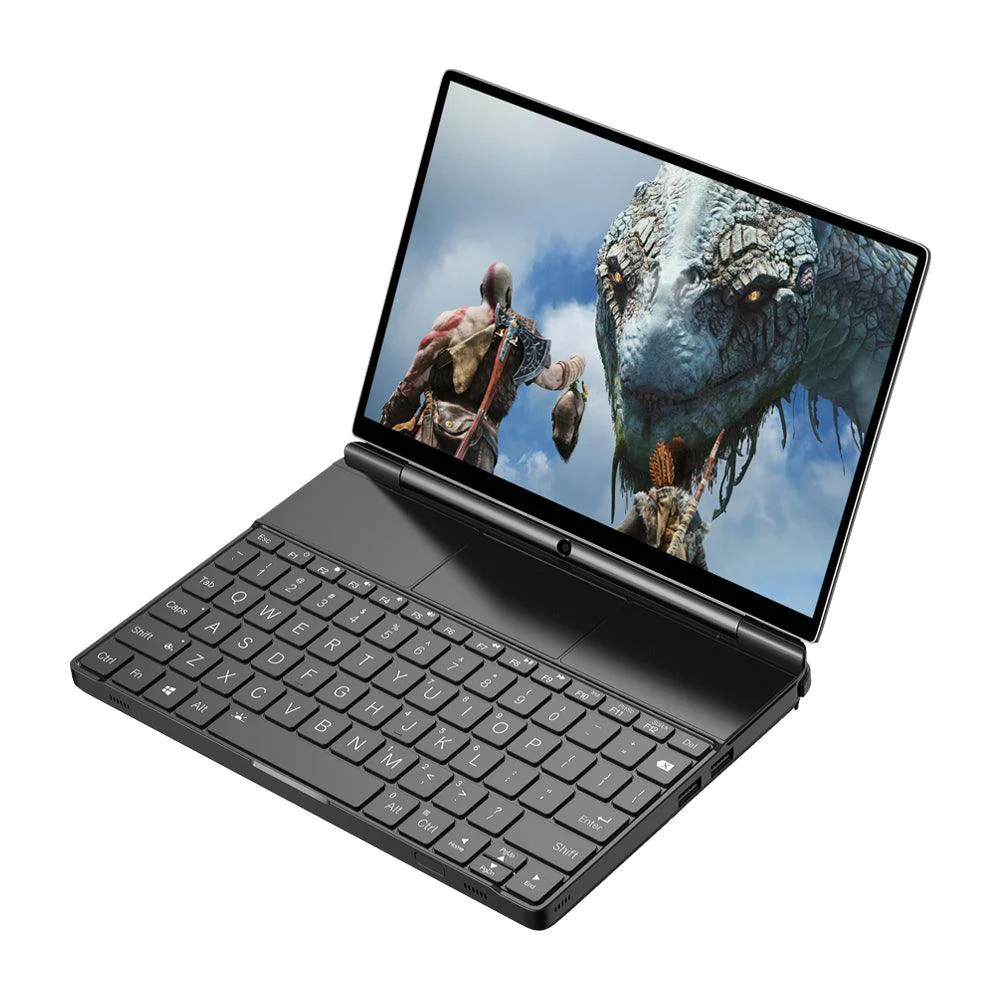

GPD Win Max 2 AMD Ryzen 7 6800U 16GB RAM + 1TB SSD Handheld Gaming PC + Win Max 2 Protection Case
GPD Win Max 2 AMD Ryzen 7 6800U 16GB RAM + 1TB SSD Handheld Gaming PC + Win Max 2 Protection Case
FULL SPECIFICATION
| Basic Information | Product Positioning | Handheld Game Laptop | |
| Operating System | Windows 11 Home 64bit | ||
| Display | Characteristic | Full Screen | |
| Touch Panel | Support, 10-point Touch Control，Supported (Requires Separate Purchase), Active Pen With 4096-level Pressure Sensitivity, Original Handwriting, Compatible With Surface Pen | ||
| Screen Type | Corning Gorilla Glass 5，IPS Technology | ||
| Screen Size | 10.1 Inches | ||
| Aspect Ratio | 16：10 | ||
| Screen Resolution | Default: 1920×1200，Maximum: 2560×1600 | ||
| Pixels Per Inch | 299 PPI | ||
| CPU | Product model | AMD Ryzen 7 6800U | |
| # of Performance-cores / # of Efficient-cores | 8C / 16T | ||
| Performance-core Max Turbo Frequency | 4.70 GHz | ||
| Efficient-core Max Turbo Frequency | |||
| Level 3 | 16 MB | ||
| Core Architecture | Zen3+ | ||
| Lithography | 6nm | ||
| TDP | 15W-28W | ||
| GPU | Graphics Card | ||
| Processor Graphics | AMD Radeon 680M | ||
| Graphics Max Dynamic Frequency | 2.2 GHz | ||
| Execution Unit | 12CU | ||
| Shader | 768 | ||
| Video Memory | |||
| 4K Image resolution | |||
| HDMI 2.1(TMDS) | 4096 x 2304 @60Hz | ||
| DP 1.4a | 7680 x 4320 @60Hz | ||
| eDP 1.4b | 4096 x 2304 @120Hz | ||
| DirectX | DX12，DX12.1，DX 12 Ultimate | ||
| OpenGL | |||
| Storage | 16GB RAM | ||
| LPDDR5 5200 MT/s | LPDDR5-6400 MT/s | ||
| Supports | |||
| M.2 SSD | |||
| Socket 3 × 2 | |||
| 1 × M.2（PCIe 4.0）NVMe 2280 SSD | |||
| 1 × M.2（PCIe 4.0）NVMe 2230 SSD | |||
| M.2（PCIe 3.0）2280 SSD 1TB，No Capacity Limit | |||
| PCIe 4.0 × 4 | |||
| NVMe 1.4 | |||
| Multimedia support | Audio System | Built-in Sound Chip + Intelligent Amplifier That Features High Energy Efficiency, High PSRR and Low Noise | |
| Loudspeakers | Built-in 4 Super Linear Speakers | ||
| Camera | Built-in Camera: 2 Million Pixels, Maximum Resolution: 1612×1212, Super Wide-angle, High Refresh Rate | ||
| Microphone | Built-in microphone | ||
| Network Communications | 4G LTE Module | Supports，Optional | |
| SIM Card Type：Nano-SIM | |||
| 4G Network：TD-LTE，FDD-LTE | |||
| 3G Network：WCDMA/TD-SCDMA/CDMA，2G Network：GSM | |||
| Frequency Band：2G：GSM900/1800MHz，3G：WCDMA B1/B8，TD-SCDMA B34/B39，CDMA BC0，4G：LTE TDD B34/B38/B39/B40/B41，LTE FDD B1/B3/B5/B8 | |||
| Wi-Fi 6 | IEEE 802.11 a/b/g/n/ac/ax, Support 2.4G/5G Dual Frequency Band, Dual Channel Maximum Transmission Rate 2402Mbps | ||
| MU-MIMO | Supports | ||
| Bluetooth | 5.2 | ||
| I/O Interface | Video / Data / Charging | 1×Thunderbolt 4（40Gbps） | 1×USB4（40Gbps） |
| 1×USB 3.2 Gen 2 Type-C | |||
| 3×USB 3.2 Gen 1 Type-A | |||
| HDMI 2.1 | |||
| microSDXC Slot | Bus interface: UHS-I | ||
| Video Speed Class: V30 | |||
| Application Performance Class: A2, Read: 160MB/s, Write: 120MB/s | |||
| Compatible: microSDHC / microSDXC / microSDUC | |||
| SD Slot | Bus interface: UHS-II | ||
| Video Speed Class: V90 | |||
| Read 312MB/s，Write: 312MB/s | |||
| Compatible: SDHC / SDXC / SDUC | |||
| Audio Port | 1×3.5mm Headphone/Microphone Combo Interface, Compatible With Apple Headphones (US Specification) | ||
| BIOS Reset Port | Supports | ||
| I/O | Power | Power Button With A Fingerprint Sensor | |
| Keyboard | QWERTY Keyboard Design，Backlight (2-level Brightness Control) | ||
| Indicator Lamp | Charging Indicator, Running Indicator, CapsLook Indicator, Fan Switch Indicator | ||
| TouchPad | Microsoft Precision TouchPad （PTP） | ||
| Mouse | The Joystick Simulates A Mouse, Requires Switching The Mode Handle/Mouse | ||
| Joystick | Hall Sensor Sticks, Stepless, Super Linear, No Dead Zone, Sink-in Design, Native Support For Down Pressure Sensitive L3 / R3 | ||
| Game Accessories Buttons | Analog Triggers | ||
| Game Function Buttons | Double Silk-printed Legends (ABXY, △○×□, Select, Start, Xbox (Menu)) | ||
| D-Pad | Siamese Arrow Keys | ||
| Handle Vibration | Double Vibration Motor | ||
| Sensor | 6-axis Gyroscope | ||
| Other Keys | Handle/Mouse Switch Button，2 Custom Physical Buttons | ||
| Battery | Battery Type | Li-polymer | |
| Battery Capacity | 67Wh | ||
| Battery Life | 3 Hours Of Heavy Use, 6-8 Hours Of Moderate Use, 14 Hours Of Light Use, Depending On The Specific Environment Of Use | ||
| Appearance | Weight | 1005g | |
| Size | 227×160×23 mm | ||
| Shell Material | A and C Sides Are Made of 6061 Aluminum-magnesium Alloy, LG-DOW 121H Aviation ABS | ||
| Shell Color | Gun color | ||
| Covers | Magnetic Suction Type, Can Be Stored Inside The Shell | ||
| Thermal Design | Active Cooling, Big Fan + Dual Heat Pipe | ||
| Accessories | GPD WIN Max 2 × 1 | ||
| 100W PD Power Adapter（20V==5A，20V==3.25A）×1 | |||
| Supports 100W, c-c Power Cord With E-mark | |||
| Warranty Card ×1 | |||
| Product Manual ×1 | |||
| Warranty Information | Warranty Policy | Global Warranty | |
| Warranty Time | Device 1 year, Charger 1 year | ||
| Official Hotline | + 86 755 86572275 | ||
| Chinese Website | www.Softwincn.com | ||
| English Website | www.Gpd.hk | ||
