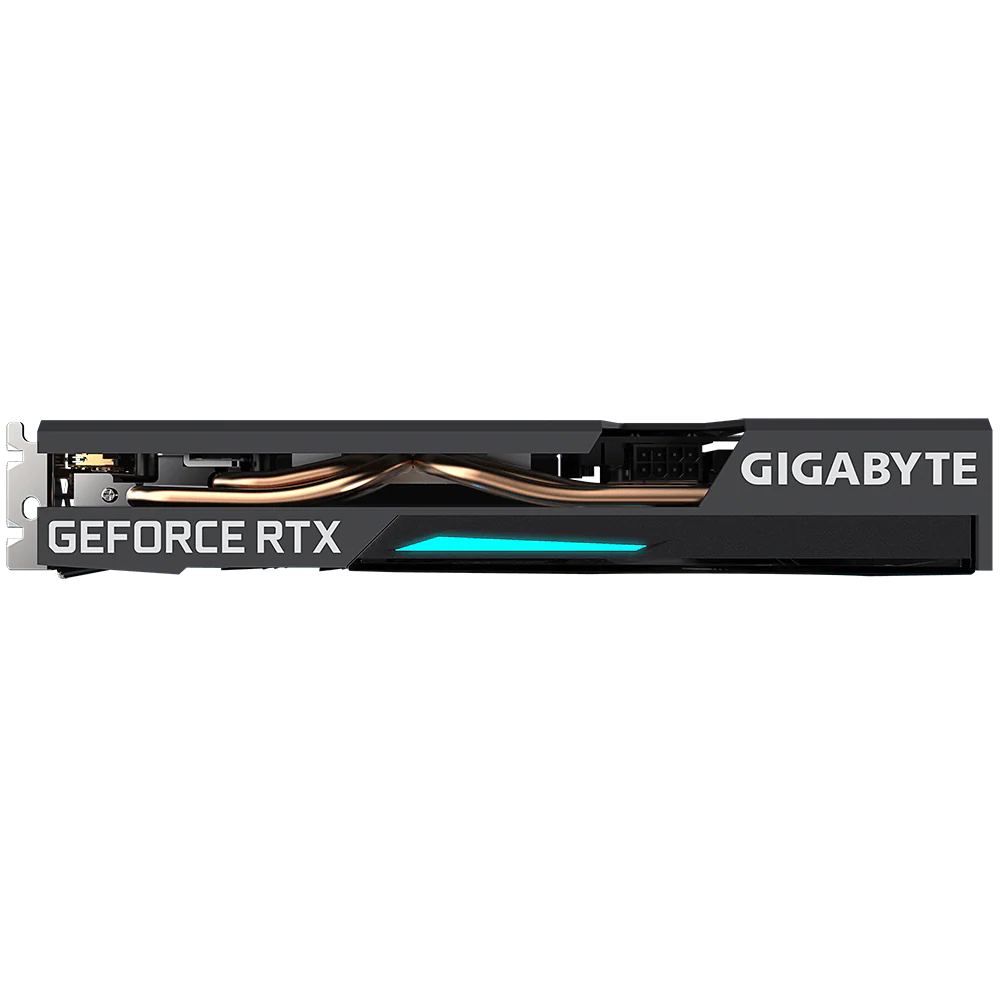

GIGABYTE GeForce RTX 3060 Ti Eagle OC 8GB GDDR6 Graphics Card
FEATURES
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3060 Ti
Integrated with 8GB GDDR6 256-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
100mm unique blade fans
RGB Fusion 2.0
Protection back plate
WINDFORCE 2XCOOLING SYSTEM
The WINDFORCE 2X cooling system features 2X100mm unique blade fans, alternate spinning, 4 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation
SPECIFICATIONS:
| Graphics Processing | GeForce RTX™ 3060 Ti |
| Core Clock | 1695 MHz (Reference Card: 1665 MHz) |
| CUDA® Cores | 4864 |
| Memory Clock | 14000 MHz |
| Memory Size | 8 GB |
| Memory Type | GDDR6 |
| Memory Bus | 256 bit |
| Memory Bandwidth (GB/sec) | 448 GB/s |
| Card Bus | PCI-E 4.0 x 16 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| Card size | L=242 W=124 H=41 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 600W |
| Power Connectors | 8 pin*1 |
| Output | DisplayPort 1.4a *2 HDMI 2.1 *2 |
| SLI Support | N/A |
Description
FEATURES
NVIDIA Ampere Streaming Multiprocessors
2nd Generation RT Cores
3rd Generation Tensor Cores
Powered by GeForce RTX™ 3060 Ti
Integrated with 8GB GDDR6 256-bit memory interface
WINDFORCE 2X Cooling System with alternate spinning fans
100mm unique blade fans
RGB Fusion 2.0
Protection back plate
WINDFORCE 2XCOOLING SYSTEM
The WINDFORCE 2X cooling system features 2X100mm unique blade fans, alternate spinning, 4 composite copper heat pipes direct touch GPU, 3D active fan and Screen cooling, which together provide high efficiency heat dissipation
SPECIFICATIONS:
| Graphics Processing | GeForce RTX™ 3060 Ti |
| Core Clock | 1695 MHz (Reference Card: 1665 MHz) |
| CUDA® Cores | 4864 |
| Memory Clock | 14000 MHz |
| Memory Size | 8 GB |
| Memory Type | GDDR6 |
| Memory Bus | 256 bit |
| Memory Bandwidth (GB/sec) | 448 GB/s |
| Card Bus | PCI-E 4.0 x 16 |
| Digital max resolution | 7680x4320 |
| Multi-view | 4 |
| Card size | L=242 W=124 H=41 mm |
| PCB Form | ATX |
| DirectX | 12 Ultimate |
| OpenGL | 4.6 |
| Recommended PSU | 600W |
| Power Connectors | 8 pin*1 |
| Output | DisplayPort 1.4a *2 HDMI 2.1 *2 |
| SLI Support | N/A |
