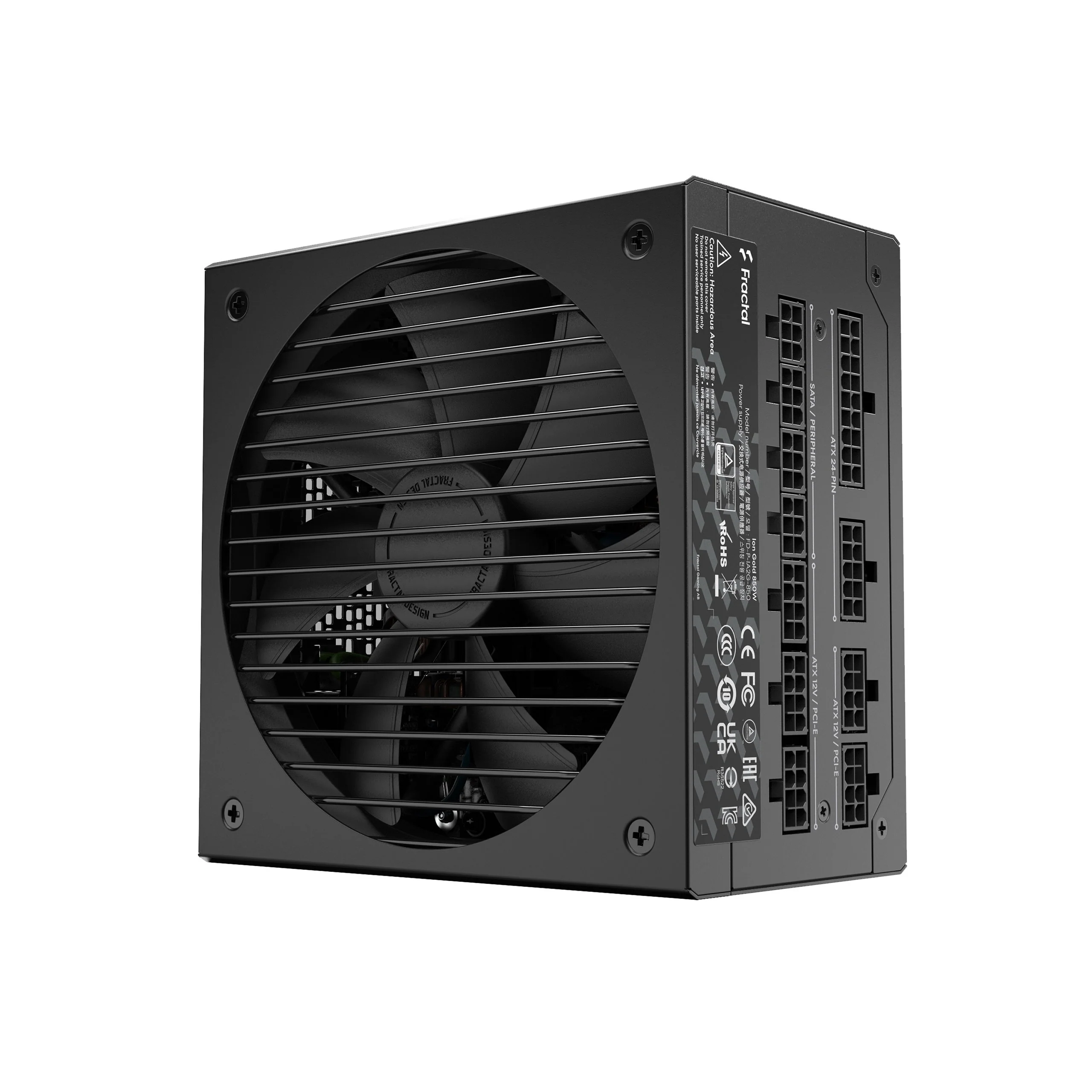

Fractal Design Ion Gold 850W Fully Modular Power Supply (FD-P-IA2G-850)

Ion Gold 850W

The Ion Gold ATX is a high-performance power supply, featuring great electrical performance, quiet operation and a big 140 mm Dynamic series fan. Tailored specifically for anyone looking for a high-quality power supply at a competitive price, the Ion Gold comes packed with capability.

80PLUS® Gold Efficiency rating for reduced noise and energy consumption
Premium Japanese 105°C capacitor(s) on the primary side for superior reliability and durability
Fully modular design for reduced clutter and maximum ease of installation

Specification:

General Specification	80PLUS® certification Gold Modular cables Fully modular Fan type 140 mm LLS bearing Fractal Design Dynamic series fan Maximum operating temperature (full load) 40°C, 50°C at 80% load Semi-passive operation No Capacitors Primary side: Japanese 105° main bulk capacitor(s), Secondary side: Taiwanese 105°C electrolytic & solid-state capacitors Life expectancy 100,000 hours PSU specification compliance ATX12V 2.52; EPS12V 2.92 PSU color Black Cable type Modular 24-pin cable: Black wires in braided sleeve, Other modular cables: Flat black wires Input voltage 100-240V AC Input frequency 50-60 Hz Input current 10A/5A Protection features Over voltage protection, Under voltage protection, Over-power protection, Short circuit protection, Over current protection, Over temperature protection Standby efficiency ErP 2013 (<0.45W @ 230 VAC, 45mA load on +5Vsb) Sleep state compliance C6/C7 compatible Approvals & certifications CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Connectors	ATX 24-pin 1 EPS/ATX12V 2 PCIe 6 SATA 8 Peripheral 3
Cable Configuration (length in mm between connectors)	ATX 24-pin 500 ATX 12V 4+4 pin 600 EPS12V 8-pin 600 PCIe 6+2 pin 550+150 SATA 500+150+150+150 Peripheral 500+150+150
DC Output	3.3V 22A 5V 22A 3.3V and 5V combined 120W 12V 70.8A -12V 0.3A +5Vsb 3A Total Power 850W
Other	Package contents Ion Gold power supply, Modular cables, Screw pack with velcro cable ties, AC power cord (localized), User manual Unit dimensions (LxWxH) 150 x 150 x 86 mm Net weight (unit only) 2.41 kg Package dimensions (LxWxH) 300 x 210 x 110 mm Package weight 2.81 kg

$125.98

Fractal Design Ion Gold 850W Fully Modular Power Supply (FD-P-IA2G-850)—

$125.98

Fractal Design Ion Gold 850W Fully Modular Power Supply (FD-P-IA2G-850)—

$125.98

Description

Ion Gold 850W

80PLUS® Gold Efficiency rating for reduced noise and energy consumption
Premium Japanese 105°C capacitor(s) on the primary side for superior reliability and durability
Fully modular design for reduced clutter and maximum ease of installation

Specification:

General Specification	80PLUS® certification Gold Modular cables Fully modular Fan type 140 mm LLS bearing Fractal Design Dynamic series fan Maximum operating temperature (full load) 40°C, 50°C at 80% load Semi-passive operation No Capacitors Primary side: Japanese 105° main bulk capacitor(s), Secondary side: Taiwanese 105°C electrolytic & solid-state capacitors Life expectancy 100,000 hours PSU specification compliance ATX12V 2.52; EPS12V 2.92 PSU color Black Cable type Modular 24-pin cable: Black wires in braided sleeve, Other modular cables: Flat black wires Input voltage 100-240V AC Input frequency 50-60 Hz Input current 10A/5A Protection features Over voltage protection, Under voltage protection, Over-power protection, Short circuit protection, Over current protection, Over temperature protection Standby efficiency ErP 2013 (<0.45W @ 230 VAC, 45mA load on +5Vsb) Sleep state compliance C6/C7 compatible Approvals & certifications CE, FCC, KCC, TUV, cTUVus, EAC, RCM, CCC, BSMI, CB, RoHS, WEEE
Connectors	ATX 24-pin 1 EPS/ATX12V 2 PCIe 6 SATA 8 Peripheral 3
Cable Configuration (length in mm between connectors)	ATX 24-pin 500 ATX 12V 4+4 pin 600 EPS12V 8-pin 600 PCIe 6+2 pin 550+150 SATA 500+150+150+150 Peripheral 500+150+150
DC Output	3.3V 22A 5V 22A 3.3V and 5V combined 120W 12V 70.8A -12V 0.3A +5Vsb 3A Total Power 850W
Other	Package contents Ion Gold power supply, Modular cables, Screw pack with velcro cable ties, AC power cord (localized), User manual Unit dimensions (LxWxH) 150 x 150 x 86 mm Net weight (unit only) 2.41 kg Package dimensions (LxWxH) 300 x 210 x 110 mm Package weight 2.81 kg
