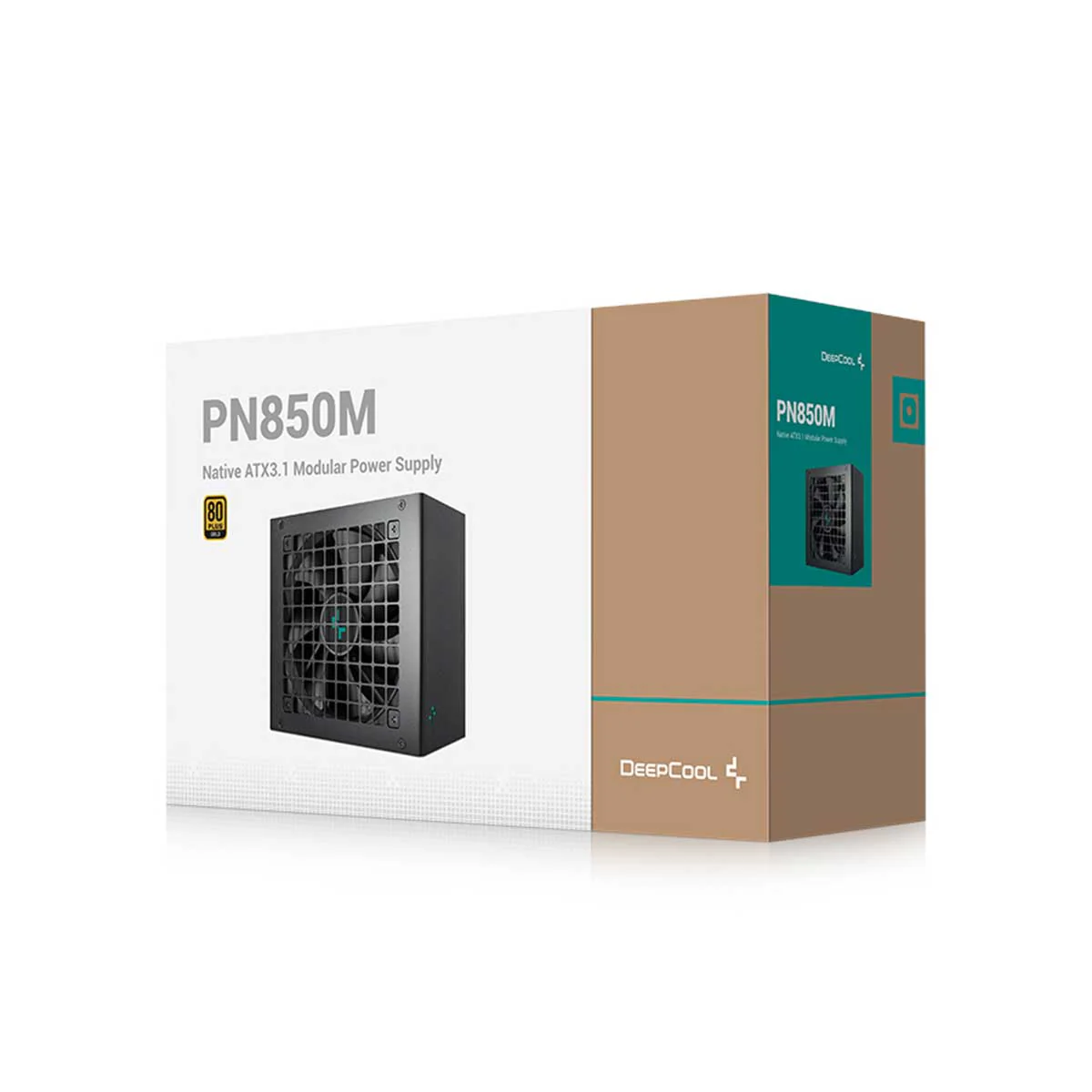

Deepcool PN850M 850W 80+ Gold Native ATX3.1 Modular Power Supply
PN850M
The DeepCool PN850M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS/PCIe ports, the PN850M provides stable power for a wide range of modern high-power components.
Technical Spec:
| Type | ATX12V V3.1 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| Efficiency certification | 80Plus Gold |
| Fan Size | 120mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 - 40℃ |
| Regulatory | CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/中国 RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
$29.22
Original: $97.41
-70%Deepcool PN850M 850W 80+ Gold Native ATX3.1 Modular Power Supply—
$97.41
$29.22
Description
PN850M
The DeepCool PN850M is a new power supply that meets the latest Intel ATX 3.1 and PCIe 5.1 standard. With a dedicated 12V-2x6, 5 EPS/PCIe ports, the PN850M provides stable power for a wide range of modern high-power components.
Technical Spec:
| Type | ATX12V V3.1 |
| Product Dimensions | 150×140×86mm (W x L x H) |
| Efficiency certification | 80Plus Gold |
| Fan Size | 120mm |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Full Bridge SRC LLC + DC to DC |
| Capacitors | Japanese Bulk Capacitor |
| Power Good Signal | 100-150ms |
| Hold Up Time | ≥16ms(80% Load) |
| Efficiency | ≥90% Under Typical Load(50% Loading) |
| Protection | OPP/OVP/SCP/OTP/OCP/UVP/SIP/NLO |
| Operation Temperature | 0 - 40℃ |
| Regulatory | CE/FCC/CCC/cTUVus/RCM/EAC/BIS/TUV-RH |
| Erp Regulation | ErP 2014 |
| Environment Protection | WEEE/中国 RoHS/Triman/P65 |
| MTBF | 100,000 Hours |
