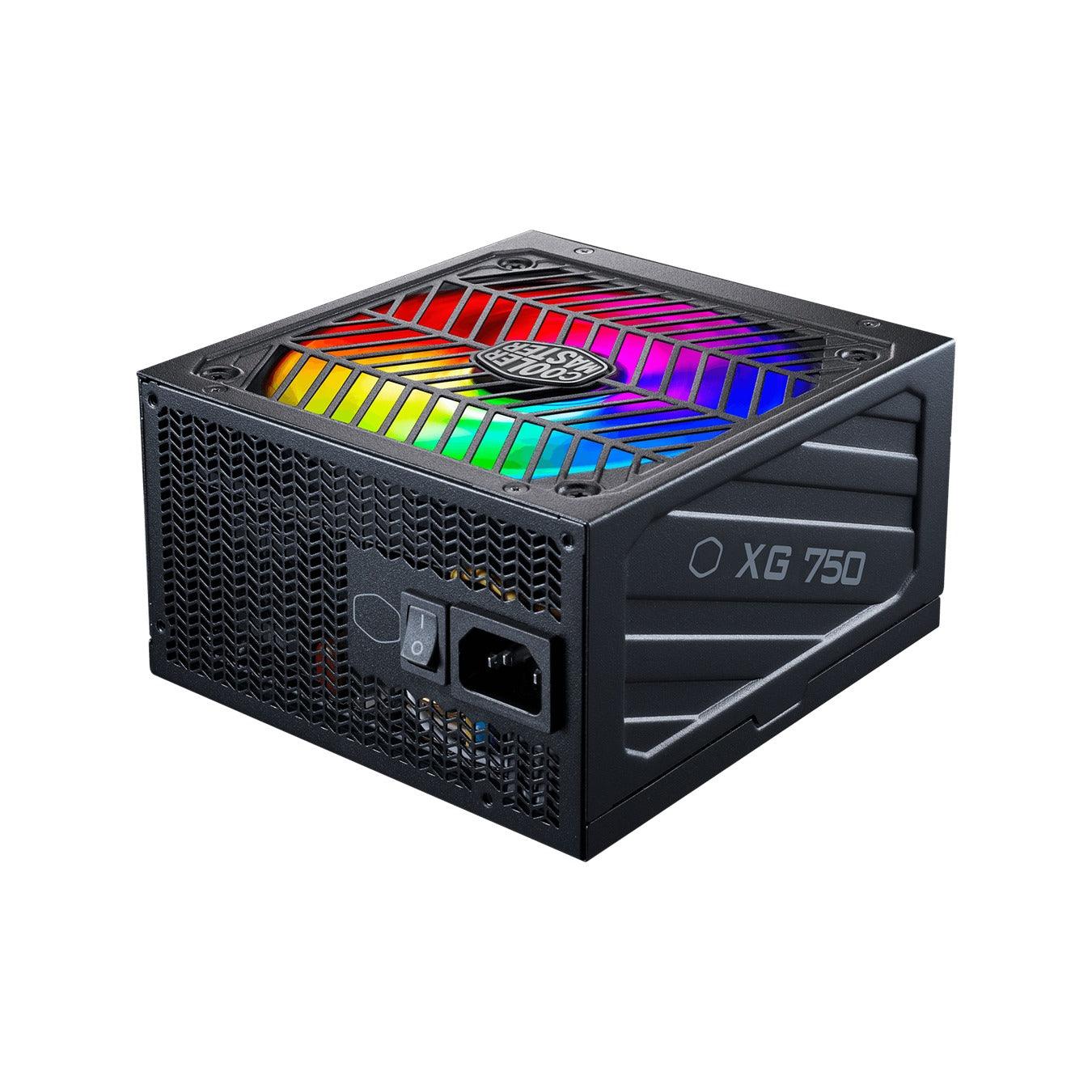

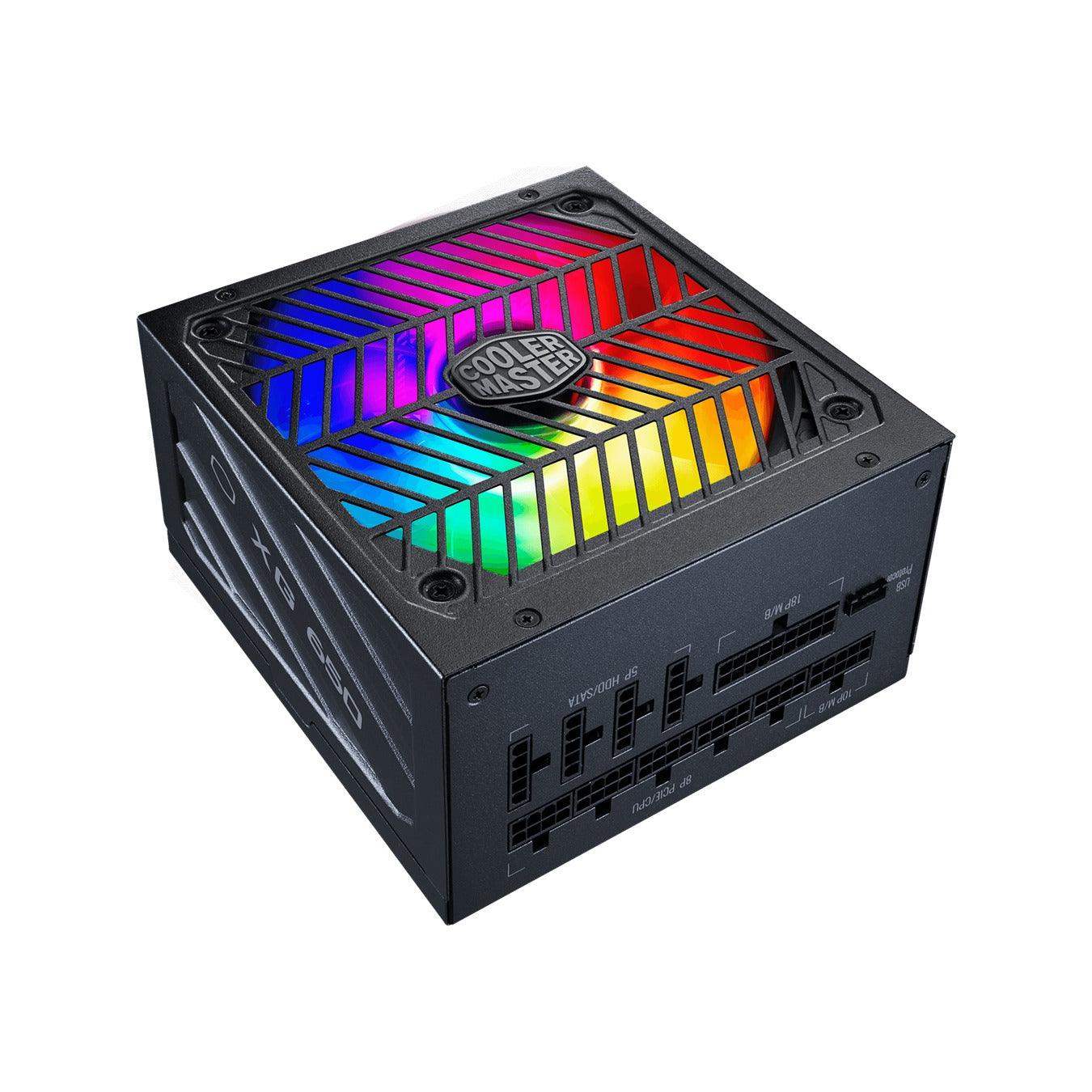

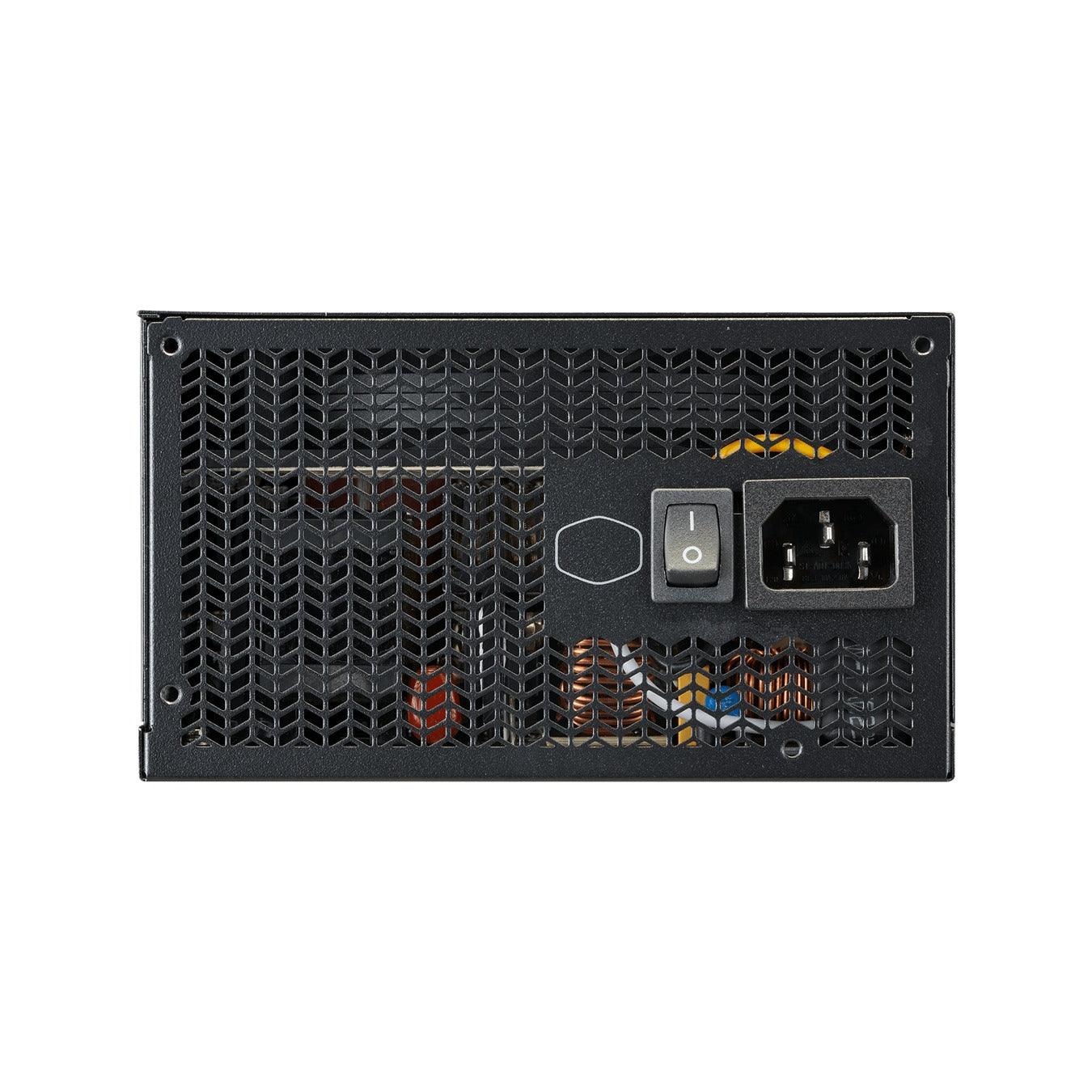

Cooler Master XG750 Plus Platinum ATX Full Modular ARGB Power Supply
XG750 PLUS PLATINUM
FULL MODULAR 80 PLUS PLATINUM ARGB POWER SUPPLY WITH DIGITAL OPTIONS
Intel ATX 12V Version 2.53
80 PLUS Platinum Certified

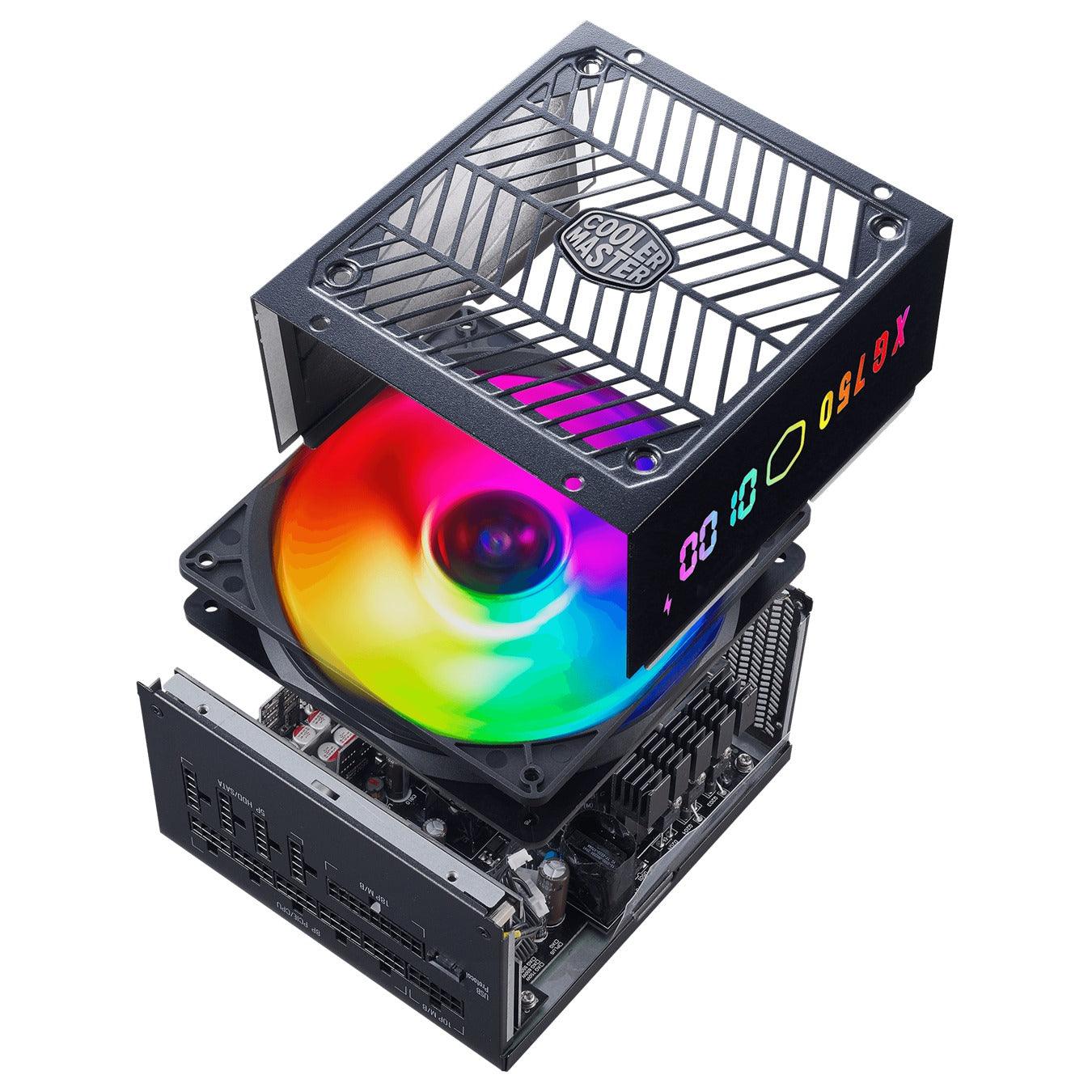

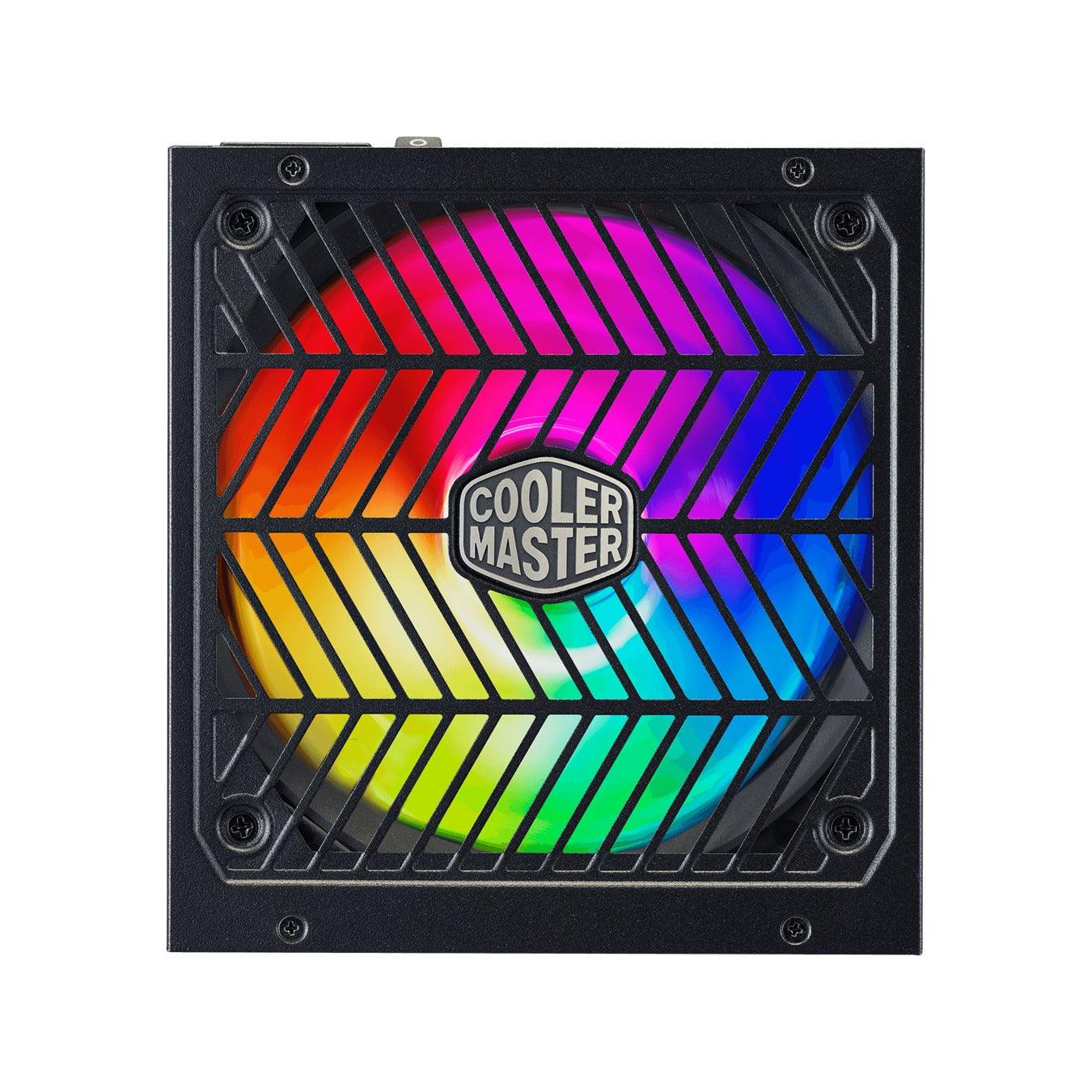

Quiet ARGB 135mm silent Fan

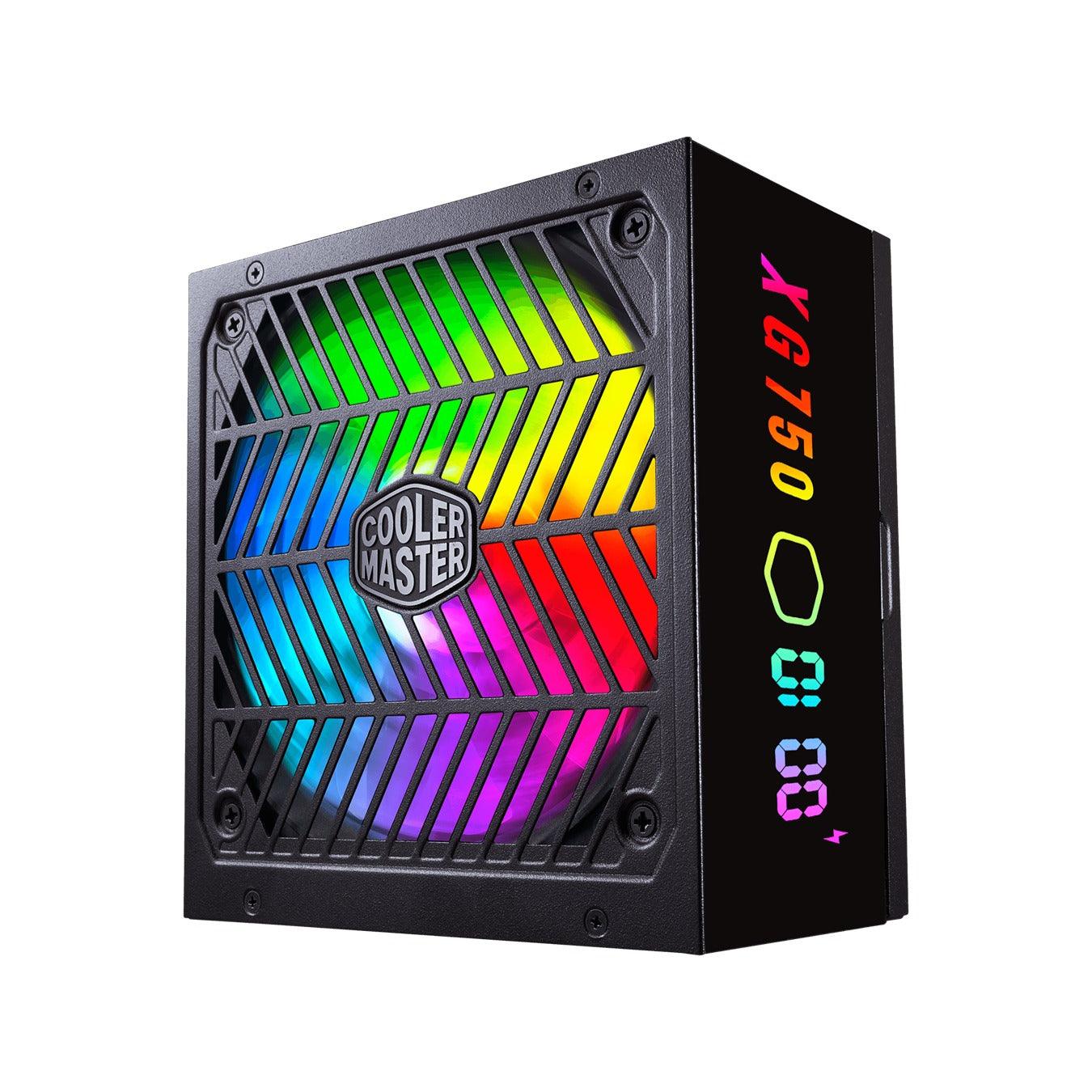

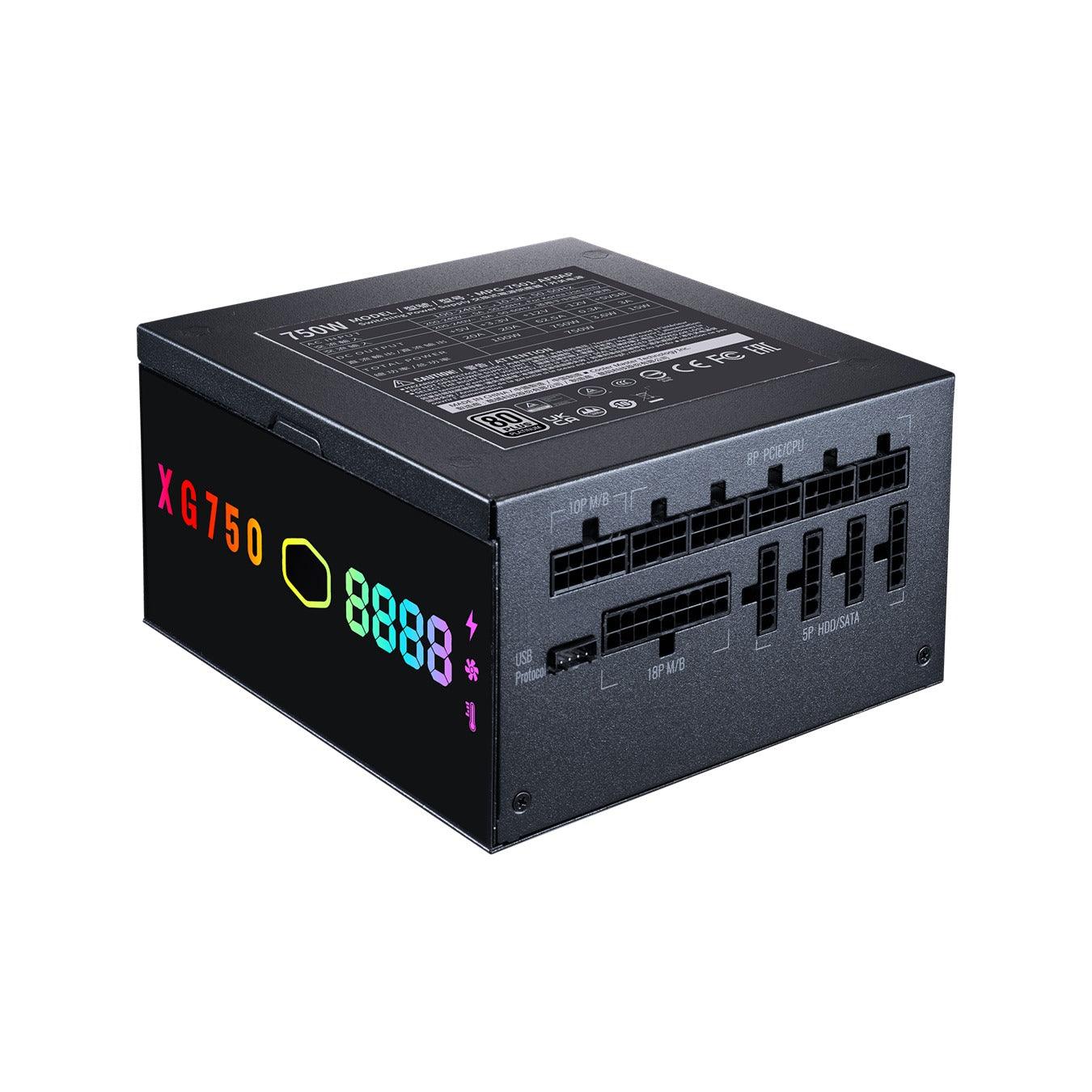

Built-in Information Display Panel
Full-Modular Cabling with 100% Japanese In-Line Capacitors
10-Year Warranty
SPECIFICATIONS:
| Model | MPG-7501-AFBAP-X** |
| ATX Version | Intel ATX 12V Ver. 2.53 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 10-5A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 160 x 150 x 86 mm |
| Fan Size | 135mm |
| Fan Speed | 1800 RPM |
| Noise Level @ 100% | ≤ 25 dBA |
| Efficiency | ≥ 92% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Platinum |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥ 16ms |
| MTBF | >100,000 Hours |
| Protections | OPP, OVP, OCP, UVP, SCP, OTP, Surge and Inrush Protection |
| Regulatory | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, UKCA |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 12 |

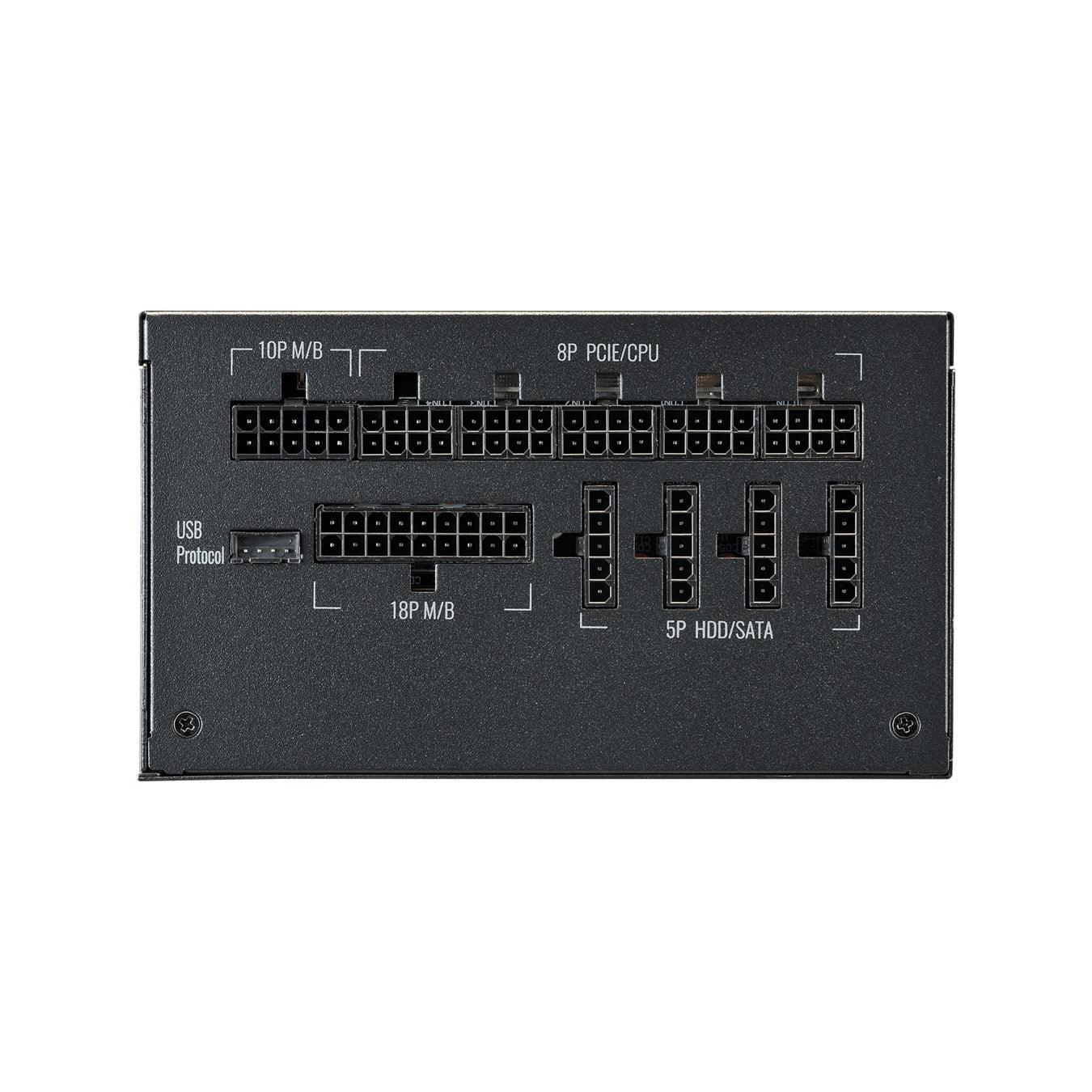

| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 4 |
| USB Protocol 10P | 1 |
| Series | XG Series |
| 80 Plus | Platinum |
| Modular | Full Modular |
| Wattage | 500 to 750W |
$134.39
Cooler Master XG750 Plus Platinum ATX Full Modular ARGB Power Supply—
$134.39
Description
XG750 PLUS PLATINUM
FULL MODULAR 80 PLUS PLATINUM ARGB POWER SUPPLY WITH DIGITAL OPTIONS
Intel ATX 12V Version 2.53
80 PLUS Platinum Certified
Quiet ARGB 135mm silent Fan
Built-in Information Display Panel
Full-Modular Cabling with 100% Japanese In-Line Capacitors
10-Year Warranty
SPECIFICATIONS:
| Model | MPG-7501-AFBAP-X** |
| ATX Version | Intel ATX 12V Ver. 2.53 |
| PFC | Active PFC |
| Input Voltage | 100-240V |
| Input Current | 10-5A |
| Input Frequency | 50-60Hz |
| Dimensions (L x W x H) | 160 x 150 x 86 mm |
| Fan Size | 135mm |
| Fan Speed | 1800 RPM |
| Noise Level @ 100% | ≤ 25 dBA |
| Efficiency | ≥ 92% @ Typical Load |
| 80 PLUS Rating | 80 PLUS Platinum |
| ErP 2014 Lot 3 | Yes |
| Operating Temperature | 0-50°C |
| Power Good Signal | 100 - 150 ms |
| Hold Up Time | ≥ 16ms |
| MTBF | >100,000 Hours |
| Protections | OPP, OVP, OCP, UVP, SCP, OTP, Surge and Inrush Protection |
| Regulatory | TUV, cTUVus, CE, BSMI, FCC, CCC, EAC, UKCA |
| ATX 24 Pin Connectors | 1 |
| EPS 4+4 Pin Connectors | 1 |
| EPS 8 Pin Connector | 1 |
| SATA Connectors | 12 |
| Peripheral 4 Pin Connectors | 4 |
| PCI-e 6+2 Pin Connectors | 4 |
| USB Protocol 10P | 1 |
| Series | XG Series |
| 80 Plus | Platinum |
| Modular | Full Modular |
| Wattage | 500 to 750W |
