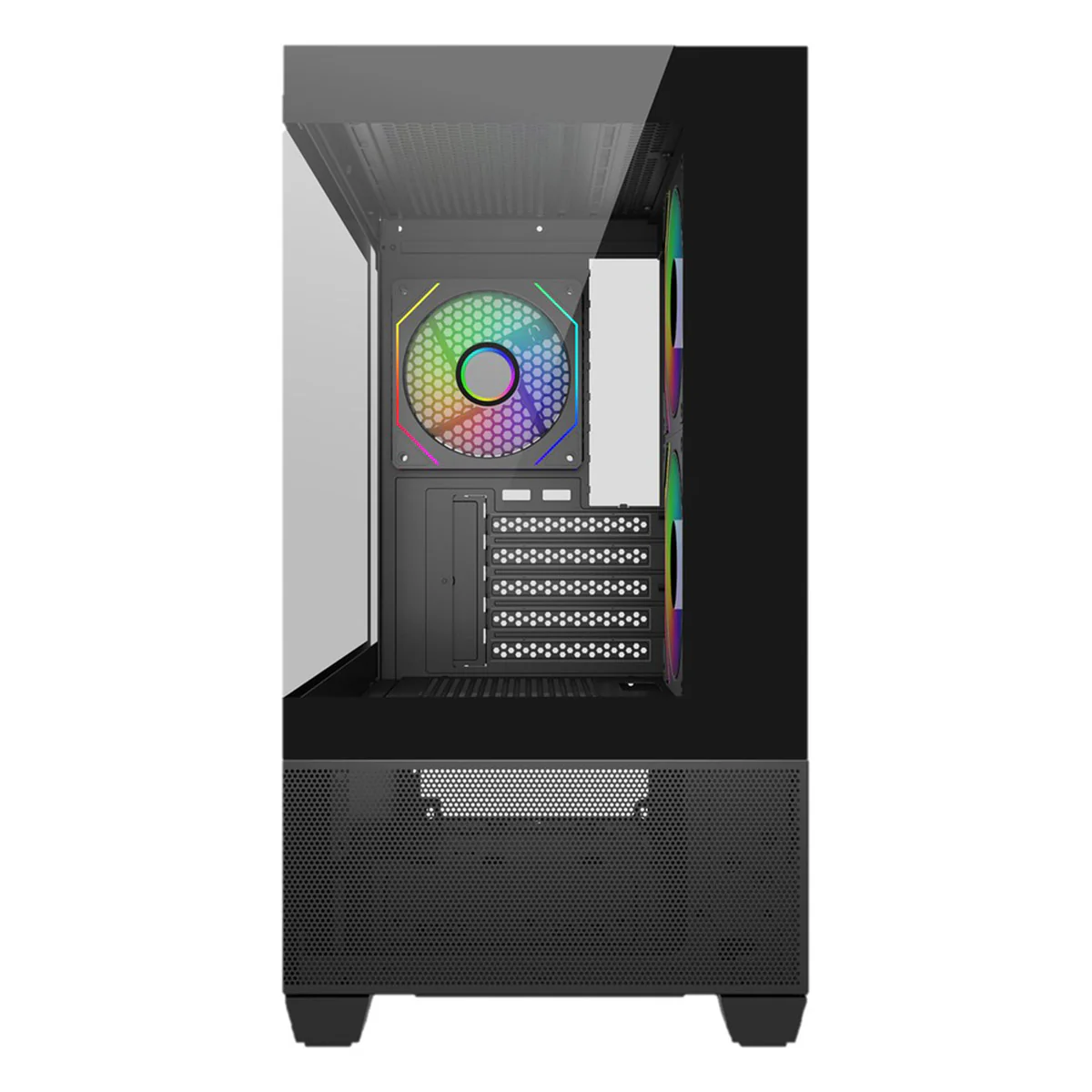

Cooler Master Elite 490 Tempered Glass mATX Case (Black, White)
Compact Build, Bold Capabilities
Elite 490
The Elite 490 delivers a clean, modern aesthetic in a space-efficient mATX form factor. Featuring dual tempered glass panels on the front and side, it offers a wide, uninterrupted view of your build’s lighting and hardware. Despite its compact size, the Elite 490 supports full-sized cooling solutions with up to 360mm radiator compatibility and room for 9 fans—perfect for minimalist setups that demand performance.
Specification:
| Model Number | Black: E490-KHNN-S00, White: E490-WHNN-S00 |
|---|---|
| Color(s) | Black / White |
| Materials - Front Panel | Tempered Glass |
| Material - Side Panel (Left) | Tempered Glass |
| Material - Side Panel (Right) | Steel |
| Dimensions (L x W x H) | 434 x 218 x 414 mm (Incl. Protrusions), 430 x 218 x 395 mm (Excl. Protrusions) |
| Volume | 39.16 L (Liters Incl. Protrusions) |
| Motherboard Support | ITX / Micro ATX |
| Expansion Slots | 5 |
| 5.25" Drive Bays | 0 |
| 3.5" Drive Bays | 1 (Max. 2) |
| 2.5" Drive Bays | 1 |
| I/O Panel - USB Ports | 1 x USB Type C 20Gbps, 2 x USB 3.0 |
| I/O Panel - Audio In / Out | 1x 3.5mm Combo |
| Pre-installed Fans - Rear | 1x 120mm ARGB PWM |
| Pre-installed Fans - Side Mount | 2x 120mm ARGB PWM reverse fan |
| Fan Support - Top | 2x 140mm / 3x 120mm |
| Fan Support - Rear | 1x 120mm |
| Fan Support - Side Mount | 2x 120mm |
| Fan Support - Bottom | 3x 120mm |
| Radiator Support - Top | 120 / 240 / 360 (Max height 45mm) |
| Radiator Support - Bottom | 120 / 240 / 360mm |
| Radiator Support - Side Mount | 120 / 240mm |
| Clearance - CPU Cooler | 170mm |
| Clearance - PSU | 250mm |
| Clearance - Graphics Card | 425mm |
| Power Supply Support | ATX |
| Size | Mini Tower |
| Series | Elite Series |
Description
Compact Build, Bold Capabilities
Elite 490
The Elite 490 delivers a clean, modern aesthetic in a space-efficient mATX form factor. Featuring dual tempered glass panels on the front and side, it offers a wide, uninterrupted view of your build’s lighting and hardware. Despite its compact size, the Elite 490 supports full-sized cooling solutions with up to 360mm radiator compatibility and room for 9 fans—perfect for minimalist setups that demand performance.
Specification:
| Model Number | Black: E490-KHNN-S00, White: E490-WHNN-S00 |
|---|---|
| Color(s) | Black / White |
| Materials - Front Panel | Tempered Glass |
| Material - Side Panel (Left) | Tempered Glass |
| Material - Side Panel (Right) | Steel |
| Dimensions (L x W x H) | 434 x 218 x 414 mm (Incl. Protrusions), 430 x 218 x 395 mm (Excl. Protrusions) |
| Volume | 39.16 L (Liters Incl. Protrusions) |
| Motherboard Support | ITX / Micro ATX |
| Expansion Slots | 5 |
| 5.25" Drive Bays | 0 |
| 3.5" Drive Bays | 1 (Max. 2) |
| 2.5" Drive Bays | 1 |
| I/O Panel - USB Ports | 1 x USB Type C 20Gbps, 2 x USB 3.0 |
| I/O Panel - Audio In / Out | 1x 3.5mm Combo |
| Pre-installed Fans - Rear | 1x 120mm ARGB PWM |
| Pre-installed Fans - Side Mount | 2x 120mm ARGB PWM reverse fan |
| Fan Support - Top | 2x 140mm / 3x 120mm |
| Fan Support - Rear | 1x 120mm |
| Fan Support - Side Mount | 2x 120mm |
| Fan Support - Bottom | 3x 120mm |
| Radiator Support - Top | 120 / 240 / 360 (Max height 45mm) |
| Radiator Support - Bottom | 120 / 240 / 360mm |
| Radiator Support - Side Mount | 120 / 240mm |
| Clearance - CPU Cooler | 170mm |
| Clearance - PSU | 250mm |
| Clearance - Graphics Card | 425mm |
| Power Supply Support | ATX |
| Size | Mini Tower |
| Series | Elite Series |
