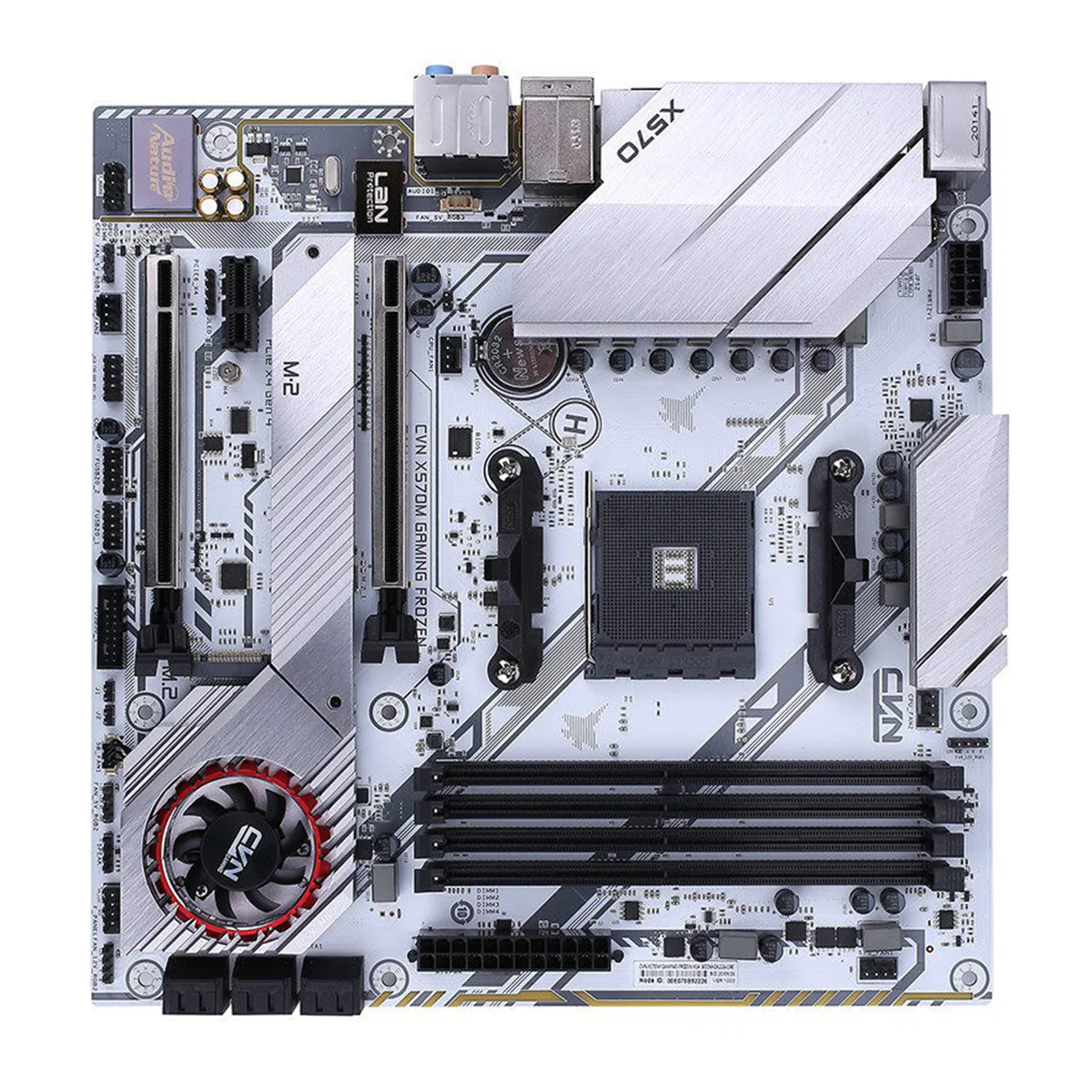

Colorful CVN X570M Gaming Frozen V14 AM4 Motherboard
CVN X570M GAMING FROZEN V14
Feature Highlights:
◆Supports AMD AM4 socket Ryzen 2000 and 3000 series Processors◆Supports Dual Channel DDR4 memory
*when using Ryzen 2000 series processor,support 2933/2800/2666/ 2400/2133MHZ memory
*when using Ryzen 3000 series processor,support 4000+(OC)/3800(OC)/3600(OC)/3200/3000/2933/2800/2666/2400/2133MHZ memory
*Warm Tip: Memory Overclocking also depends on the performance of the CPU and the memory itself
◆6*SATA3.0 ports
◆2*M.2 slots
*Support MSATA and PCI-e Gen4 x4 SSD
◆RTL8111H 1000M LAN chipset
◆Onboard 8-channel audio chipset
◆DP+HDMI ports
◆2*4PIN 12V RGB LED headers
◆2*3PIN 5V RGB LED headers
◆2*USB3.1 GEN2(TYPE-A) ,6*USB3.1 GEN1(5*TYPE-A,1*TYPE-C) & 6*USB2.0 ports(include headers)
◆misty-white PCB technology
◆Support PCI Express4.0 standard and 2-Way AMD CrossFire technology
Specification:
| Model | CVN X570M GAMING FROZEN V14 |
|---|---|
| Product Series | AMD chipset,CVN series |
| Chipset | AMD X570 |
| Processor | support AMD AM4 socket Ryzen 2000 and 3000 series processor |
| Memory | 4 DIMM slots,Support dual channel DDR4 memory,when using Ryzen 2000 series processor,support 2933/2800/2666/ 2400/2133MHZ memory,when using Ryzen 3000 series processor,support DDR4 4000+(OC)/3800(OC)/3600(OC)/3200/3000/2933/2800/2666/2400/2133MHZ memory |
| Graphics Support | 1*PCI Express4.0X16,1*PCI Express4.0X4 slots(support 2-Way AMD CrossFire™) |
| SATA Ports | 6*SATA3.0 6Gb/s ports |
| Board I/O | IO:1*PS2,2*USB2.0,1*HDMI,1*DP,4*USB3.1 GEN1（3*TYPE-A & 1*TYPE-C）,2*USB3.1 GEN2 TYPE-A ports.1*RJ45 1000M LAN,1*6audio ports.Onboard：1*COM,2*USB2.0,1*USB3.1 GEN1 TYPE-A |
| Expansion Slots | 1*PCI Express4.0x1 and 2*M.2(support MSATA and PCI-e Gen4 x4 SSD) slots |
| BIOS | 256M UEFI |
| Power Management | support 125W processors |
| Hardware Monitor | CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring |
| LAN | RTL8111H 1000M LAN chipset |
| Audio | ALC892 8-channel audio chipset |
| Configuration | 245*245mm mATX |
| Other Features | Support ACPI S3/S4/S5/G3;Support USB KB/MS wake-up;Support PS2 KB/MS wake-up;Support phone call startup, timing boot, network S5 wake-up |
$43.62
Original: $145.40
-70%Colorful CVN X570M Gaming Frozen V14 AM4 Motherboard—
$145.40
$43.62
Description
CVN X570M GAMING FROZEN V14
Feature Highlights:
◆Supports AMD AM4 socket Ryzen 2000 and 3000 series Processors◆Supports Dual Channel DDR4 memory
*when using Ryzen 2000 series processor,support 2933/2800/2666/ 2400/2133MHZ memory
*when using Ryzen 3000 series processor,support 4000+(OC)/3800(OC)/3600(OC)/3200/3000/2933/2800/2666/2400/2133MHZ memory
*Warm Tip: Memory Overclocking also depends on the performance of the CPU and the memory itself
◆6*SATA3.0 ports
◆2*M.2 slots
*Support MSATA and PCI-e Gen4 x4 SSD
◆RTL8111H 1000M LAN chipset
◆Onboard 8-channel audio chipset
◆DP+HDMI ports
◆2*4PIN 12V RGB LED headers
◆2*3PIN 5V RGB LED headers
◆2*USB3.1 GEN2(TYPE-A) ,6*USB3.1 GEN1(5*TYPE-A,1*TYPE-C) & 6*USB2.0 ports(include headers)
◆misty-white PCB technology
◆Support PCI Express4.0 standard and 2-Way AMD CrossFire technology
Specification:
| Model | CVN X570M GAMING FROZEN V14 |
|---|---|
| Product Series | AMD chipset,CVN series |
| Chipset | AMD X570 |
| Processor | support AMD AM4 socket Ryzen 2000 and 3000 series processor |
| Memory | 4 DIMM slots,Support dual channel DDR4 memory,when using Ryzen 2000 series processor,support 2933/2800/2666/ 2400/2133MHZ memory,when using Ryzen 3000 series processor,support DDR4 4000+(OC)/3800(OC)/3600(OC)/3200/3000/2933/2800/2666/2400/2133MHZ memory |
| Graphics Support | 1*PCI Express4.0X16,1*PCI Express4.0X4 slots(support 2-Way AMD CrossFire™) |
| SATA Ports | 6*SATA3.0 6Gb/s ports |
| Board I/O | IO:1*PS2,2*USB2.0,1*HDMI,1*DP,4*USB3.1 GEN1（3*TYPE-A & 1*TYPE-C）,2*USB3.1 GEN2 TYPE-A ports.1*RJ45 1000M LAN,1*6audio ports.Onboard：1*COM,2*USB2.0,1*USB3.1 GEN1 TYPE-A |
| Expansion Slots | 1*PCI Express4.0x1 and 2*M.2(support MSATA and PCI-e Gen4 x4 SSD) slots |
| BIOS | 256M UEFI |
| Power Management | support 125W processors |
| Hardware Monitor | CPU Fan speed Controlled，SYSTEM Fan speed Monitoring,CPU Temperature Monitoring，System Temperature Monitoring，and Voltage monitoring |
| LAN | RTL8111H 1000M LAN chipset |
| Audio | ALC892 8-channel audio chipset |
| Configuration | 245*245mm mATX |
| Other Features | Support ACPI S3/S4/S5/G3;Support USB KB/MS wake-up;Support PS2 KB/MS wake-up;Support phone call startup, timing boot, network S5 wake-up |
