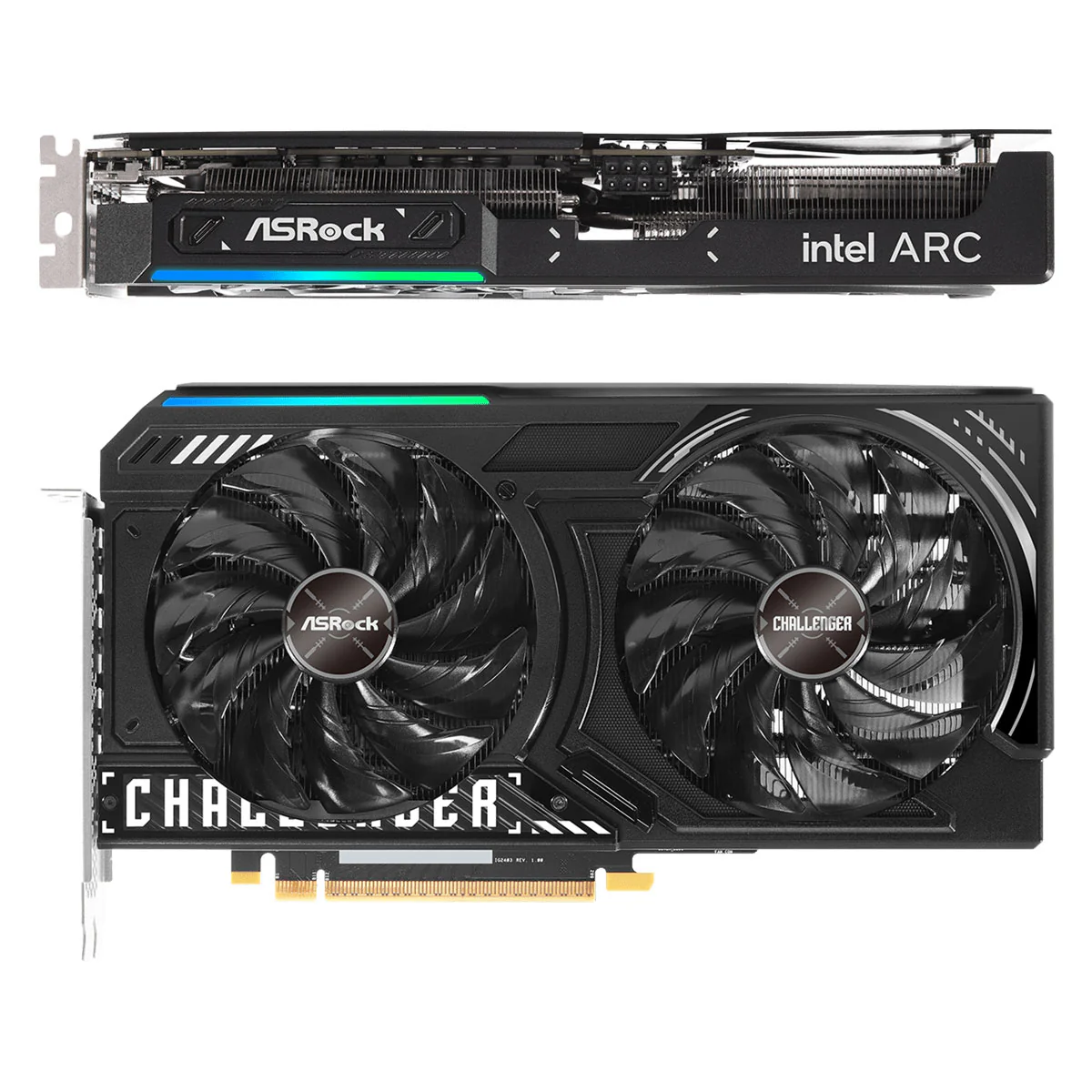

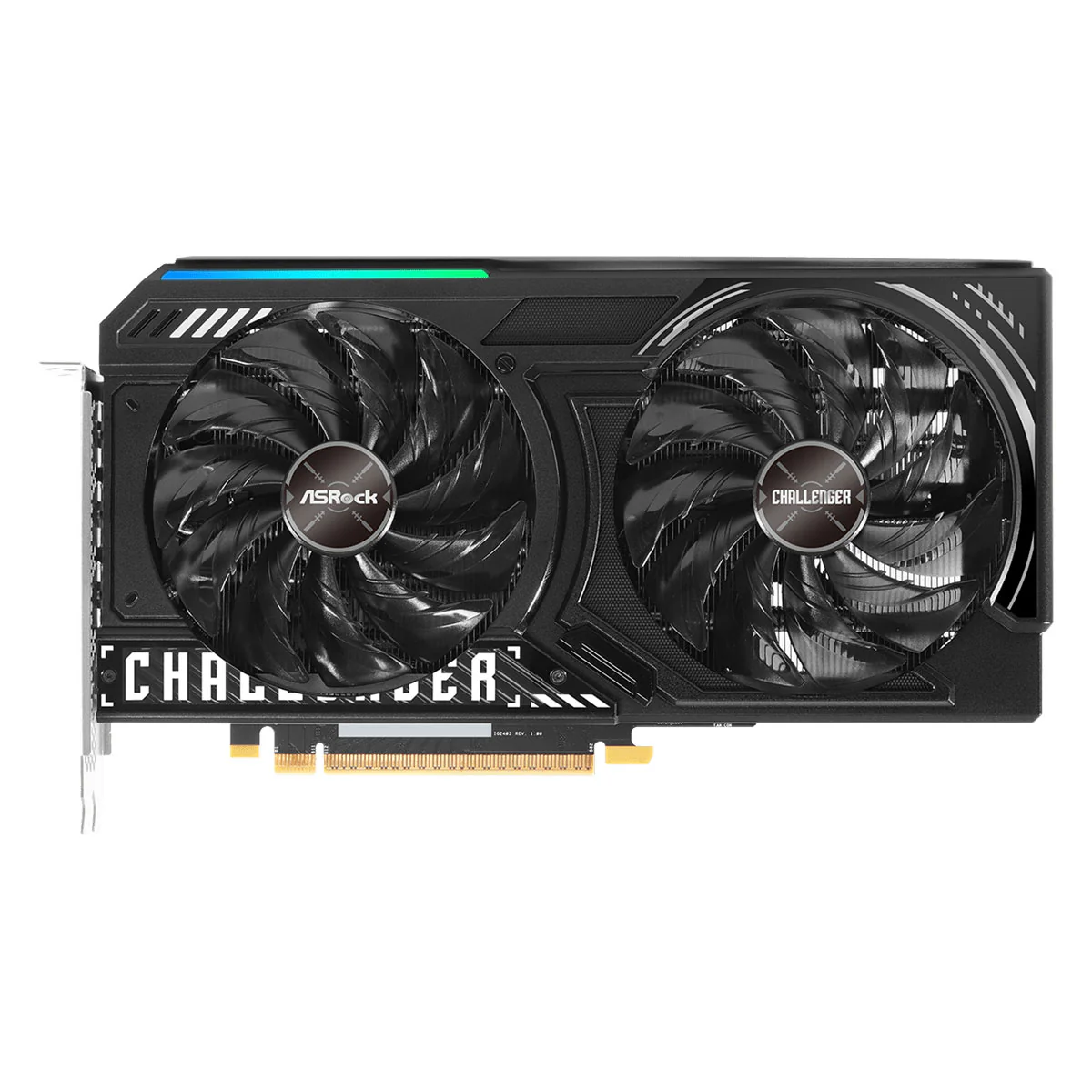

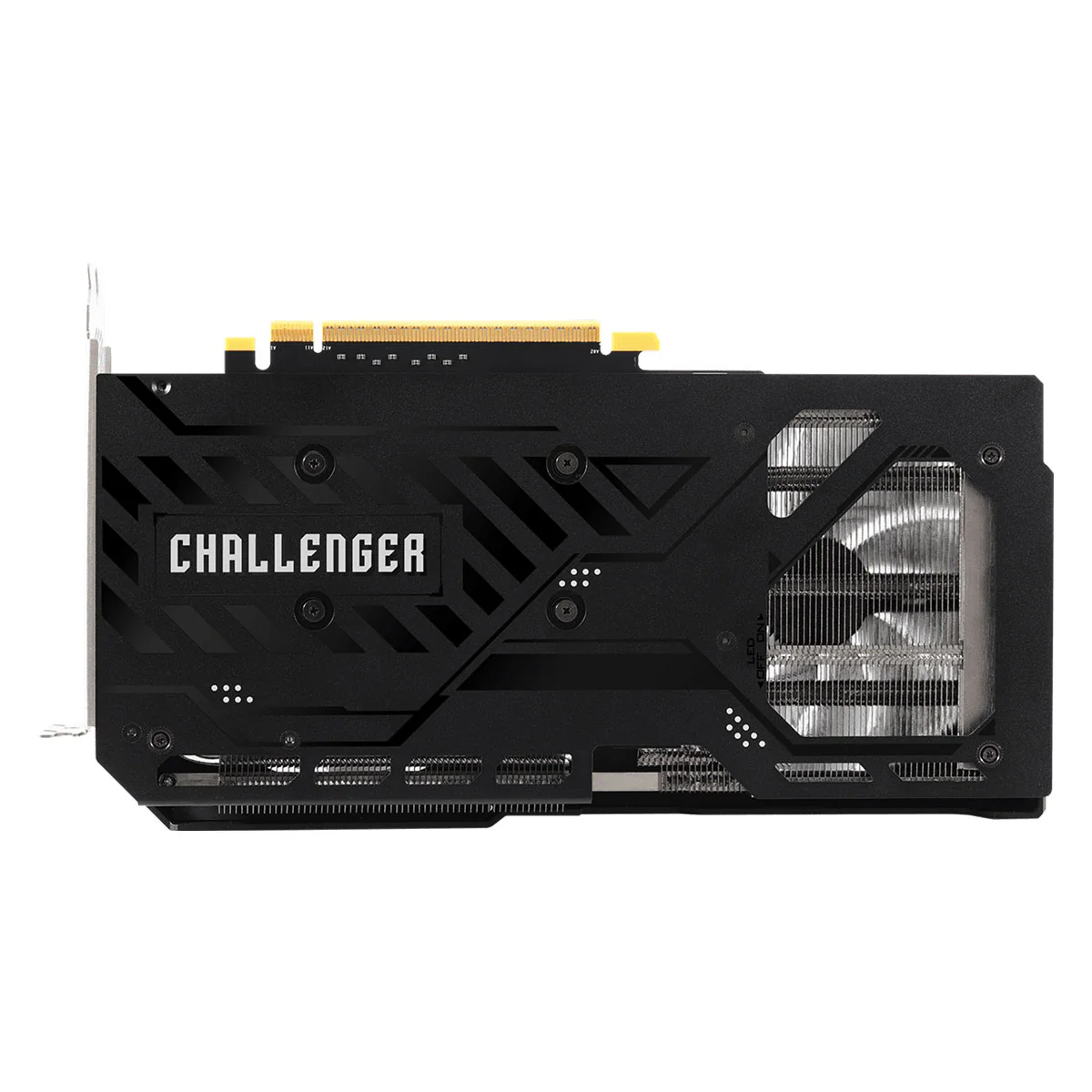

ASRock Intel Arc B580 Challenger 12GB OC GDDR6 Graphics Card
SPECIFICATION
| Graphics Engine | Intel Arc B580 |
| Bus Standard | PCI Express4.0 x 8 |
| DirectX | - 12 Ultimate |
| OpenGL | -4.6 |
| Memory | - GDDR6 12GB |
| Engine Clock | - 2740 MHz |
| Intel XMX Engines | -160 |
| Compute Units | -20 |
| Memory Clock | - 19 Gbps |
| Memory Interface | - 192-bit |
| Resolution | - Digital Max Resolution: 7680 x 4320 |
| Interface | - 1 x DisplayPort 2.1 (Primary, up to UHBR13.5) |
| - 2 x DisplayPort 2.1 (Up to UHBR10) | |
| - 1 x HDMI 2.1a | |
| HDCP | - Yes |
| Multi-view | -4 |
| Recommended PSU | - 650W |
| Power Connector | - 1 x 8-pin |
| Accessories | - 1 x Quick Installation Guide |
| Dimensions | - 249 x 132 x 41mm, 2-slot |
| Net Weight | - 720 g |
$302.48
ASRock Intel Arc B580 Challenger 12GB OC GDDR6 Graphics Card—
$302.48
Description
SPECIFICATION
| Graphics Engine | Intel Arc B580 |
| Bus Standard | PCI Express4.0 x 8 |
| DirectX | - 12 Ultimate |
| OpenGL | -4.6 |
| Memory | - GDDR6 12GB |
| Engine Clock | - 2740 MHz |
| Intel XMX Engines | -160 |
| Compute Units | -20 |
| Memory Clock | - 19 Gbps |
| Memory Interface | - 192-bit |
| Resolution | - Digital Max Resolution: 7680 x 4320 |
| Interface | - 1 x DisplayPort 2.1 (Primary, up to UHBR13.5) |
| - 2 x DisplayPort 2.1 (Up to UHBR10) | |
| - 1 x HDMI 2.1a | |
| HDCP | - Yes |
| Multi-view | -4 |
| Recommended PSU | - 650W |
| Power Connector | - 1 x 8-pin |
| Accessories | - 1 x Quick Installation Guide |
| Dimensions | - 249 x 132 x 41mm, 2-slot |
| Net Weight | - 720 g |
