Asrock B550M Phantom Gaming 4 DDR4 Motherboard
B550M
Phantom Gaming 4
- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
- 8 Power Phase Design, Digi Power
- Supports DDR4 4733+ (OC)
- 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
- Supports AMD CrossFireX™
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
- 4 x SATA3, 1 x Hyper M.2(PCIe Gen4x4), 1 x M.2(PCIe Gen3x2 & SATA3)
- 8 x USB 3.2 Gen1 (4 Front, 4 Rear)
- 6 x USB 2.0 (4 Front, 2 Rear)
- Realtek Gigabit LAN
*Not compatible with AMD Athlon™ Processors.
Specifications:
| Unique Feature | ASRock Super Alloy, Premium 50A Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB, 2oz Copper PCB, ASRock Hyper M.2 (PCIe Gen4x4), ASRock Full Spike Protection, ASRock Live Update & APP Shop |
| CPU | Supports AMD AM4 Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors, Digi Power design, 8 Power Phase design |
| Chipset | AMD B550 |
| Memory | Dual Channel DDR4, 4 DIMM Slots, up to 128GB, Various speeds based on CPU/APU |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support, Plug and Play, ACPI 5.1, SMBIOS 2.3 |
| Graphics | Integrated AMD Radeon Vega, HDMI 2.1 (4K 60Hz), DP 1.4 (5K 120Hz), HDR, HDCP 2.3 |
| Audio | 7.1 CH HD Audio (Realtek ALC887/897), Surge Protection |
| LAN | Gigabit LAN, Realtek RTL8111H, Wake-On-LAN, ESD, Energy Efficient Ethernet |
| Slots | 2 x PCIe x16, 1 x PCIe x1, AMD CrossFireX supported |
| Storage | 4 x SATA3, 2 x M.2 (1 Hyper Gen4/Gen3, 1 Gen3 x2), RAID 0/1/10 |
| Connector | TPM, LED headers, Fan connectors, ATX 24/8 pin, USB headers |

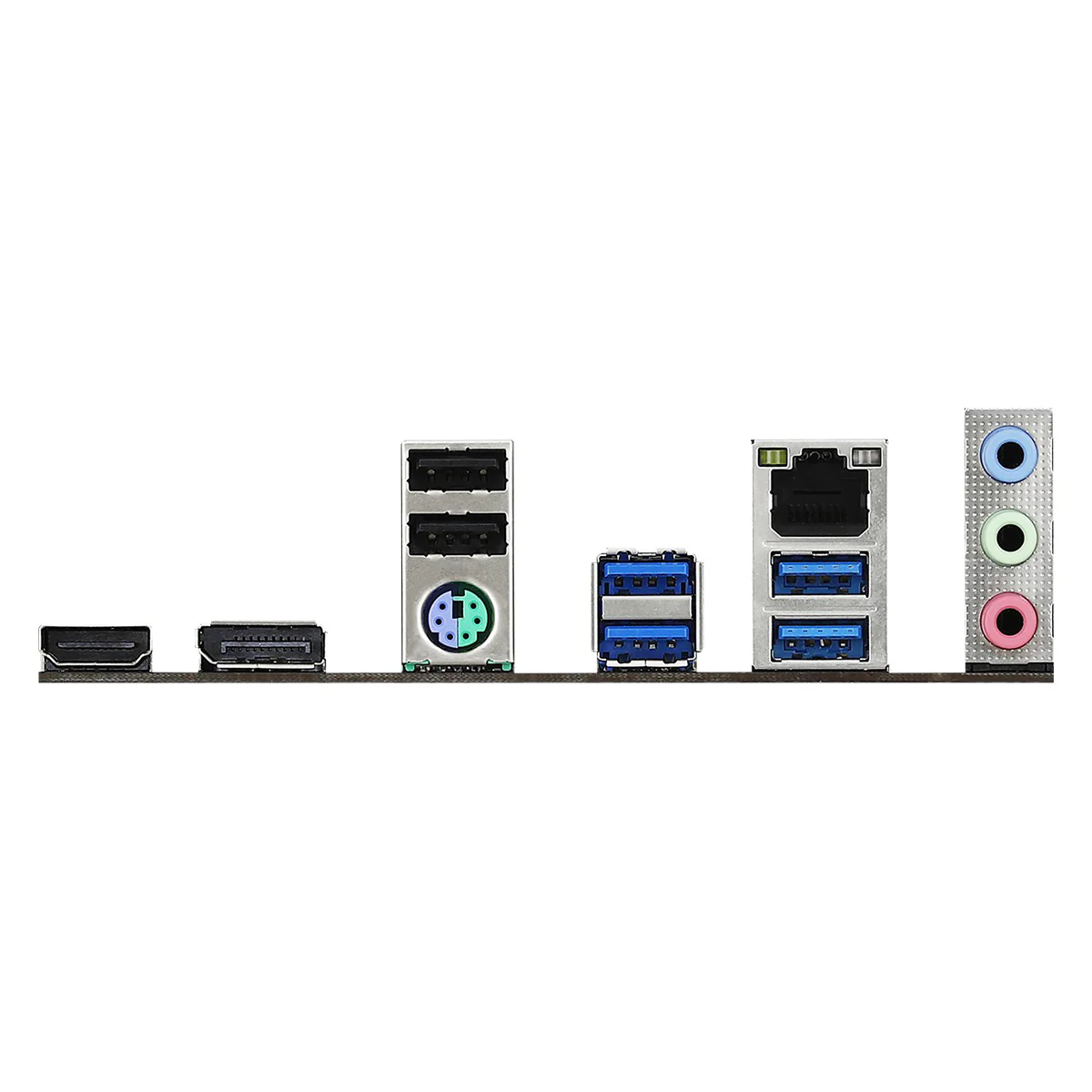

| Rear Panel I/O | PS/2, HDMI, DP, 4x USB 3.2, 2x USB 2.0, LAN, HD Audio Jacks |
| Software/UEFI | ASRock A-Tuning, Polychrome SYNC, Instant Flash |
| Accessories | I/O Shield, 2 x SATA cables, 2 x M.2 Screws |
| Monitoring | Temp, Fan speed, Voltage monitoring |
| Form Factor | Micro ATX (24.4cm x 24.4cm), 2oz Copper PCB |
| OS | Windows 10/11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready |
$27.20
Original: $90.68
-70%Asrock B550M Phantom Gaming 4 DDR4 Motherboard—
$90.68
$27.20
Description
B550M
Phantom Gaming 4
- Supports AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors*
- 8 Power Phase Design, Digi Power
- Supports DDR4 4733+ (OC)
- 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16, 1 x PCIe 3.0 x1
- Supports AMD CrossFireX™
- Graphics Output Options: HDMI, DisplayPort
- 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec)
- 4 x SATA3, 1 x Hyper M.2(PCIe Gen4x4), 1 x M.2(PCIe Gen3x2 & SATA3)
- 8 x USB 3.2 Gen1 (4 Front, 4 Rear)
- 6 x USB 2.0 (4 Front, 2 Rear)
- Realtek Gigabit LAN
*Not compatible with AMD Athlon™ Processors.
Specifications:
| Unique Feature | ASRock Super Alloy, Premium 50A Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB, 2oz Copper PCB, ASRock Hyper M.2 (PCIe Gen4x4), ASRock Full Spike Protection, ASRock Live Update & APP Shop |
| CPU | Supports AMD AM4 Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors, Digi Power design, 8 Power Phase design |
| Chipset | AMD B550 |
| Memory | Dual Channel DDR4, 4 DIMM Slots, up to 128GB, Various speeds based on CPU/APU |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support, Plug and Play, ACPI 5.1, SMBIOS 2.3 |
| Graphics | Integrated AMD Radeon Vega, HDMI 2.1 (4K 60Hz), DP 1.4 (5K 120Hz), HDR, HDCP 2.3 |
| Audio | 7.1 CH HD Audio (Realtek ALC887/897), Surge Protection |
| LAN | Gigabit LAN, Realtek RTL8111H, Wake-On-LAN, ESD, Energy Efficient Ethernet |
| Slots | 2 x PCIe x16, 1 x PCIe x1, AMD CrossFireX supported |
| Storage | 4 x SATA3, 2 x M.2 (1 Hyper Gen4/Gen3, 1 Gen3 x2), RAID 0/1/10 |
| Connector | TPM, LED headers, Fan connectors, ATX 24/8 pin, USB headers |
| Rear Panel I/O | PS/2, HDMI, DP, 4x USB 3.2, 2x USB 2.0, LAN, HD Audio Jacks |
| Software/UEFI | ASRock A-Tuning, Polychrome SYNC, Instant Flash |
| Accessories | I/O Shield, 2 x SATA cables, 2 x M.2 Screws |
| Monitoring | Temp, Fan speed, Voltage monitoring |
| Form Factor | Micro ATX (24.4cm x 24.4cm), 2oz Copper PCB |
| OS | Windows 10/11 64-bit |
| Certifications | FCC, CE, ErP/EuP Ready |
