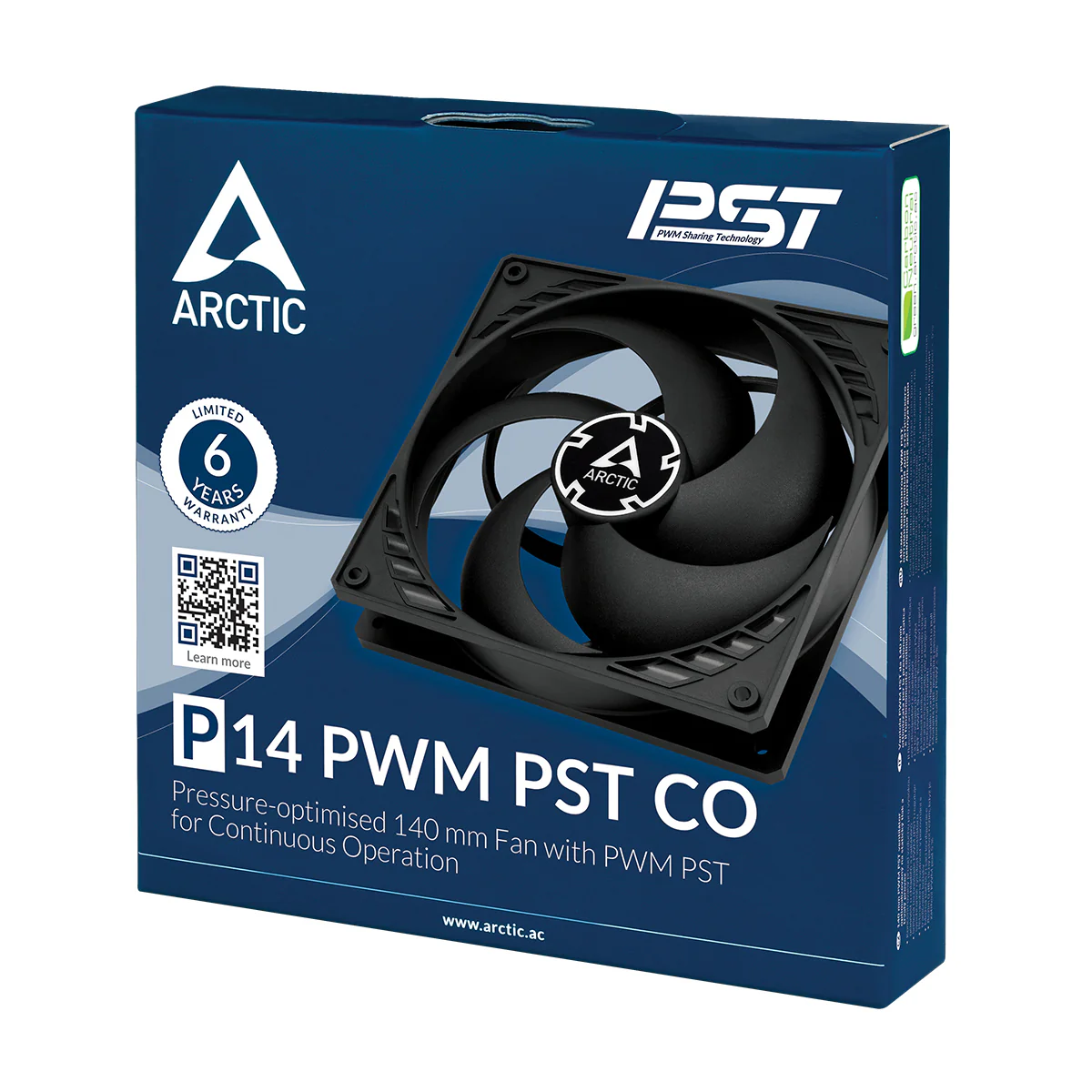

Arctic P14 PWM PST CO Pressure-Optimised 140mm Single Fan with PWM PST (Black) (ACFAN00126A)

Optimised for Static Pressure

During the development of the new P14 PWM PST CO, special emphasis was placed on a focused airstream and thus a high static pressure. The fan guarantees extremely efficient cooling, even with increased air resistance. Therefore, the P14 PWM PST CO is particularly suitable for use on heatsinks and radiators.





Fan Speed	200—1700 rpm PWM Controlled (0 rpm below 5 % PWM)
Airflow	72.80 cfm | 123.76 m³/h
Static Pressure	2.40 mmH2O
Noise Level	0.3 Sone
Operating Ambient Temperature	0—40 °C
Warranty	6 Years
Fan Frame	Standard
Control Type	PWM PST
Connector	4-Pin Connector + 4-Pin Socket
Fan Bearing	Dual Ball Bearing
Typical Voltage	12 V DC
Starting Voltage	3.9 V
Current | Voltage	0.12 A | 12 V DC
Cable Length	400 mm
Length	140 mm
Width	140 mm
Height	27 mm
Weight	194 g
